1990 Yamaha XT600E CA (XT600EAC) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1990 Yamaha XT600E CA (XT600EAC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

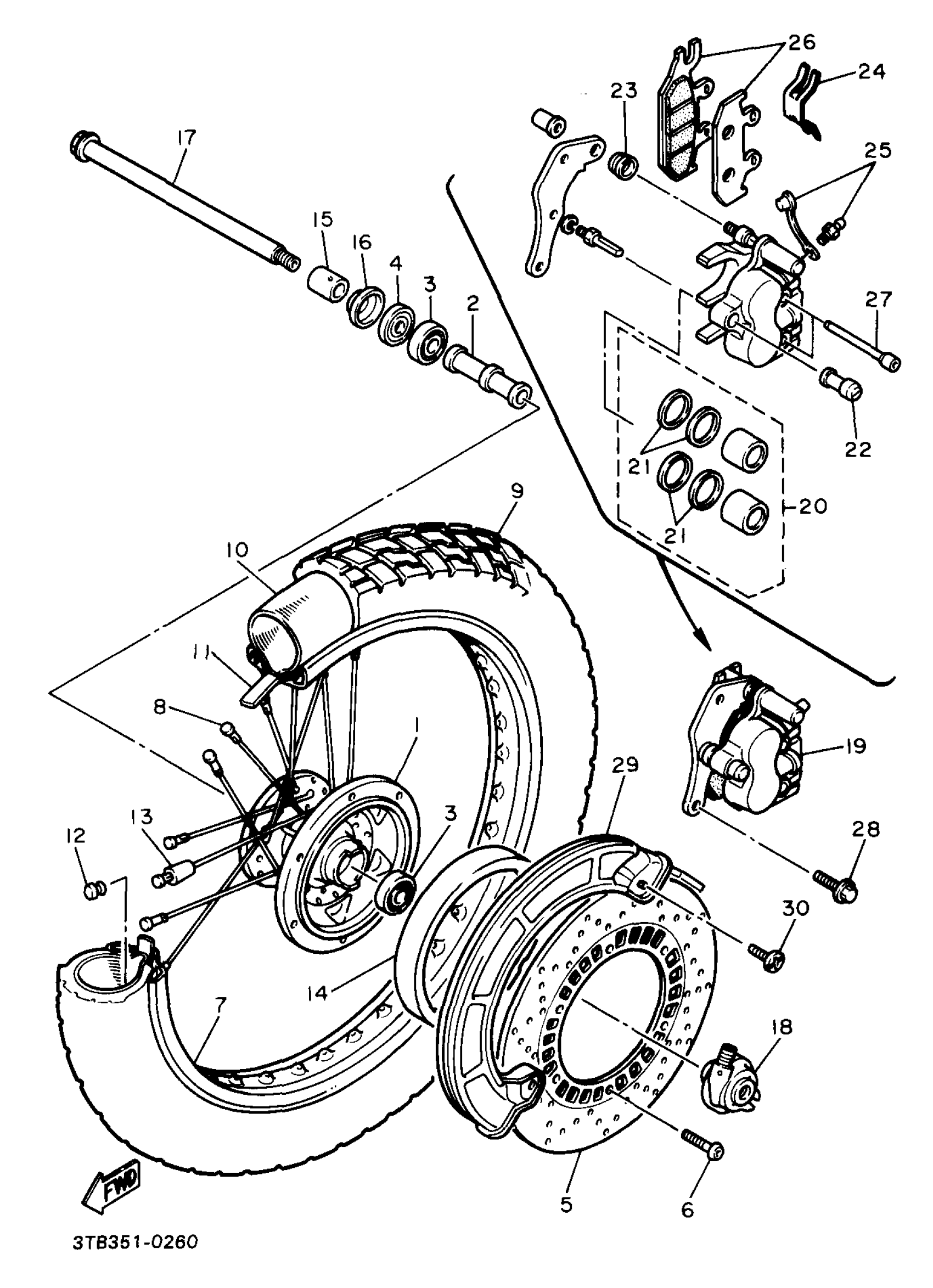

1990 Yamaha XT600E CA (XT600EAC) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

3TB-25111-00-98

1
Out of stock

2

SPACER (34L)

90560-15240-00

—

$16.40

In stock

3

BEARING

93306-20205-00

1

$32.63

In stock

4

OIL SEAL (23X)

93102-20281-00

1

$11.35

In stock

5

DISC, BRAKE

3TB-2582T-00-00

1
Out of stock

6

BOLT, BUTTON HEAD

92017-06016-00

1
Out of stock

7

RIM (1.85-21)

94418-21492-00

1
Out of stock

8

SPOKE SET, FRONT

3TB-25104-00-00

1
Out of stock

9

TIRE (MCS 90/90-21 54S TW41)

94109-213X0-00

1
Out of stock

10

TUBE 90190-21

94209-21229-00

—

$34.40

In stock

11

BAND, RIM (2A6)

94330-21084-00

1

$13.89

In stock

12

PLUG (10V)

90338-09130-00

1

$5.62

In stock

13

BALANCER, WHEEL

3HT-25398-00-00

1

$6.89

In stock

14

RING 2

3TB-25336-00-00

1
Out of stock

15

COLLAR (34L)

90387-152J3-00

1

$18.75

In stock

16

COVER, HUB DUST

322-25118-00-00

—

$16.17

In stock

17

AXLE, WHEEL

4GY-25181-00-00

—

$129.37

In stock

18

GEAR UNIT ASSY

34L-25190-01-00

—

$95.78

In stock

19

CALIPER ASSY (LEFT)

4PT-2580T-00-00

1
Out of stock

20

PISTON ASSY, CALIPER

3TB-W0057-00-00

—

$56.26

In stock

21

CALIPER SEAL KIT

3GD-W0047-00-00

—

$13.06

In stock

22

BOOT 2

1UY-25937-51-00

—

$12.27

In stock

23

BOOT, CALIPER

3JD-25917-00-00

—

$7.51

In stock

24

. SUPPORT, PAD

3TB-25919-00-00

1
Out of stock

25

BLEED SCREW KIT

36Y-W0048-00-00

—

$8.51

In stock

26

BRAKE PAD KIT

4PT-W0045-00-00

—

$60.99

In stock

27

PIN, PAD

3TB-25933-00-00

—

$16.35

In stock

28

BOLT, WASHER BASED(4KM)

90105-10778-00

—

$4.11

In stock

29

COVER 1

3TB-25715-00-00

1
Out of stock

30

SCREW(36F)

90149-06194-00

—

$3.05

In stock
