1990 Yamaha XT600E CA (XT600EAC) Rear Suspension Diagram

← All diagrams

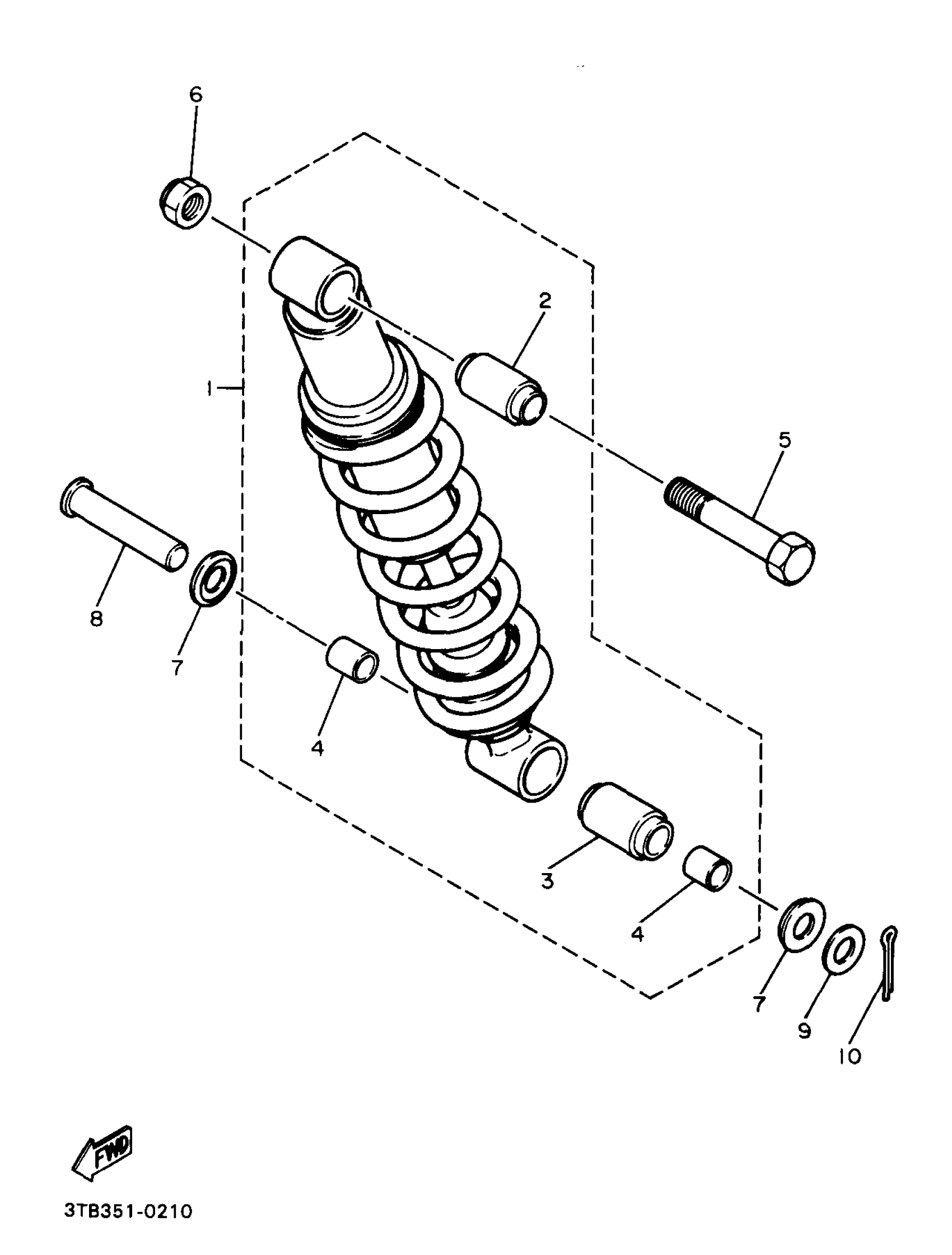

Find the part on the Rear Suspension diagram for your 1990 Yamaha XT600E CA (XT600EAC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha XT600E CA (XT600EAC) Rear Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHOCK ABSORBER ASY

3TB-22210-20-33

1
Out of stock

2

BUSH, REAR SHOCK ABSORBER

34L-22216-00-00

—
Out of stock

3

BUSH, REAR SHOCK ABSORBER

34L-22226-01-00

—

$18.25

In stock

4

BUSH, SOLID (34L)

90380-14130-00

—

$5.26

In stock

5

BOLT

90101-12295-00

1
Out of stock

6

NUT, U (4PM)

95617-12100-00

1

$3.69

In stock

7

COVER, THRUST 2

34L-22129-00-00

1
Out of stock

8

PIN, CLEVIS (34L)

90240-14106-00

1
Out of stock

9

WASHER

92990-14600-00

1

$6.31

In stock

10

PIN, COTTER

91490-30030-00

1

$7.15

In stock
