1982 Yamaha XT550 (XT550J) Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1982 Yamaha XT550 (XT550J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

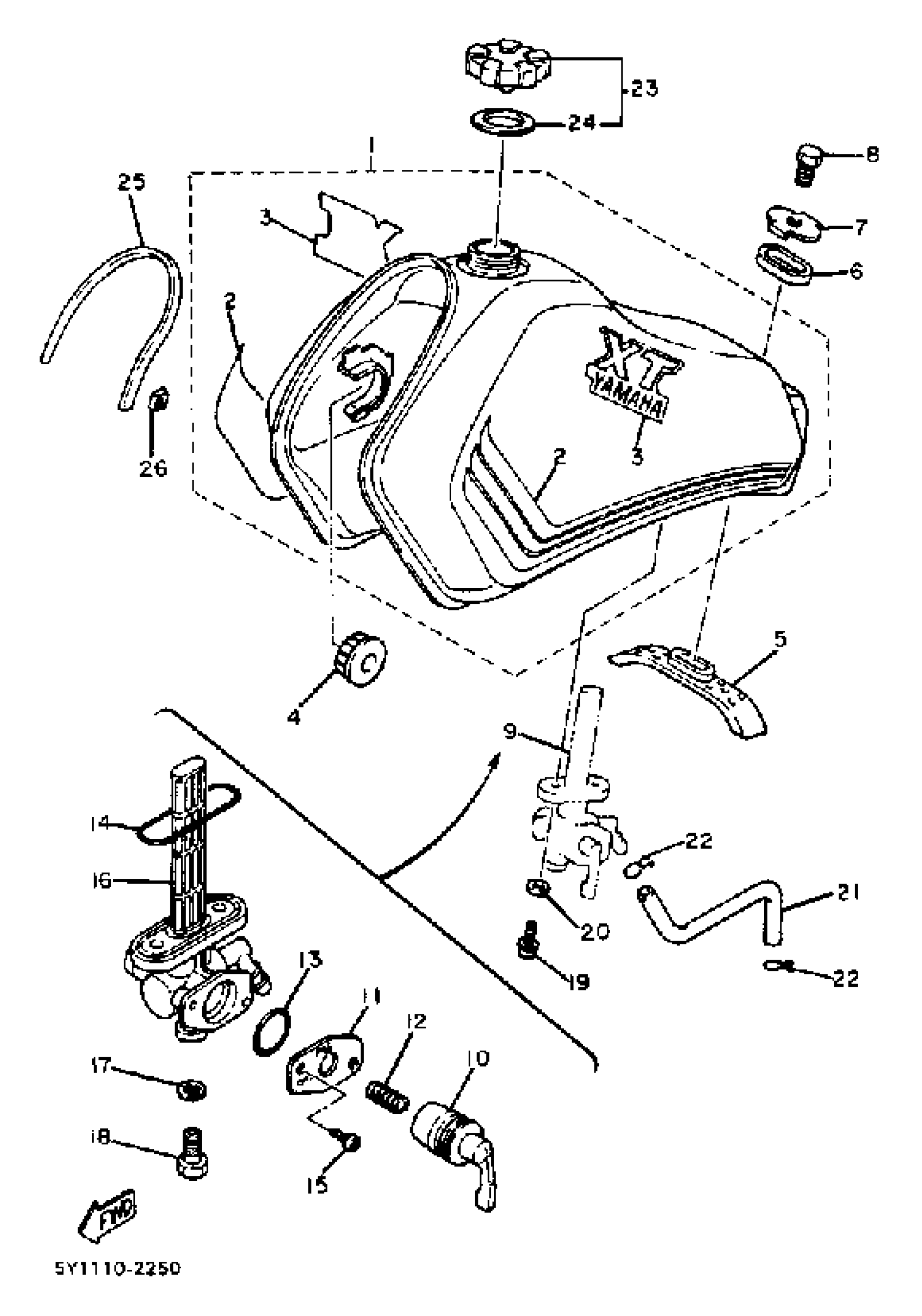

1982 Yamaha XT550 (XT550J) Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

5Y1-24110-00-01

1
Out of stock

2

. GRAPHIC SET

5Y1-24240-00-00

1
Out of stock

3

. EMBLEM 1

3Y1-24161-20-00

1
Out of stock

4

DAMPER, LOCATING

4H7-24181-00-00

1

$5.49

In stock

5

DAMPER, LOCATING 2

15A-24182-00-00

1
Out of stock

6

DAMPER, LOCATING 3

3Y6-24183-00-00

1
Out of stock

7

WASHER, SPECIAL

11H-24186-00-00

1
Out of stock

8

BOLT, HEXAGON

97017-08016-00

1
Out of stock

9

FUEL COCK ASSY 1

3FY-24500-01-00

1

$48.27

In stock

10

LEVER, COCK

(3Y1-24524-00-00)

1
Out of stock

11

PLATE, LVR FITTING

(3Y1-24525-00-00)

1
Out of stock

12

. SPRING

2W6-24529-00-00

1
Out of stock

13

O-RING

2N3-24528-00-00

—

$2.97

In stock

14

O-RING

2W6-24512-00-00

1

$6.72

In stock

15

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

16

NET, FILTER 1

(5Y1-24514-00-00)

1
Out of stock

17

GASKET, DRAIN PLUG

2G2-24522-00-00

—

$5.93

In stock

18

. PLUG, DRAIN

2G2-24543-00-00

1
Out of stock

19

SCREW 256241430000

90149-06011-00

—

$1.58

In stock

20

WASHER, PLATE(3MB)

90202-05187-00

—

$1.32

In stock

21

HOSE (L200)

90445-10752-00

—

$3.88

In stock

22

CLIP

90467-090A2-00

—

$2.51

In stock

23

CAP ASSY

3Y1-24610-01-00

—
Out of stock

24

. GASKET, CAP

5Y1-24612-00-00

1
Out of stock

25

PLATE, MOLD

5Y1-24189-00-00

1
Out of stock

26

CLIP

90468-03063-00

1
Out of stock
