1982 Yamaha XT550 (XT550J) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1982 Yamaha XT550 (XT550J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

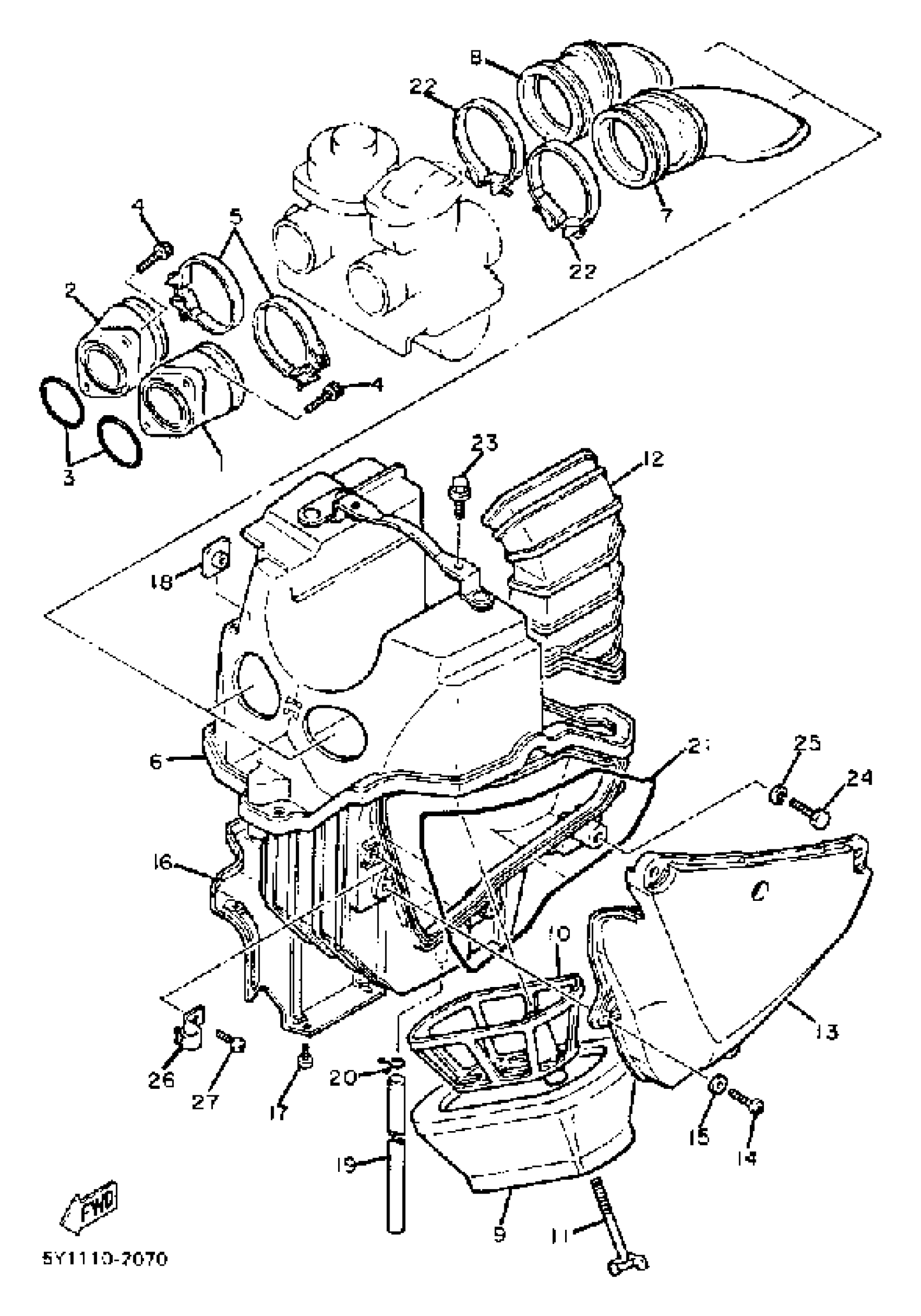

1982 Yamaha XT550 (XT550J) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 1

5Y1-13586-01-00

1
Out of stock

2

JOINT, CARBURETOR 2

5Y1-13596-01-00

1
Out of stock

3

O-RING(2TY)

93210-36769-00

1
Out of stock

4

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

5

HOSE CLAMP ASSY

90450-47002-00

1

$7.15

In stock

6

AIR CLNR CASE ASSEMBLY

5Y1-14401-01-00

1
Out of stock

7

JOINT, AIR CLNR 1

5Y1-14453-00-00

1
Out of stock

8

JOINT

5Y1-14454-00-00

1
Out of stock

9

ELEMENT, AIR CLEANER

5Y1-14451-01-00

1
Out of stock

10

GUIDE

5Y1-14458-00-00

1

$23.83

In stock

11

BOLT, WING

90122-06005-00

1

$10.05

In stock

12

DUCT

5Y1-14437-00-00

1
Out of stock

13

CAP, CLEANER CASE 1

5Y1-14412-00-00

1
Out of stock

14

SCREW, PAN

98517-06020-00

1
Out of stock

15

WASHER(6TA)

92907-06600-00

1

$0.78

In stock

16

PROTECTOR

5Y1-1442F-00-00

1
Out of stock

17

SCREW, TAPPING

97702-30508-00

1
Out of stock

18

PLATE, CLNR CS FTNG

4H7-14484-00-00

1
Out of stock

19

TUBE, FLEXIBLE(3NV)

91A21-07020-00

—

$8.95

In stock

20

CLIP

90467-090A2-00

—

$2.51

In stock

21

SEAL

1VJ-14462-00-00

—

$16.08

In stock

22

CLAMP HOSE 304144550000

90460-51059-00

—

$14.64

In stock

23

BOLT, FLANGE

95812-06010-00

—

$2.75

In stock

24

BOLT(21W)

97017-06035-00

—

$2.91

In stock

25

WASHER, SPRING

92907-06100-00

—
Out of stock

26

CLAMP 363154850100

90462-05005-00

—

$6.92

In stock

27

SCREW, TAPPING

(97701-50508-00)

1
Out of stock
