1978 Yamaha XT500 (XT500E) Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1978 Yamaha XT500 (XT500E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

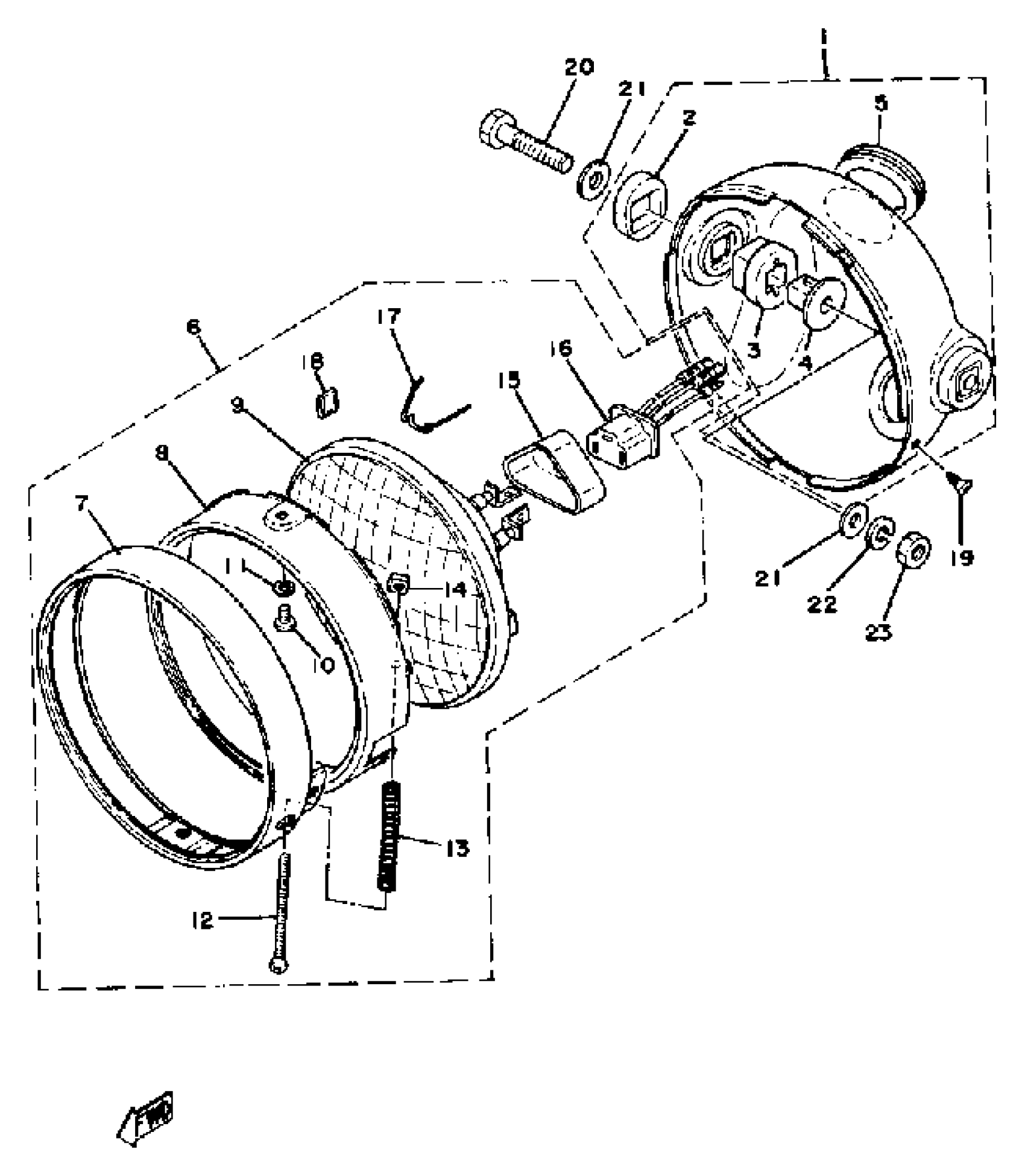

1978 Yamaha XT500 (XT500E) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSEMBLY, HEADLIGHT

(1E6-84130-60-33)

1
Out of stock

2

DAMPER, HEAD LAMP B

498-84164-60-00

1

$5.93

In stock

3

DAMPER, HEAD LAMP A

498-84163-60-00

1

$5.68

In stock

4

COLLAR, BODY FITTING

498-84145-60-00

1

$6.52

In stock

5

GROMMET, WIREHARNESS

214-84153-60-00

1
Out of stock

7

. RIM, HEADLIGHT

498-84115-60-00

1
Out of stock

8

. RING, RETAINING

498-84195-60-00

1
Out of stock

9

. LENS ASSEMBLY

2A6-84120-60-00

1
Out of stock

10

. SCREW

438-84194-60-00

1
Out of stock

11

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

12

. SCREW, RIM ADJUSTING

447-84331-61-00

1
Out of stock

13

SPRING, COMPRESSION (ITALY)

447-84332-60-00

1

$9.22

In stock

14

NUT, ADJUST

198-84334-60-00

1

$6.43

In stock

15

. COVER, SOCKET

341-84397-61-00

1
Out of stock

16

SOCKET

371-84312-60-00

—

$26.52

In stock

17

SPRING, REFLECTOR SET

1M1-84124-60-00

—

$7.51

In stock

18

. SPACER

498-84128-60-00

1
Out of stock

19

SCREW, OVAL HEAD (1A0)

90152-05005-00

—

$2.82

In stock

20

BOLT

97014-08040-00

—

$5.26

In stock

21

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

22

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

23

NUT(6L2)

95333-08600-00

—

$3.20

In stock
