1998 Yamaha XT350 CA (XT350KC) Rear Wheel Diagram

← All diagrams

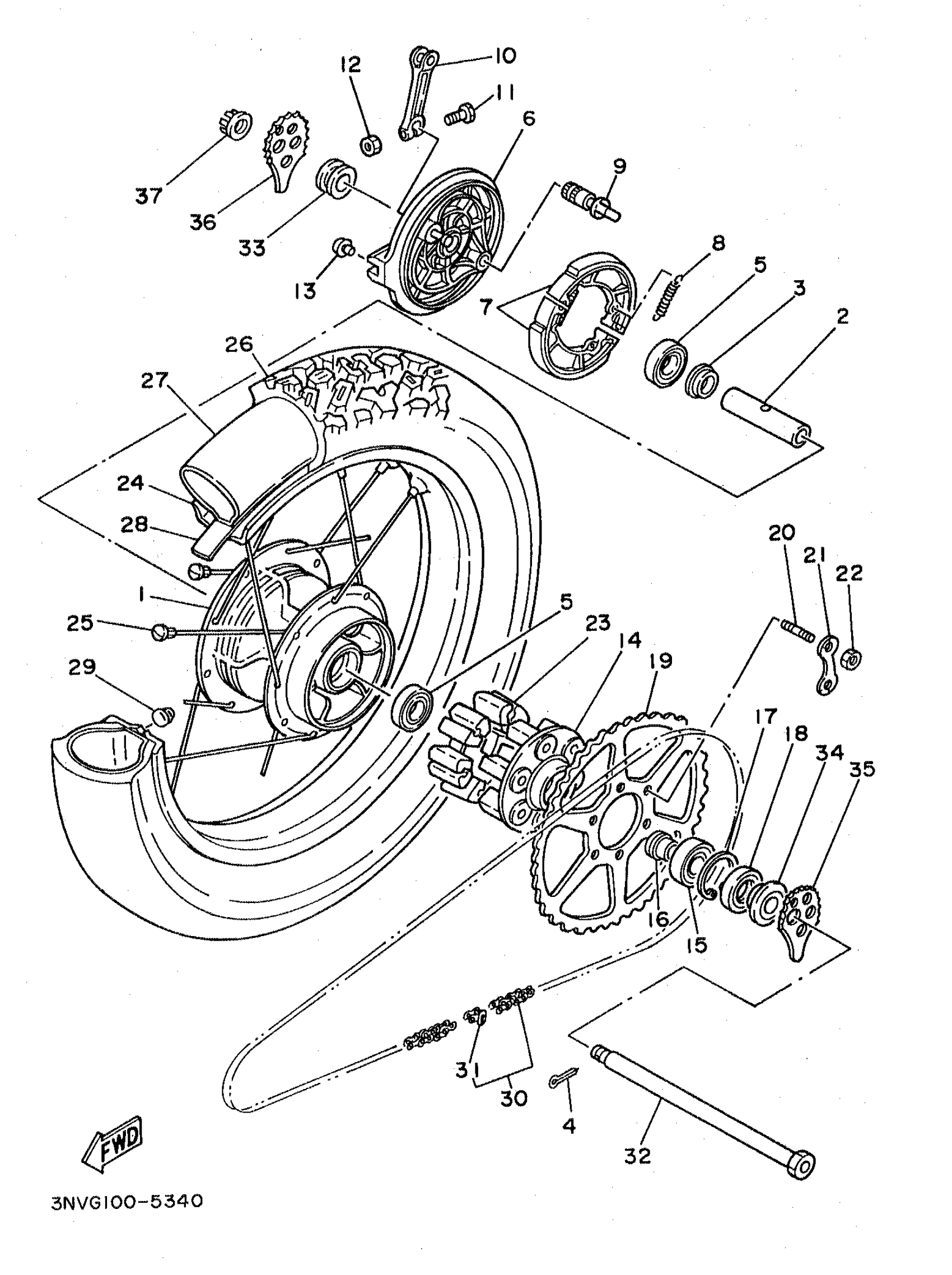

Find the part on the Rear Wheel diagram for your 1998 Yamaha XT350 CA (XT350KC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Yamaha XT350 CA (XT350KC) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

3Y1-25311-00-98

1
Out of stock

2

SPACER

90560-17311-00

—
Out of stock

3

FLANGE, SPACER

146-25315-00-00

1
Out of stock

4

PIN, COTTER

91490-30030-00

1
Out of stock

5

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

1
Out of stock

6

BRAKE SHOE PLATE ASSEMBLY

3Y1-25026-00-98

1
Out of stock

7

BRAKE SHOE KIT

3LS-W253E-00-00

1
Out of stock

8

SPRING, TENSION

90506-15260-00

1
Out of stock

9

CAMSHAFT

4GL-25351-00-00

1
Out of stock

10

LEVER, CAMSHAFT

3R6-25355-01-00

1
Out of stock

11

BOLT, HEXAGON (538)

90101-06278-00

1
Out of stock

12

NUT(6TA)

95317-06600-00

1
Out of stock

13

GROMMET (397)

90480-10068-00

1
Out of stock

14

CLUTCH, HUB

3Y1-25366-00-98

1
Out of stock

15

BEARING (22K)

93306-20446-00

1
Out of stock

16

COLLAR, WHEEL

3Y1-25377-00-00

1
Out of stock

17

CIRCLIP(48Y)

99009-47500-00

—
Out of stock

18

OIL SEAL (28X47X7-102)

93102-28022-00

—
Out of stock

19

SPROCKET, DRIVEN (55T)

55V-25455-50-00

1
Out of stock

20

BOLT, STUD (36X)

90116-08425-00

—
Out of stock

21

WASHER, LOCK (3Y2)

90215-08160-00

—
Out of stock

22

NUT (3Y2)

90170-08258-00

—
Out of stock

23

DAMPER

3Y1-25364-00-00

—
Out of stock

24

RIM (2.15-18)

94421-18418-00

1
Out of stock

25

SPOKE SET, REAR

4Y0-25304-00-00

—
Out of stock

26

TIRE (110/80-18-58P)

94111-182G9-00

1
Out of stock

27

TUBE (5A8)

94212-18188-00

—
Out of stock

28

BAND, RIM (2J4)

94340-18086-00

—
Out of stock

29

GROMMET (397)

90480-10068-00

1
Out of stock

30

CHAIN (D.I.D.428VS-130L)

94580-78130-00

1
Out of stock

31

JOINT, CHAIN (DID428VS-FJ)

94681-61011-00

—
Out of stock

32

AXLE, WHEEL

4KM-25181-10-00

—
Out of stock

33

COLLAR(3SX)

90387-170X9-00

—
Out of stock

34

COLLAR, WHEEL

3Y1-25383-00-00

—
Out of stock

35

PULLER, CHAIN 1

3Y1-25388-01-00

—
Out of stock

36

PULLER, CHAIN 2

3Y1-25389-00-00

—
Out of stock

37

NUT, CASTLE (2H6)

90171-16024-00

—
Out of stock
