1998 Yamaha XT350 CA (XT350KC) Rear Arm Diagram

← All diagrams

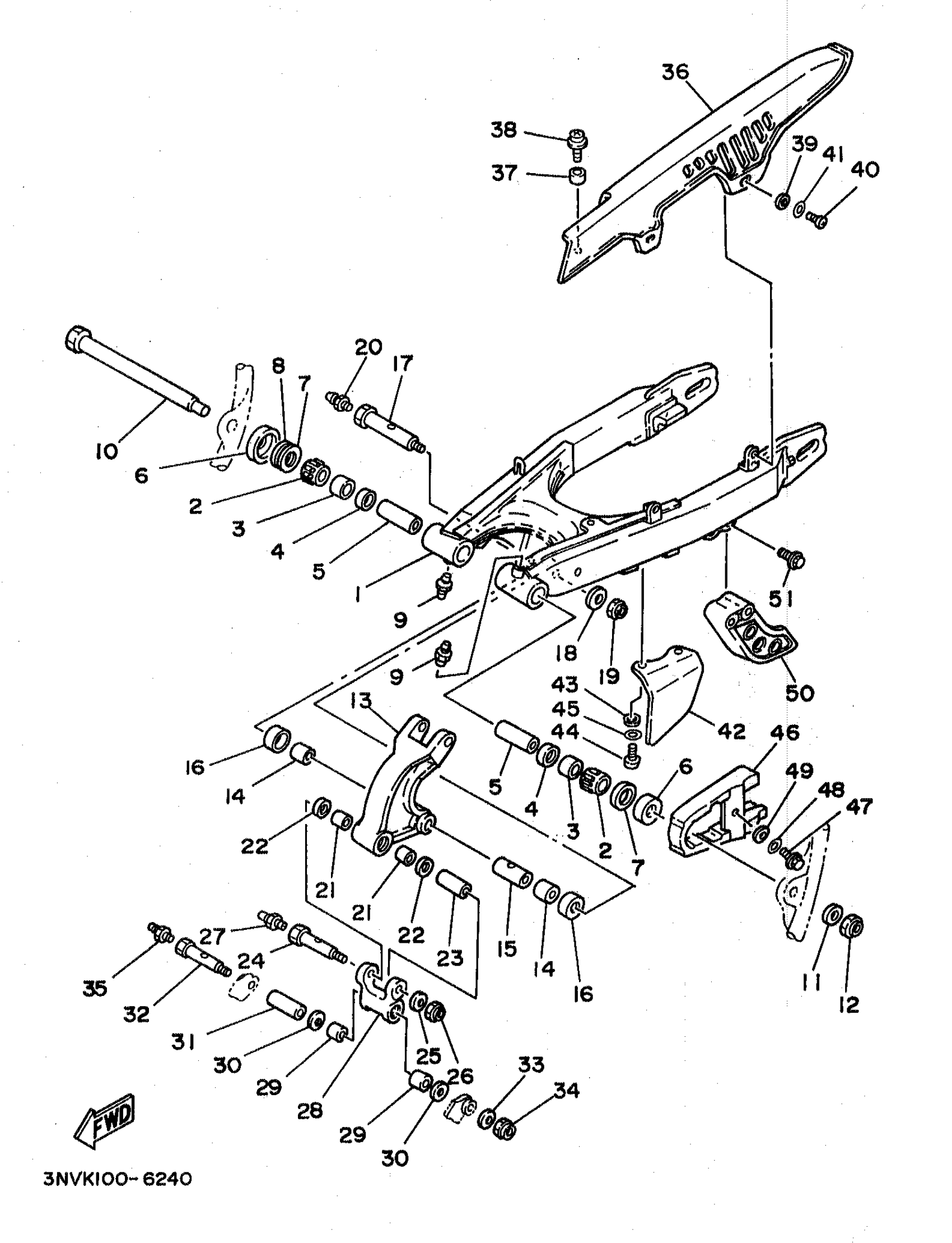

Find the part on the Rear Arm diagram for your 1998 Yamaha XT350 CA (XT350KC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Yamaha XT350 CA (XT350KC) Rear Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR ARM COMP.

55V-22110-00-P0

1
Out of stock

2

1

$38.51

In stock

3

BUSH, SOLID (23X)

90380-22111-00

1
Out of stock

4

OIL SEAL (23X)

93106-22019-00

1
Out of stock

5

BUSH 2

3Y1-22124-01-00

—
Out of stock

6

COVER, THRUST

322-22128-01-00

1
Out of stock

7

WASHER, PLATE (4H7)

90201-243A2-00

—
Out of stock

8

SHIM (0.3T)

156-22127-00-00

1
Out of stock

9

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

10

SHAFT, PIVOT

30X-22141-00-00

1
Out of stock

11

WASHER PLATE 148272190000

90201-14215-00

1
Out of stock

12

NUT, SELF-LOCKING (1J7)

90185-14070-00

1

$10.45

In stock

13

ARM, RELAY

30X-2217A-00-00

1
Out of stock

14

BUSH (30X)

90386-20120-00

1
Out of stock

15

COLLAR (30X)

90387-140J9-00

—
Out of stock

16

COVER, THRUST 1

30X-22128-00-00

1
Out of stock

17

BOLT

90109-121A1-00

1
Out of stock

18

WASHER, PLATE (8K2)

90201-120A5-00

—

$5.00

In stock

19

NUT, SELF LOCKING (23X)

90185-12119-00

—
Out of stock

20

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

21

BUSH (26H)

90386-18115-00

—
Out of stock

22

OIL SEAL (2J5)

93109-18020-00

—

$11.18

In stock

23

COLLAR (38M)

90387-126J8-00

—
Out of stock

24

BOLT (30X)

90109-10752-00

—
Out of stock

25

WASHER, PLATE(6TC)

90201-10M05-00

—
Out of stock

26

NUT, SELF LOCKING (23X)

90185-10120-00

—
Out of stock

27

NIPPLE, GREASE (36X)

93700-06009-00

—

$9.89

In stock

28

ROD, CONNECTING 1

30X-2217F-01-00

1
Out of stock

29

BUSH (26H)

90386-18115-00

—
Out of stock

30

OIL SEAL (2J5)

93109-18020-00

—

$11.18

In stock

31

COLLAR(38W)

90387-121L6-00

—
Out of stock

32

BOLT (30X)

90109-10752-00

—
Out of stock

33

WASHER, PLATE(6TC)

90201-10M05-00

—
Out of stock

34

NUT, SELF LOCKING (23X)

90185-10120-00

—
Out of stock

35

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

36

CASE, CHAIN

38M-22311-00-00

1
Out of stock

37

COLLAR

90387-06704-00

1
Out of stock

38

SCREW, WITH WASHER (517).

90159-06013-00

—

$6.29

In stock

39

WASHER (3R8)

90209-06187-00

—

$6.18

In stock

40

SCREW, PAN HEAD(3TJ)

98507-06016-00

—

$2.43

In stock

41

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

42

CASE, CHAIN 2

30X-22312-01-00

1
Out of stock

43

WASHER (3R8)

90209-06187-00

—

$6.18

In stock

44

SCREW, PAN

98517-06012-00

—

$3.14

In stock

45

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

46

SEAL, GUARD

42U-22151-01-00

—
Out of stock

47

BOLT, HEXAGON

97017-06012-00

—

$2.62

In stock

48

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

49

WASHER (3R8)

90209-06187-00

—

$6.18

In stock

50

GUARD, CHAIN

30X-22153-00-00

—
Out of stock

51

BOLT, FLANGE

95817-06050-00

—
Out of stock
