1998 Yamaha XT350 CA (XT350KC) Front Fork Diagram

← All diagrams

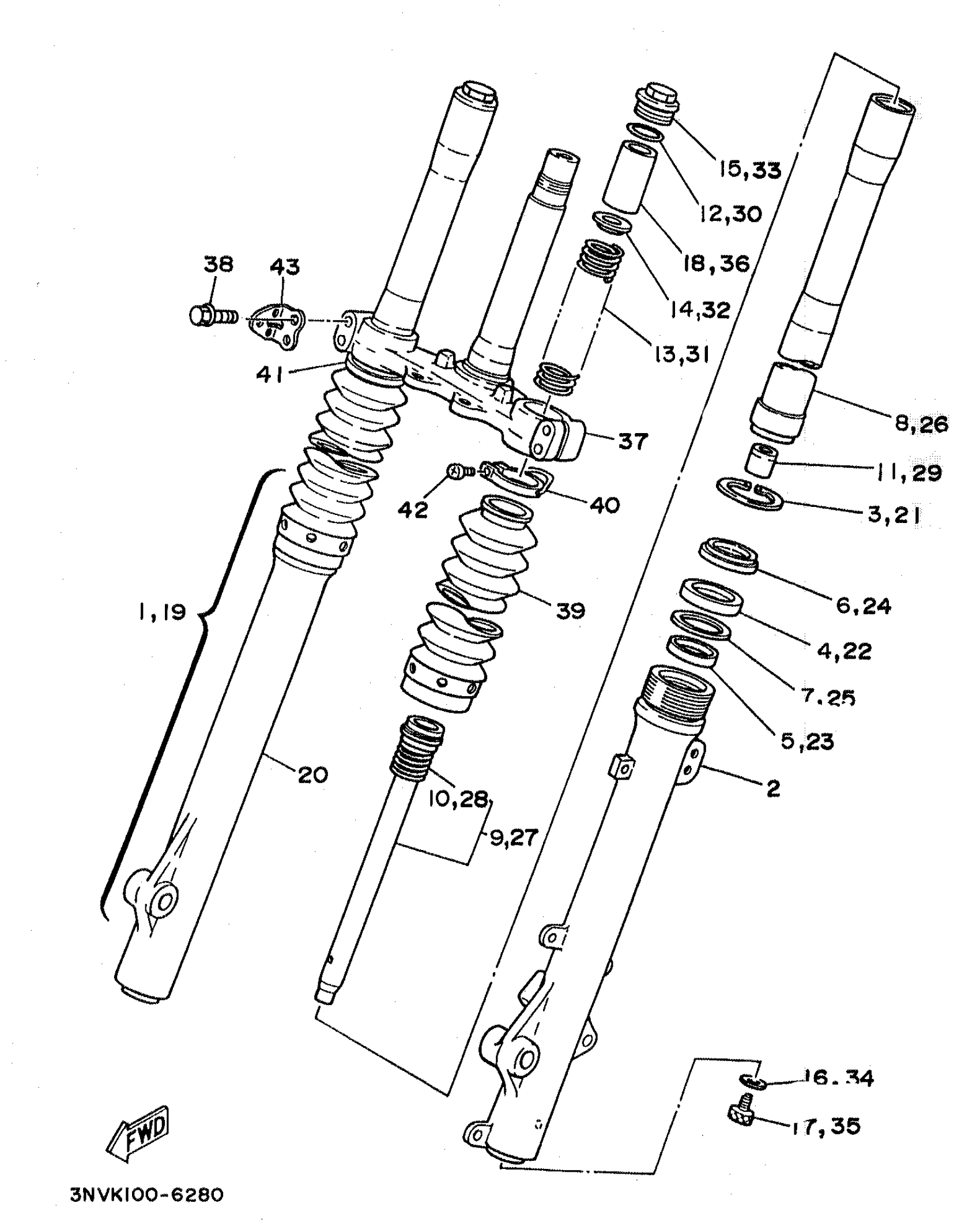

Find the part on the Front Fork diagram for your 1998 Yamaha XT350 CA (XT350KC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Yamaha XT350 CA (XT350KC) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY (L.H)

55V-23102-A0-00

1
Out of stock

2

. TUBE, OUTER (LEFT)

48Y-23126-00-00

1
Out of stock

3

RING, SNAP

4A1-23156-00-00

1

$4.74

In stock

4

OIL SEAL

48Y-23145-00-00

1
Out of stock

5

METAL, SLIDE 1

30X-23125-00-00

1
Out of stock

6

SEAL, DUST

48Y-23144-00-00

1
Out of stock

7

WASHER, SPRING UPPER

5K5-23149-00-00

1

$7.42

In stock

8

. INNER TUBE COMP1

30X-23110-00-00

1
Out of stock

9

. CYLINDER COMP, FRONT FORK

55V-23170-00-00

1
Out of stock

10

.. SPRING, REBOUND

2X7-23151-00-00

1
Out of stock

11

SPINDLE, TAPER

3R6-23173-L0-00

1

$15.32

In stock

12

O-RING

1W1-23114-L0-00

1
Out of stock

13

. SPRING, FRONT FORK

30X-23141-00-00

1
Out of stock

14

WASHER, SPRING UPPER

4FY-23149-00-00

—

$6.52

In stock

15

. BOLT, CAP

53Y-23111-00-00

1
Out of stock

16

GASKET

509-23158-L0-00

—

$14.34

In stock

17

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

18

SPACER

4V5-23118-L1-00

1
Out of stock

19

FRONT FORK ASSEMBLY (R.H)

55V-23103-A0-00

1
Out of stock

20

. TUBE, OUTER (RIGHT)

48Y-23136-00-00

1
Out of stock

21

RING, SNAP

4A1-23156-00-00

1

$4.74

In stock

22

OIL SEAL

48Y-23145-00-00

1
Out of stock

23

METAL, SLIDE 1

30X-23125-00-00

1
Out of stock

24

SEAL, DUST

48Y-23144-00-00

1
Out of stock

25

WASHER, SPRING UPPER

5K5-23149-00-00

1

$7.42

In stock

26

. INNER TUBE COMP1

30X-23110-00-00

1
Out of stock

27

. CYLINDER COMP, FRONT FORK

55V-23170-00-00

1
Out of stock

28

.. SPRING, REBOUND

2X7-23151-00-00

1
Out of stock

29

SPINDLE, TAPER

3R6-23173-L0-00

1

$15.32

In stock

30

O-RING

1W1-23114-L0-00

1
Out of stock

31

. SPRING, FRONT FORK

30X-23141-00-00

1
Out of stock

32

WASHER, SPRING UPPER

4FY-23149-00-00

—

$6.52

In stock

33

. BOLT, CAP

53Y-23111-00-00

1
Out of stock

34

GASKET

509-23158-L0-00

—

$14.34

In stock

35

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

36

SPACER

4V5-23118-L1-00

1
Out of stock

37

UNDER BRACKET COMP.

55V-23340-00-00

1
Out of stock

38

BOLT, FLANGE(4KG)

95024-08040-00

—

$6.17

In stock

39

BOOT

3YT-23191-30-00

1
Out of stock

40

. BAND

48Y-23192-00-00

1
Out of stock

41

BAND, BOOT

341-92090-60-00

—
Out of stock

42

SCREW, BOOT BAND

1W4-23194-L0-00

—

$6.43

In stock

43

BRACKET, REFLECTOR 1

49R-85112-00-00

—

$19.26

In stock
