1993 Yamaha XT350 CA (XT350EC) Clutch Diagram

← All diagrams

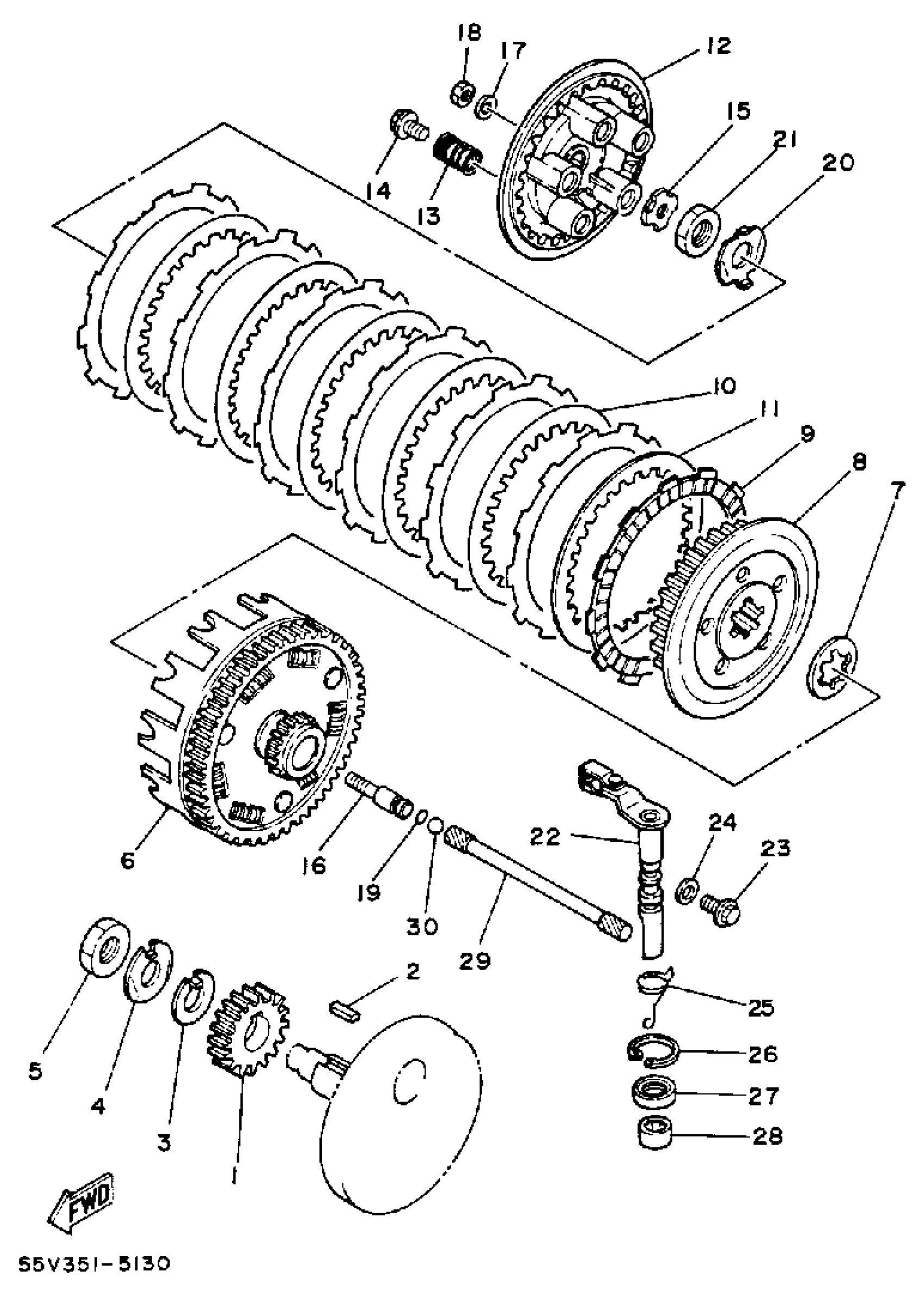

Find the part on the Clutch diagram for your 1993 Yamaha XT350 CA (XT350EC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Yamaha XT350 CA (XT350EC) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, PRIMARY DRIVE (23T)

30X-16111-00-00

1
Out of stock

2

KEY, STRAIGHT (30X)

90282-07057-00

—

$8.71

In stock

3

WASHER, LOCK (3Y1)

90215-16156-00

1

$6.09

In stock

4

WASHER, LOCK (30X)

90215-16222-00

1

$8.06

In stock

5

NUT(24V)

90170-16343-00

1

$13.22

In stock

6

PRIMARY DRIVEN GEAR COMP.

55V-16150-00-00

1
Out of stock

7

PLATE, THRUST 1

30X-16154-00-00

1

$22.86

In stock

8

BOSS, CLUTCH

55V-16371-00-00

—
Out of stock

9

PLATE, FRICTION

5Y1-16331-01-00

1

$25.90

In stock

10

PLATE, CLUTCH 2

168-16325-10-00

1

$13.32

In stock

11

PLATE, CLUTCH 1

3J2-16324-10-00

1

$10.21

In stock

12

PLATE, PRESSURE 1

5Y1-16351-00-00

1
Out of stock

13

SPRING (583 CLUTCH)

90501-23391-00

1

$5.68

In stock

14

SCREW, WITH WASHER (583)

90159-06010-00

1

$6.54

In stock

15

PLATE, PUSH

1W1-16358-01-00

1

$20.06

In stock

16

ROD, PUSH 1

55V-16356-00-00

1
Out of stock

17

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

18

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

19

O-RING (26H)

93210-06632-00

—

$6.68

In stock

20

WASHER, LOCK (30X)

90215-16320-00

—

$10.68

In stock

21

NUT, HEXAGON (30X)

90170-16326-00

—
Out of stock

22

PUSH LEVER ASSEMBLY

55V-16380-00-00

1
Out of stock

23

SCREW 425163430000

90149-08067-00

—

$4.54

In stock

24

WASHER, PLATE 3411117500

90201-08087-00

—

$3.13

In stock

25

SPRING, TORSION (3Y1)

90508-14433-00

—

$5.62

In stock

26

CIRCLIP (3Y1)

93420-28055-00

—

$6.89

In stock

27

OIL SEAL (3Y1)

93102-14209-00

—

$9.77

In stock

28

—

$31.43

In stock

29

ROD, PUSH 2

30X-16357-00-00

1
Out of stock

30

BALL (498)

93511-32027-00

—

$4.70

In stock
