1993 Yamaha XT350 CA (XT350EC) Shift Shaft Diagram

← All diagrams

Find the part on the Shift Shaft diagram for your 1993 Yamaha XT350 CA (XT350EC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

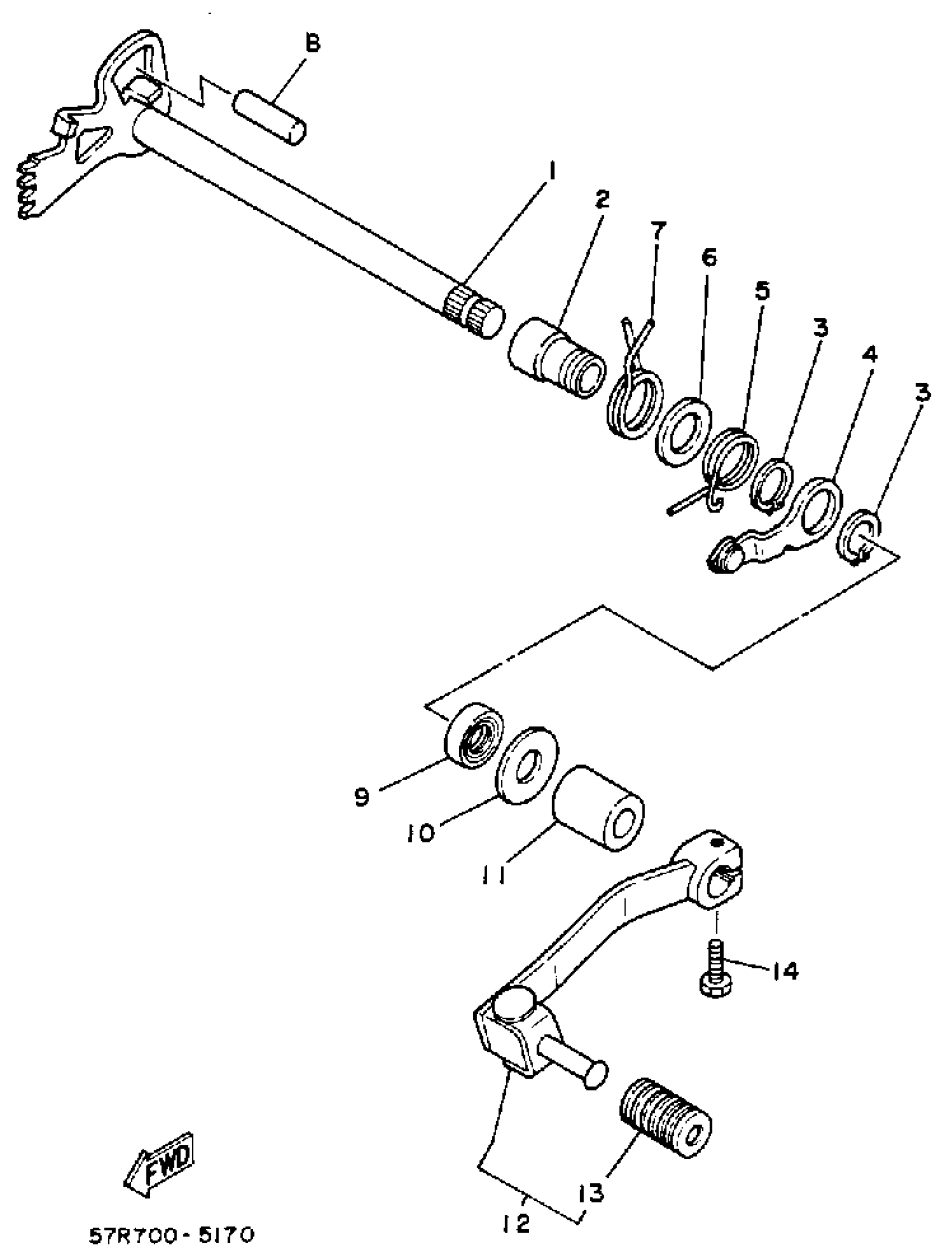

1993 Yamaha XT350 CA (XT350EC) Shift Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT SHAFT ASSEMBLY

30X-18101-01-00

1
Out of stock

2

COLLAR (3Y1)

90387-12787-00

1

$9.55

In stock

3

CIRCLIP(1EY)

99009-17400-00

1
Out of stock

4

STOPPER LEVER ASSY

3Y1-18140-00-00

1

$15.15

In stock

5

SPRING, TORSION

90508-26434-00

1

$2.12

In stock

6

WASHER, PLATE (30X)

90201-177G4-00

1
Out of stock

7

SPRING, TORSION (2K7)

90508-32374-00

1
Out of stock

8

PIN, DOWEL

93608-30152-00

1
Out of stock

9

SEAL, OIL (30X)

93102-12321-00

1

$10.14

In stock

10

WASHER

90201-12588-00

1

$6.37

In stock

11

SPACER (3Y1)

90560-12191-00

1
Out of stock

12

SHIFT PEDAL ASSY

30X-18110-01-00

—
Out of stock

13

COVER, CHANGE PEDAL

1W6-18113-00-00

1

$3.91

In stock

14

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock
