1993 Yamaha XT350 CA (XT350EC) Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 1993 Yamaha XT350 CA (XT350EC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

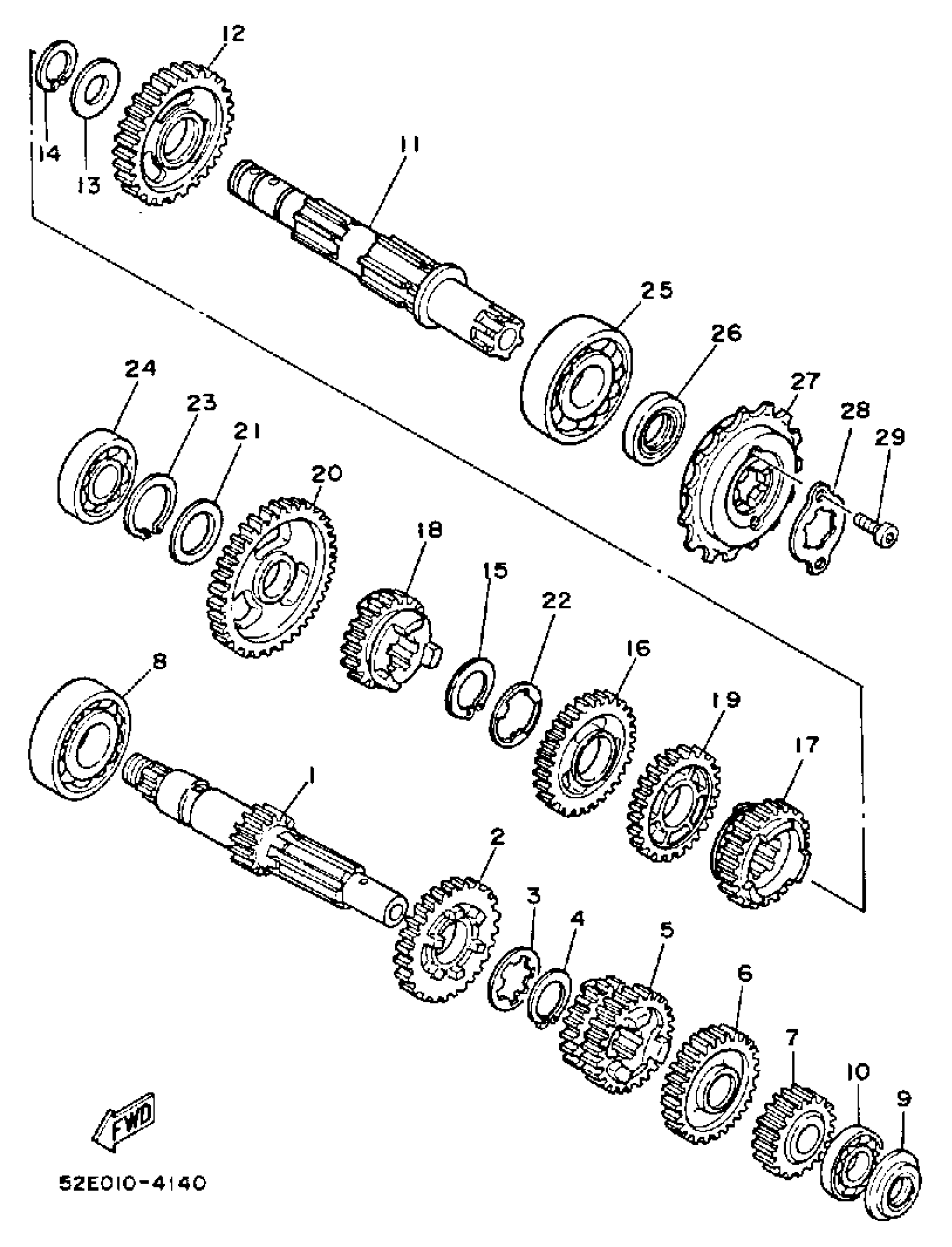

1993 Yamaha XT350 CA (XT350EC) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

51Y-17411-00-00

1
Out of stock

2

GEAR, 6TH PINION

4GY-17161-01-00

—
Out of stock

3

WASHER (5H0)

90209-18208-00

1

$6.74

In stock

4

CIRCLIP (537)

93410-22039-00

1

$6.17

In stock

5

GEAR, 3RD PINION (25T)

55V-17131-00-00

1
Out of stock

6

GEAR, 5TH PINION

55V-17151-02-00

—
Out of stock

7

GEAR, 2ND PINION

51Y-17121-00-00

—

$20.25

In stock

8

BEARING (30X)

93306-20447-00

1

$33.97

In stock

9

OIL SEAL (3Y1)

93101-17093-00

—

$12.68

In stock

10

BEARING(2JN)

93306-00315-00

1

$27.16

In stock

11

DRIVE AXLE ASSY

55V-17402-00-00

—
Out of stock

12

GEAR, 2ND WHEEL (29T)

51Y-17221-00-00

1
Out of stock

13

WASHER (30X)

90209-23241-00

—

$3.32

In stock

14

CIRCLIP (30X)

93410-26067-00

1

$7.42

In stock

15

CIRCLIP (537)

93410-22039-00

1

$6.17

In stock

16

GEAR, 3RD WHEEL (30T)

55V-17231-00-00

1
Out of stock

17

GEAR, 5TH WHEEL (24T)

55V-17251-00-00

1
Out of stock

18

GEAR, 6TH WHEEL (22T)

55V-17261-01-00

1
Out of stock

19

GEAR, 4TH WHEEL

4GY-17241-00-00

—
Out of stock

20

GEAR, 1ST WHEEL (37T)

51Y-17211-00-00

1
Out of stock

21

WASHER, PLATE (30X)

90201-177G4-00

—
Out of stock

22

WASHER (5H0)

90209-18208-00

1

$6.74

In stock

23

CIRCLIP (525)

93410-17037-00

—

$6.68

In stock

24

BEARING (30X)

93306-20332-00

—

$32.02

In stock

25

—

$35.25

In stock

26

OIL SEAL (3Y1)

93102-25226-00

—

$12.31

In stock

27

SPROCKET, DRIVE 19T (55V1746190)

55V-17460-00-00

1
Out of stock

28

HOLDER, SPROCKET

3Y1-17456-00-00

—

$6.38

In stock

29

BOLT(3JP)

97017-06010-00

—

$2.62

In stock
