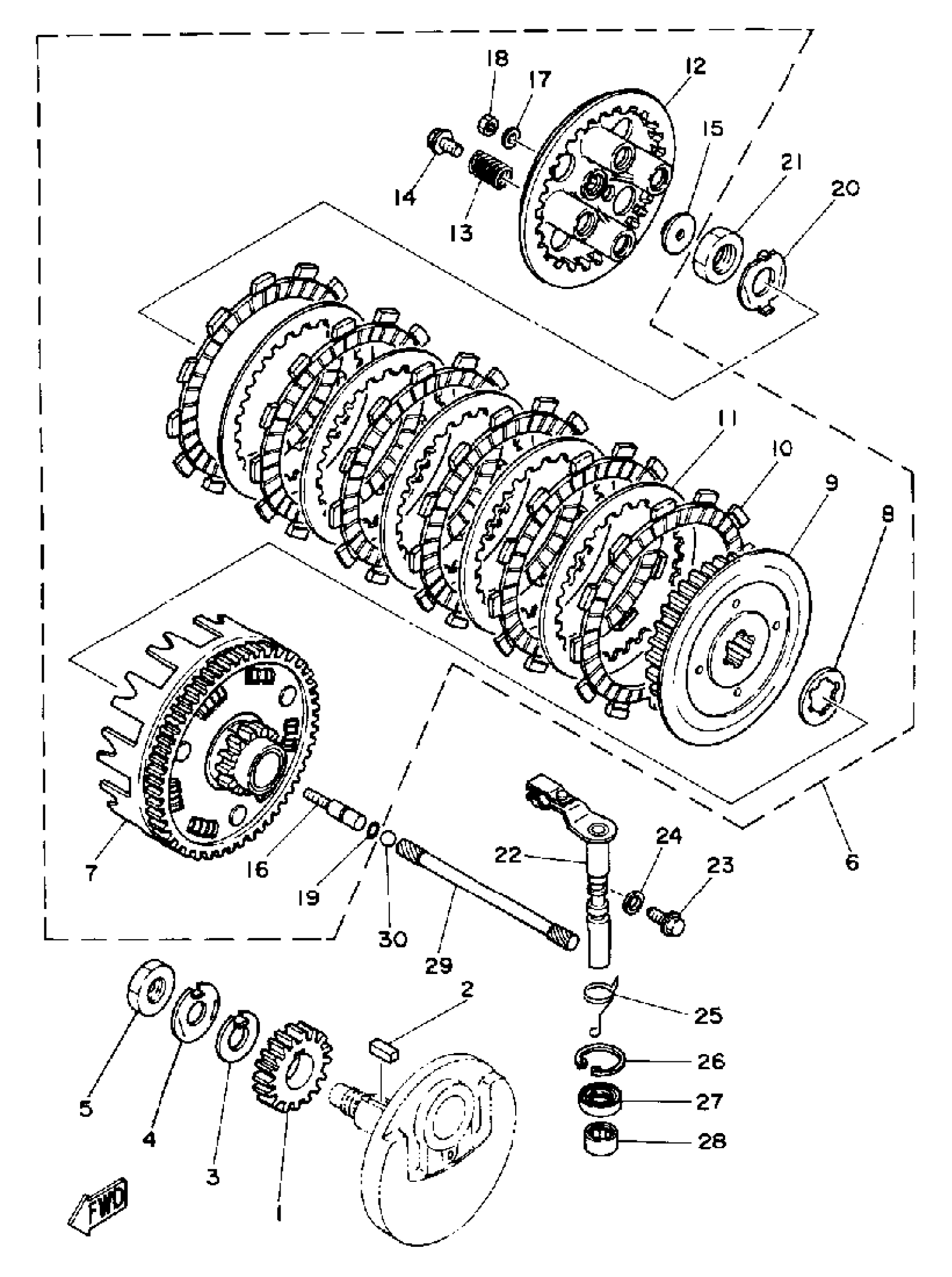

Find the part on the Clutch diagram for your 1981 Yamaha XT250H_1981, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XT250H_1981 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, PRIMARY DRIVE

3Y1-16111-01-00

1
Out of stock

2

KEY, STRAIGHT (584)

90282-07023-00

1
Out of stock

3

WASHER, LOCK (3Y1)

90215-16156-00

1

$6.09

In stock

4

WASHER, LOCK (30X)

90215-16222-00

1

$8.06

In stock

5

NUT(24V)

90170-16343-00

1

$13.22

In stock

6

CLUTCH ASSEMBLY

(3Y1-16300-01-00

1
Out of stock

7

. PRIMARY DRIVEN GEAR COMP (3Y1-16150-01)

3Y1-16150-02-00

1
Out of stock

8

. PLATE, THRUST 1

3Y1-16154-00-00

1
Out of stock

9

BOSS, CLUTCH

3Y1-16371-00-00

—

$49.68

In stock

10

PLATE, FRICTION 1

5Y1-16321-00-00

1
Out of stock

11

PLATE, CLUTCH 2

360-16325-10-00

1
Out of stock

12

PLATE, PRESSURE 1

3Y1-16351-00-00

1
Out of stock

13

1

$3.88

In stock

14

SCREW, WITH WASHER (1W4)

90159-06016-00

1
Out of stock

15

PLATE, PUSH

1W1-16358-01-00

1

$20.06

In stock

16

ROD, PUSH 1

3Y1-16356-01-00

—

$5.49

In stock

17

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

18

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

19

O-RING (26H)

93210-06632-00

—

$6.68

In stock

20

WASHER, LOCK (3Y1)

90215-20159-00

—

$6.74

In stock

21

NUT (34L)

90170-20327-00

—

$16.98

In stock

22

PUSH LEVER ASSY

3Y1-16380-01-00

—
Out of stock

23

SCREW 425163430000

90149-08067-00

—

$4.54

In stock

24

WASHER, PLATE 3411117500

90201-08087-00

—

$3.13

In stock

25

SPRING, TORSION (3Y1)

90508-14433-00

—

$5.62

In stock

26

CIRCLIP (3Y1)

93420-28055-00

—

$6.89

In stock

27

OIL SEAL (3Y1)

93102-14209-00

—

$9.77

In stock

28

—

$31.43

In stock

29

ROD, PUSH 2

3Y1-16357-00-00

1
Out of stock

30

BALL (498)

93511-32027-00

—

$4.70

In stock
