1981 Yamaha XT250H_1981 Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1981 Yamaha XT250H_1981, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

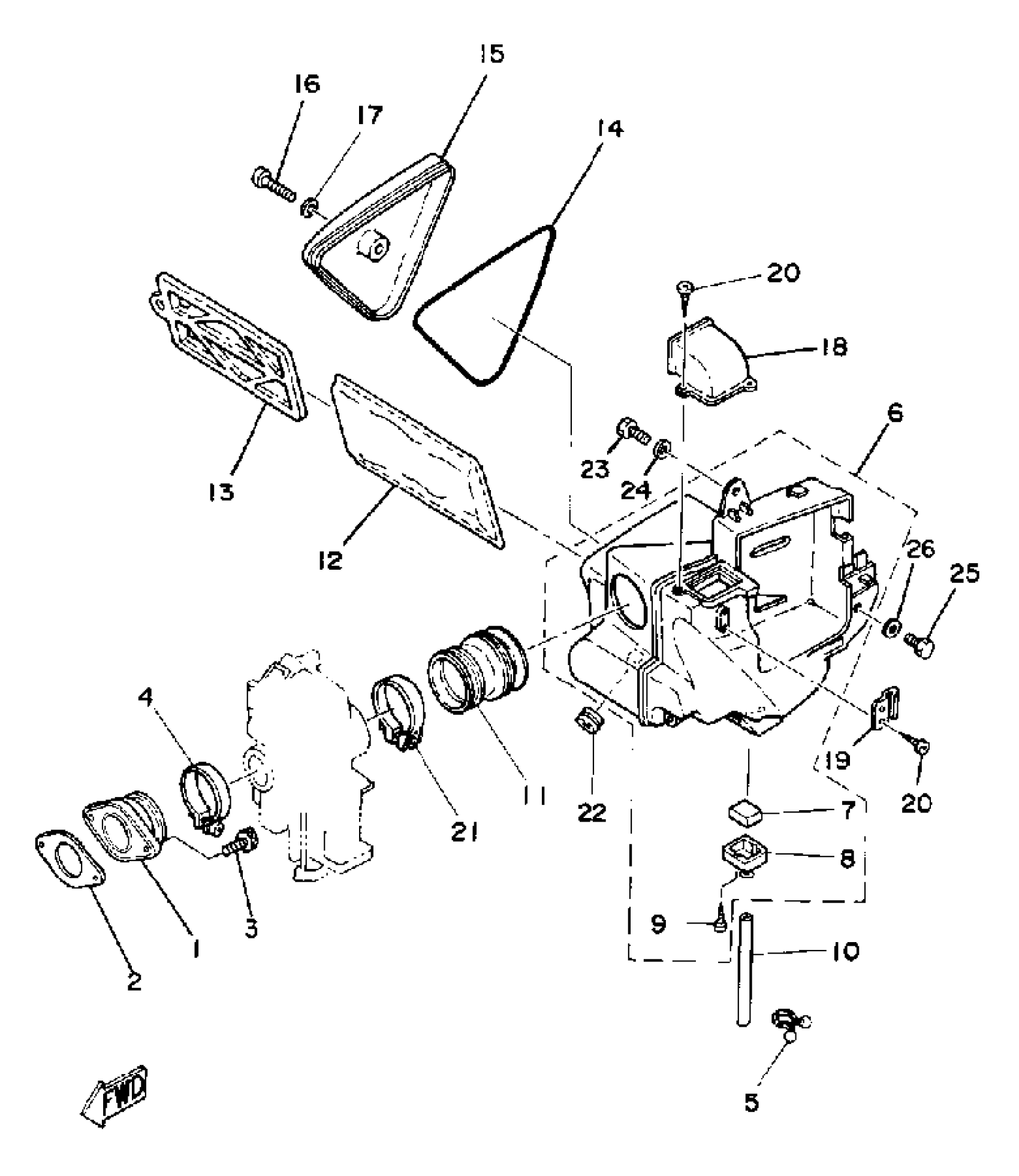

1981 Yamaha XT250H_1981 Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 1

3Y1-13586-00-00

—

$51.47

In stock

2

GASKET, MANIFOLD

3HT-13556-00-00

1

$9.89

In stock

3

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

4

CLAMP, HOSE

90460-49258-00

1
Out of stock

5

CLAMP (3Y2)

90464-16039-00

1
Out of stock

6

AIR CLEANER CASE ASSEMBLY

3Y1-14401-01-00

1
Out of stock

7

SEAL

36Y-14462-00-00

1
Out of stock

8

. UNAVAILABLE IN PRICE BOOK

3Y1-14419-00-00

1
Out of stock

9

—

$5.77

In stock

10

TUBE, FLEXIBLE(3NV)

91A21-07020-00

1

$8.95

In stock

11

JOINT, AIR CLEANER 1

3Y1-14453-00-00

1
Out of stock

12

ELEMENT, AIR CLEANER

3Y1-14451-01-00

1
Out of stock

13

GUIDE, ELEMENT

3Y1-14458-00-00

1
Out of stock

14

O-RING

93211-066A9-00

1

$10.66

In stock

15

CAP, CLEANER CASE 1

3Y1-14412-00-00

1
Out of stock

16

SCREW, PAN

98507-06035-00

—

$6.18

In stock

17

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

18

SILENCER, INTAKE 1

3Y1-14431-00-00

1
Out of stock

19

HOOK, BANK

3Y1-2175R-00-00

1
Out of stock

20

SCREW, TAPPING (97702-40508-00)

97701-40508-00

1
Out of stock

21

HOSE CLAMP ASSY

90450-54008-00

—
Out of stock

22

GROMMET

(90480-16265-00)

1
Out of stock

23

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

24

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

25

WASHER PLATE 102283270000

90202-06013-00

1
Out of stock

26

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

27

WASHER

90201-06600-00

1
Out of stock
