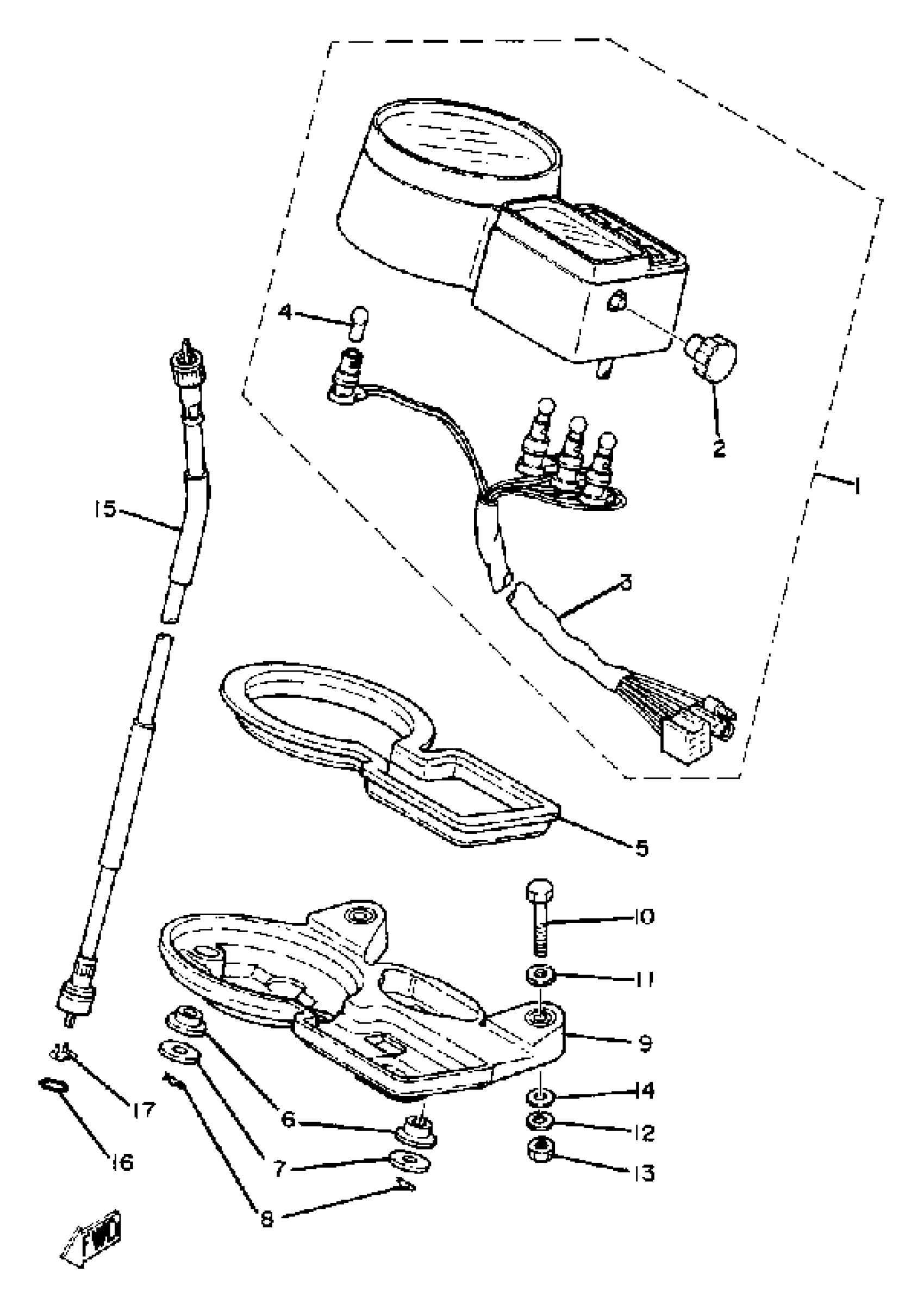

Find the part on the Speedometer diagram for your 1981 Yamaha XT250H, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XT250H Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

(3Y1-83570-A0-00)

1
Out of stock

2

. KNOB, TRIP METER

3Y1-83578-00-00

1
Out of stock

3

. SOCKET CORD ASSEMBLY

3Y1-83509-00-00

1
Out of stock

4

BULB,(6V3W)

122-83516-10-00

1
Out of stock

5

UNAVAILABLE IN PRICE BOOK

3Y1-83513-00-00

1
Out of stock

6

DAMPER 2

1M1-83526-01-00

1

$3.78

In stock

7

WASHER PLATE 829771780000

90201-05033-00

1
Out of stock

8

CLIP (156-83525-00)

90468-10050-00

1

$2.31

In stock

9

BRACKET, METER

3Y1-83519-00-00

1
Out of stock

10

BOLT, HEXAGON

97013-06045-00

1

$1.51

In stock

11

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

14

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

15

SPEED0METER CABLE ASSY

3Y1-83550-01-00

1

$40.54

In stock

16

O-RING (26H)

93210-14579-00

—

$5.69

In stock

17

RING, STOP

102-25137-00-00

—
Out of stock
