1992 Yamaha Serow CA (XT225DC) Stand Footrest Diagram

← All diagrams

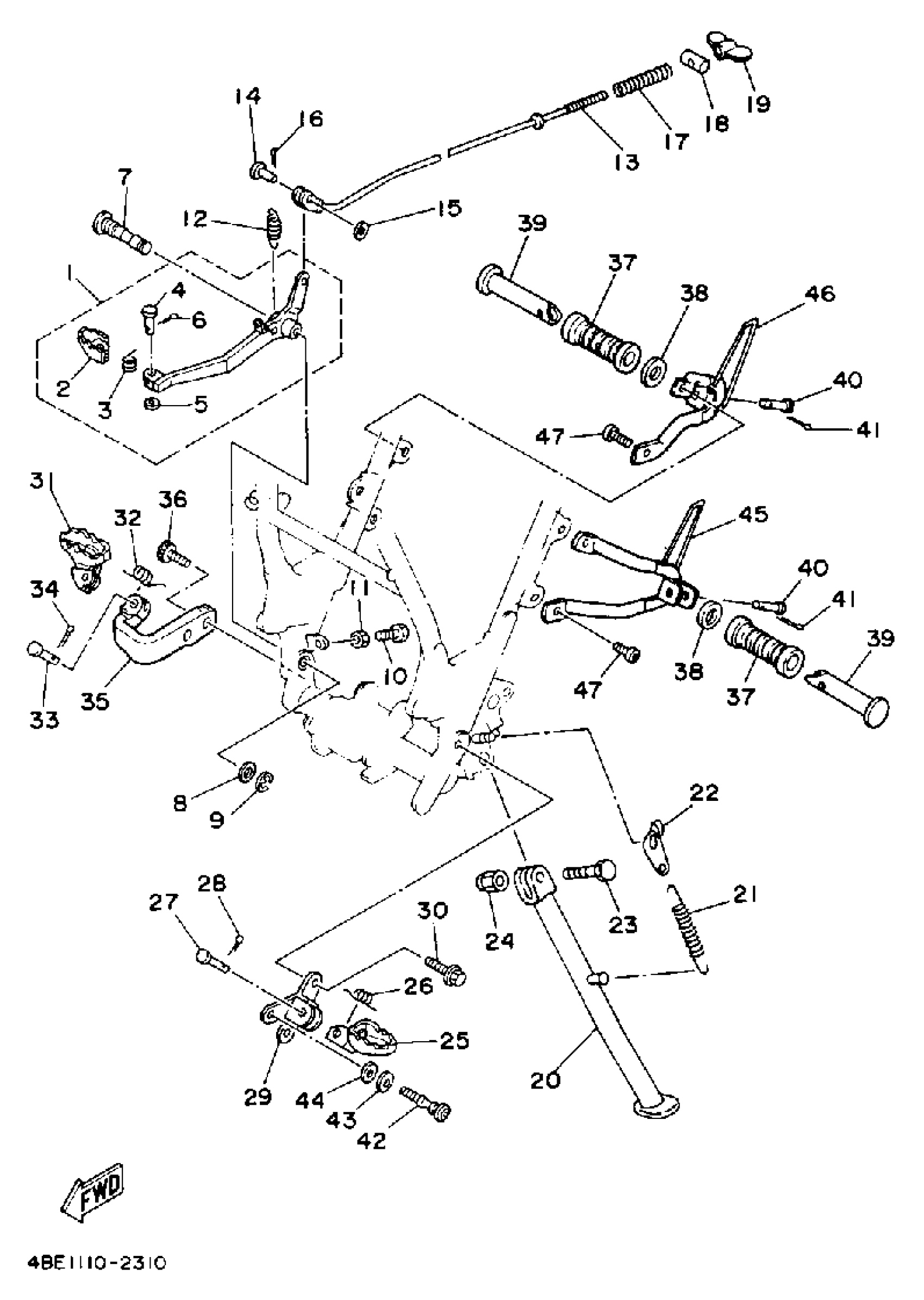

Find the part on the Stand Footrest diagram for your 1992 Yamaha Serow CA (XT225DC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Yamaha Serow CA (XT225DC) Stand Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE

1KH-27200-00-00

1
Out of stock

2

PEDAL, BRAKE

55V-27242-00-00

1

$19.86

In stock

3

SPRING, TORSION (1W2)

90508-14352-00

1

$6.89

In stock

4

PIN, COTTER (1W2)

91701-06022-00

1

$1.83

In stock

5

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

6

PIN, COTTER

91490-20025-00

1

$1.31

In stock

7

SHAFT, BRAKE PEDAL

1KH-27212-01-00

1
Out of stock

8

WASHER, PLATE (525)

90201-12541-00

1
Out of stock

9

CIRCLIP (4V2)

93430-09038-00

1
Out of stock

10

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

11

NUT(650)

95380-06700-00

1

$6.17

In stock

12

SPRING, TENSION (23X)

90506-18305-00

1
Out of stock

13

ROD, BRAKE

1KH-27231-01-00

1
Out of stock

14

PIN, WITH HOLE (248-27228-00)

90240-06006-00

—
Out of stock

15

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

16

PIN, COTTER

91490-25020-00

—

$2.94

In stock

17

SPRING, (180-27236-00)

90501-10245-00

—

$6.17

In stock

18

PIN 1562723700

90249-12008-00

—

$4.70

In stock

19

NUT (25K)

90179-06411-00

—

$5.10

In stock

20

STAND, SIDE

4BE-27311-01-00

—
Out of stock

21

SPRING, MAIN STAND

4KN-27116-00-00

—

$10.32

In stock

22

LINK, SIDE STAND

42U-27315-01-00

—
Out of stock

23

BOLT(2GH)

90109-104E6-00

—

$8.12

In stock

24

NUT, U

90185-10037-00

—

$6.68

In stock

25

FOOTREST 1

22W-27411-01-90

—
Out of stock

26

—

$3.26

In stock

27

PIN, CLEVIS (2A6)

91701-08038-00

—

$3.91

In stock

28

PIN, COTTER

91490-25020-00

—

$2.94

In stock

29

BRACKET, FOOTREST 1

1KH-27412-00-00

1
Out of stock

30

BOLT, FLANGE(3HP)

95817-10016-00

—

$6.17

In stock

31

FOOTREST 2

1KH-27421-00-90

—
Out of stock

32

SPRING TORSION 371274560000

90508-20155-00

—
Out of stock

33

PIN, CLEVIS (2A6)

91701-08038-00

—

$3.91

In stock

34

PIN, COTTER

91490-25020-00

—

$2.94

In stock

35

BRACKET, FOOTREST 2

1KH-27422-01-00

1
Out of stock

36

BOLT, SOCKET

91317-10020-00

—

$6.68

In stock

37

COVER, REAR FOOTREST

120-27433-00-00

—

$7.51

In stock

38

WASHER, PLATE (888)

90201-20279-00

—
Out of stock

39

FOOTREST, REAR 1

2GV-27431-00-00

—

$27.39

In stock

40

PIN, CLEVIS (1Y8)

91701-06032-00

—

$6.85

In stock

41

PIN, COTTER

91490-16020-00

1

$6.23

In stock

42

BOLT

4BP-27434-11-00

—

$2.57

In stock

43

WASHER, PLATE(51Y)

90201-120K4-00

—
Out of stock

44

WASHER, PLATE (3L7)

90201-08784-00

—

$2.54

In stock

45

BRACKET 1

3RW-27432-00-00

1
Out of stock

46

BRACKET 2

3RW-27442-00-00

—
Out of stock

47

BOLT, BUTTON

92017-08020-00

—

$5.86

In stock
