1992 Yamaha Serow CA (XT225DC) Side Cover Diagram

← All diagrams

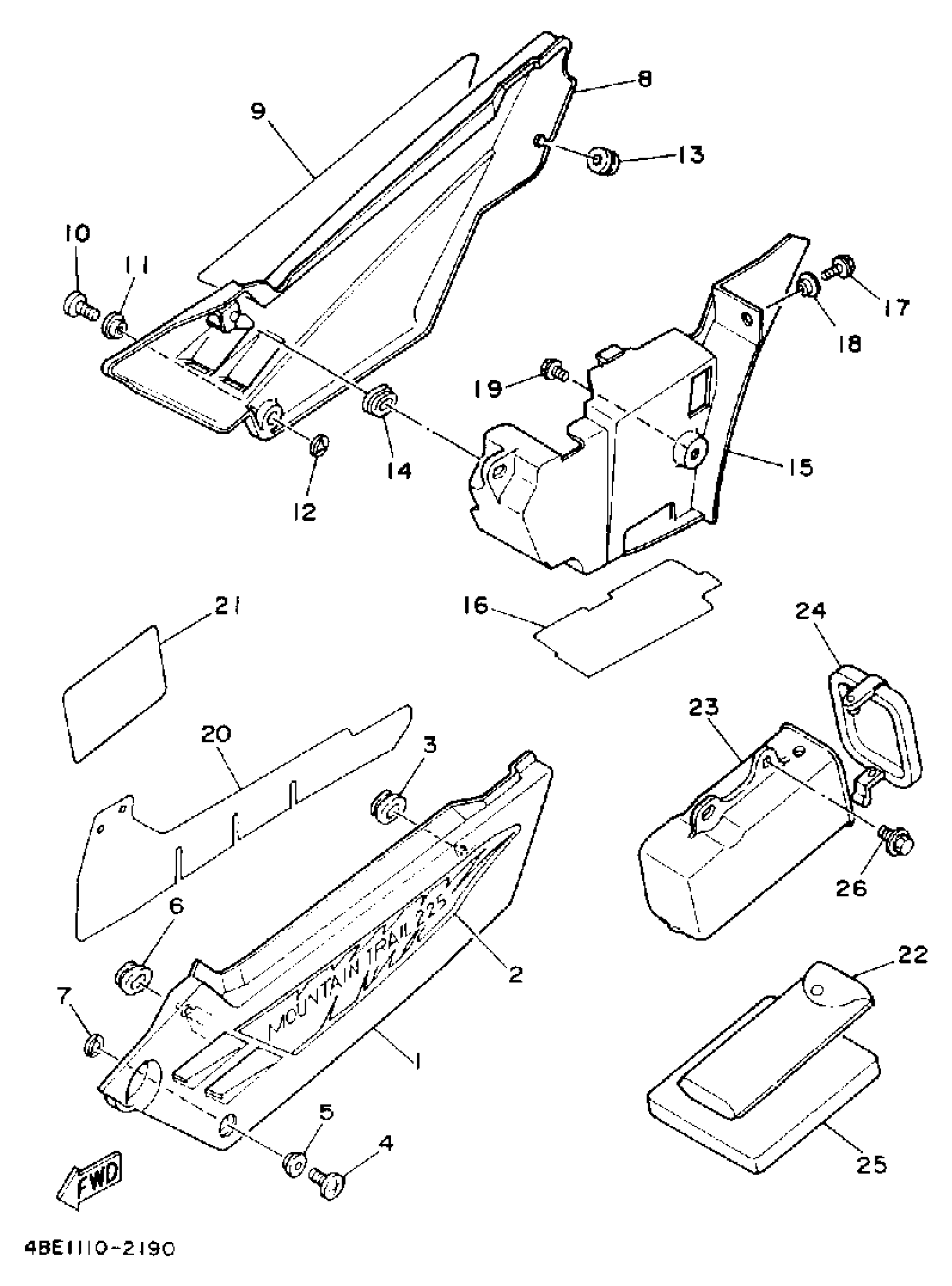

Find the part on the Side Cover diagram for your 1992 Yamaha Serow CA (XT225DC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Yamaha Serow CA (XT225DC) Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE 1

3RW-21711-00-00

1
Out of stock

2

GRAPHIC

3RW-2173E-30-00

1
Out of stock

3

GROMMET(41Y)

90480-01401-00

1

$5.51

In stock

4

SCREW(1KH)

90149-06223-00

1

$7.22

In stock

5

COLLAR

90387-06107-00

1

$7.05

In stock

6

GROMMET(41Y)

90480-01401-00

1

$5.51

In stock

7

PLATE

4U5-2176E-00-00

1
Out of stock

8

COVER, SIDE 2

3RW-21721-00-00

1
Out of stock

9

GRAPHIC

3RW-2173F-30-00

1
Out of stock

10

SCREW(1KH)

90149-06223-00

1

$7.22

In stock

11

COLLAR

90387-06107-00

1

$7.05

In stock

12

PLATE

4U5-2176E-00-00

1
Out of stock

13

GROMMET (2H7)

90480-11224-00

1

$2.13

In stock

14

GROMMET(41Y)

90480-01401-00

1

$5.51

In stock

15

BOX

3RW-2177A-02-00

—
Out of stock

16

SEAL 3

5MP-2173M-00-00

1
Out of stock

17

BOLT, FLANGE

95817-06016-00

—

$1.49

In stock

18

COLLAR (899 INTAKE)

90387-06500-00

—
Out of stock

19

BOLT, WITH WASHER(55K)

90119-06117-00

—

$3.74

In stock

20

COVER

3RW-2177F-00-00

1
Out of stock

21

PLATE, EPA U49

4BE-2179V-00-00

1
Out of stock

22

TOOL KIT

3RW-28100-01-00

1
Out of stock

23

BOX, TOOL

55V-28173-01-00

—
Out of stock

24

LID

55V-28185-00-00

—
Out of stock

25

DAMPER 5

3RW-28267-00-00

—
Out of stock

26

BOLT, WITH WASHER(8V7)

90119-06108-00

—

$6.68

In stock
