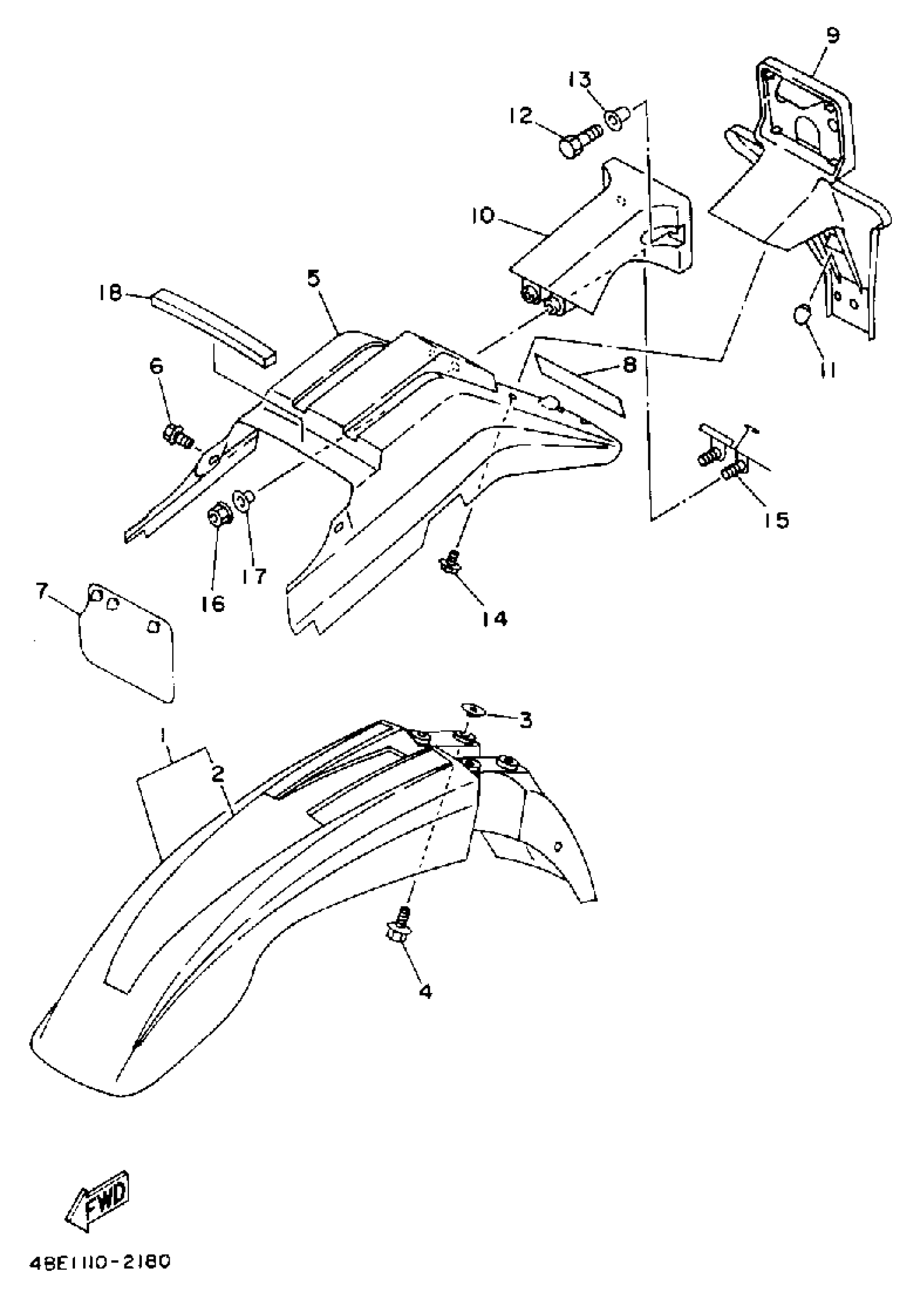

Yamaha XT225DC (SEROW CA) 1992 FENDER Diagram

#

Description
Price

1

FENDER, FRT

3RW-21511-30-00

Unavailable

2

. GRPHC SET, FRT FNDR FRONT FENDER

3RW-21570-20-00

Unavailable

3

COLLAR (8G8)

90387-06681-00

$6.30

4

BOLT, WITH WASHER (10V)

90119-06063-00

$5.98

5

FENDER,REAR

99999-03283-00

Unavailable

6

BOLT, WITH WASHER

90119-06152-00

$2.61

7

FLAP

34X-21691-00-00

$17.73

8

EMBLEM, YAMAHA

3WF-2153E-11-00

$9.85

9

BRACKET, LICENCE

4BE-84551-00-00

$96.33

10

DAMPER

4BE-84527-00-00

Unavailable

11

DAMPER 2

42U-21639-00-00

Unavailable

12

BOLT, HEXAGON

97017-06025-00

$2.84

13

COLLAR 437216330000

90387-07391-00

Unavailable

14

BOLT, FLANGE

95817-06016-00

$1.49

15

CLAMP, WIRE

4BE-21637-00-00

Unavailable

16

NUT, HEXAGON

95380-06600-00

$4.01

17

COLLAR (8G8)

90387-06681-00

$6.30

18

DAMPER

3RW-21639-00-00

Unavailable
