1992 Yamaha Serow CA (XT225DC) Frame Diagram

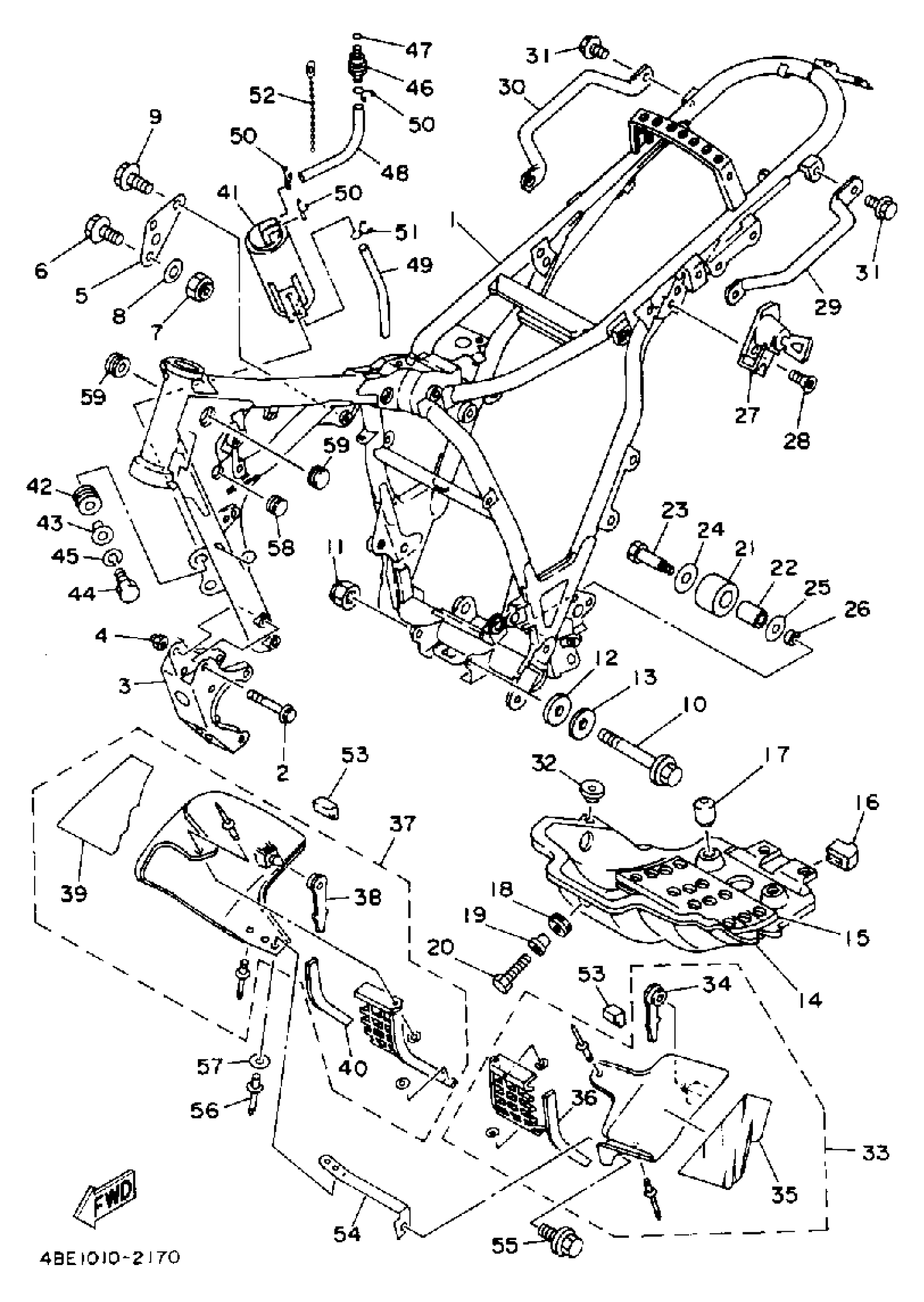

Find the part on the Frame diagram for your 1992 Yamaha Serow CA (XT225DC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRAME
4BE-21110-00-P0
1
FRAME
4BE-21110-10-P0
3
STAY, ENGINE 3
4BE-21316-00-P0
5
STAY, ENGINE 2
1KH-21315-01-00
14
PROTECTOR, ENGINE
4VW-21471-00-00
15
DAMPER, RUBBER 1
1KH-21485-00-00
16
DAMPER, RUBBER 1
36X-21485-00-00
21
TENSIONER
30X-22178-00-00
25
WASHER, PLATE(8AT)
90201-081R9-00
27
HELMET HANGER ASSY
5H0-21308-01-00
28
SCREW, COUNTERSUNK (21V)
90151-06025-00
29
HANDLE, STANDING
4BE-21165-00-00
30
STAY, REAR
4BE-21275-00-00
32
SEAL, RIGHT SIDE COVER
2J5-21732-00-00
33
SCOOP COMP, AIR 1 B
3RW-Y217W-30-00
34
GROMMET(1KH)
90480-14448-00
35
. GRAPHIC, FUEL T3
3RW-24246-31-00
36
. DAMPER 2
3RW-2139U-00-00
37
SCOOP COMP, AIR 2
4BE-Y217X-00-00
38
GROMMET(1KH)
90480-14448-00
39
. GRAPHIC
3RW-24247-31-00
40
. DAMPER
3RW-2139X-00-00
43
COLLAR(52E)
90387-063G3-00
45
WASHER, SPRING
92907-06100-00
51
CLIP(1JH)
90467-11106-00
54
BRACKET, COVER
4BE-2139T-00-00
56
RIVET,BLIND
90267-40080-00
58
PLUG(2GH)
90338-15202-00
59
PLUG
90338-24260-00
