1978 Yamaha XS750 (XS750E) Speedometer - Tachometer Diagram

← All diagrams

Find the part on the Speedometer - Tachometer diagram for your 1978 Yamaha XS750 (XS750E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

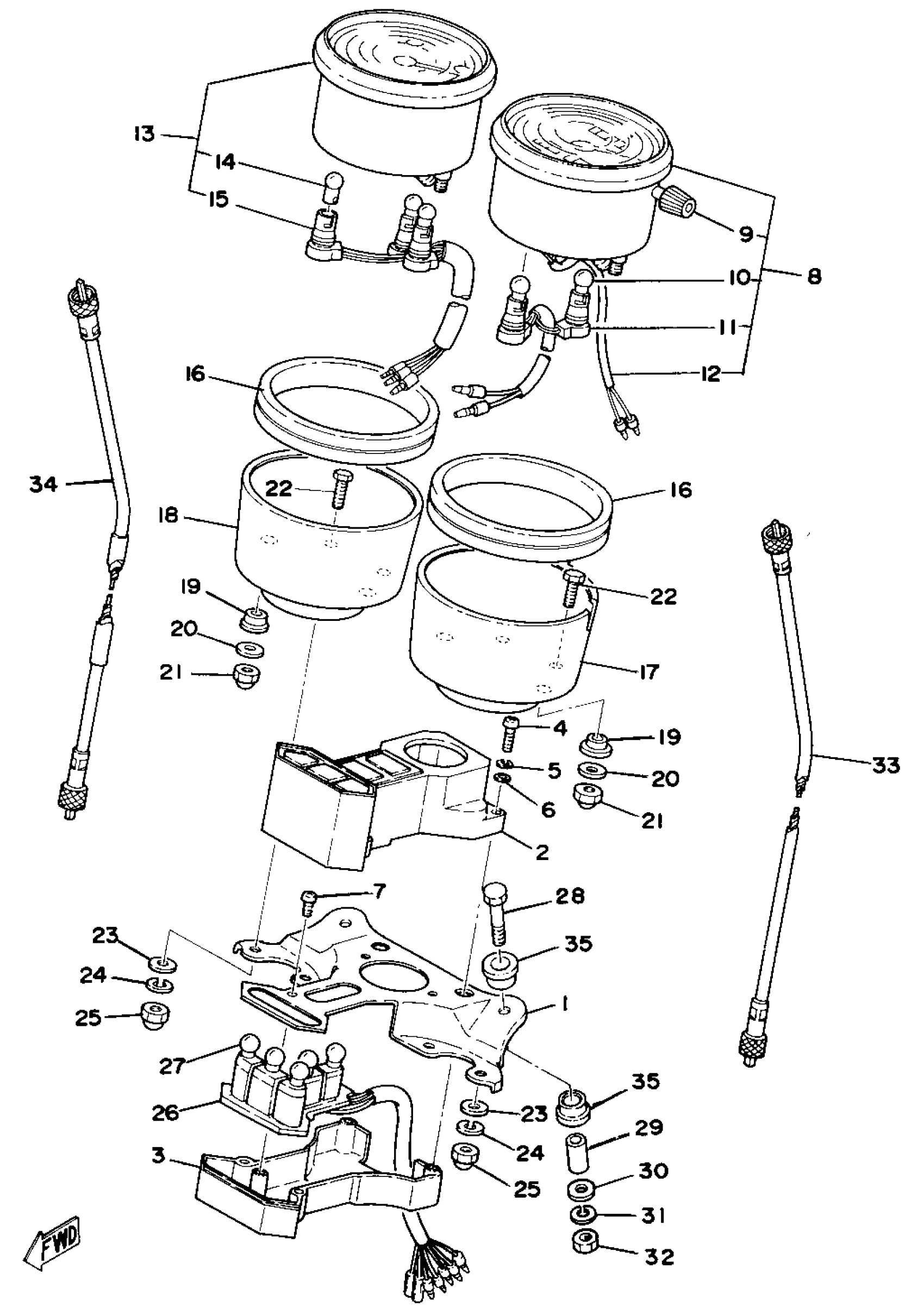

1978 Yamaha XS750 (XS750E) Speedometer - Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, METER

(1J3-83519-00-00)

1
Out of stock

2

PILOT BOX, UPPER

1J7-83568-71-00

1
Out of stock

3

PILOT BOX, LOWER

1J3-83569-71-00

1
Out of stock

4

SCREW, PAN HEAD

98517-04020-00

1

$6.18

In stock

5

WASHER(6TA)

92907-04100-00

1

$5.98

In stock

6

WASHER(JF2)

92907-04600-00

1

$1.23

In stock

7

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

8

SPEEDOMETER ASSEMBLY

(1J3-83570-21-00)

1
Out of stock

8

SPEEDOMETER ASSEMBLY

1J3-83570-71-00

1
Out of stock

9

KNOB, TRIP METER

4SV-83578-00-00

1
Out of stock

10

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

11

SOCKET, METER

(584-83536-01-00)

1
Out of stock

12

. SENDER

1J3-83556-01-00

1
Out of stock

13

TACHOMETER ASSEMBLY

2K3-83540-F0-00

1
Out of stock

14

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

15

SOCKET CORD ASSEMBLY

(1J3-83520-01-00)

1
Out of stock

16

DAMPER

3H3-83513-00-00

—
Out of stock

17

COVER, SPEEDOMETER

584-83507-00-00

1
Out of stock

18

COVER, TACHOMETER

584-83508-00-00

1
Out of stock

19

DAMPER, METER COVER FITTING

584-83523-00-00

—
Out of stock

20

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

21

NUT (CROWN)

95303-05800-00

1
Out of stock

22

BOLT

584-83546-00-00

—
Out of stock

23

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

24

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

25

NUT (J17)

95380-06800-00

—

$6.74

In stock

26

SOCKET CORD ASSEMBLY

(1J7-83509-70-00)

1
Out of stock

27

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

28

BOLT(8BC)

97017-06040-00

—
Out of stock

29

COLLAR (877)

90387-06249-00

—
Out of stock

30

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

31

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

32

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

33

SPEEDOMETER CABLE ASSY

16M-83550-01-00

—
Out of stock

34

TACHOMETER CABLE

2G2-83560-00-00

1
Out of stock

35

DAMPER, METER BRACKET

584-83541-00-00

—
Out of stock
