1978 Yamaha XS750 (XS750E) Electrical 2 Diagram

← All diagrams

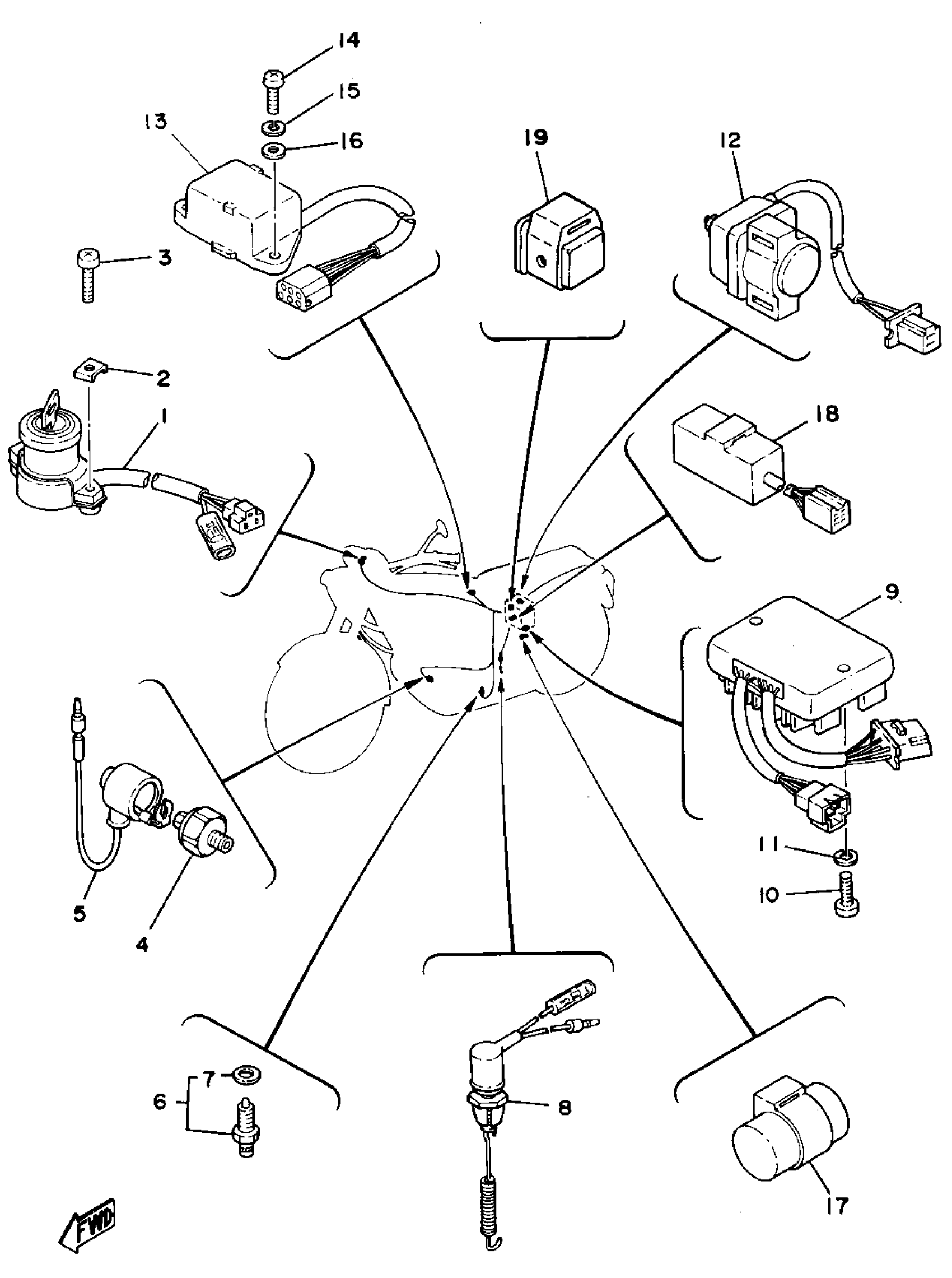

Find the part on the Electrical 2 diagram for your 1978 Yamaha XS750 (XS750E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha XS750 (XS750E) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNAVAILABLE IN PRICE BOOK

1J3-82508-50-00

1
Out of stock

1

MAIN SWITCH ASSEMBLY

2F3-82508-50-00

1
Out of stock

1

MAIN SWITCH ASSEMBLY

584-82508-40-00

1
Out of stock

2

WASHER, SPECIAL

533-82517-00-00

1
Out of stock

3

SCREW, PAN HEAD(4MY)

98507-05018-00

1

$2.48

In stock

4

OIL PRESSURE SWITCH ASSEMBLY

341-82504-02-00

1
Out of stock

5

WIRE, LEAD

(1J7-82507-00-00)

1
Out of stock

6

NEUTRAL SWITCH ASSY

4GY-82540-10-00

1
Out of stock

7

GASKET

296-82543-00-00

—

$4.40

In stock

8

STOP SWITCH

1J7-82530-02-00

1
Out of stock

9

RECTIFIER/REG ASSEMBLY

1T4-81960-A0-00

1
Out of stock

10

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

11

WASHER, SPRING

92907-06100-00

1
Out of stock

12

STARTER SWITCH ASSEMBLY

1J7-81940-10-00

1
Out of stock

13

RSRV LIGHTING UNIT ASSEMBLY

1T3-84308-00-00

1
Out of stock

14

SCREW PAN HEAD

98580-06020-00

—

$5.10

In stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

17

FLASHER RELAY ASSY

2NV-83350-00-00

1
Out of stock

18

FLASHER CANCELING UNIT

1A0-83395-03-00

1
Out of stock

19

RELAY ASSEMBLY

360-81950-10-00

1
Out of stock
