1982 Yamaha XS400 (XS400J) Meter Diagram

← All diagrams

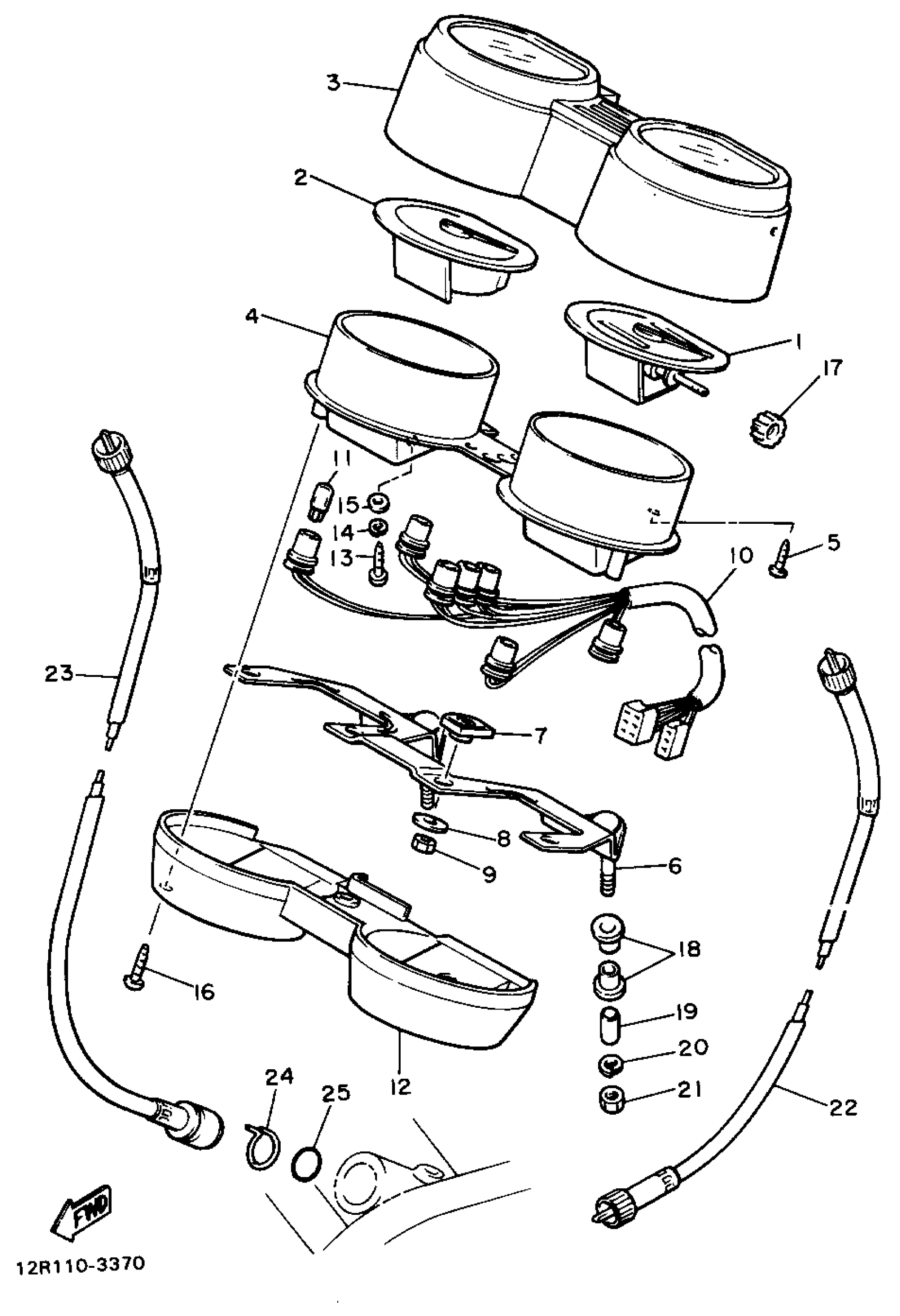

Find the part on the Meter diagram for your 1982 Yamaha XS400 (XS400J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XS400 (XS400J) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

12R-83570-A0-00

1
Out of stock

3

TACHOMETER ASSEMBLY

12R-83540-00-00

1
Out of stock

3

COVER, METER

12R-83559-A0-00

1
Out of stock

4

CASE, INNER

12R-8353H-00-00

1
Out of stock

5

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

6

BRACKET, METER

12R-83519-00-00

1
Out of stock

7

DAMPER

1FG-83523-00-00

—

$8.82

In stock

8

WASHER, PLATE (8J0)

90201-05725-00

—

$6.80

In stock

9

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

10

SOCKET CORD ASSEMBLY

12R-83509-00-00

1
Out of stock

11

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

12

COVER, METER 2

12R-83579-00-00

1
Out of stock

13

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

14

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

15

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

16

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

17

KNOB, TRIP METER

1AE-83578-00-00

—
Out of stock

18

DAMPER

1JK-83541-00-00

—
Out of stock

19

COLLAR (877)

90387-06249-00

—
Out of stock

20

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

21

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

22

SPEEDOMETER CABLE ASSY

4V5-83550-02-00

—

$40.63

In stock

23

TACHOMETER CABLE

12R-83560-00-00

1
Out of stock

24

RING, STOP

102-25137-00-00

—
Out of stock

25

O-RING (26H)

93210-14579-00

—

$5.69

In stock
