1982 Yamaha XS400 (XS400J) Headlight Diagram

← All diagrams

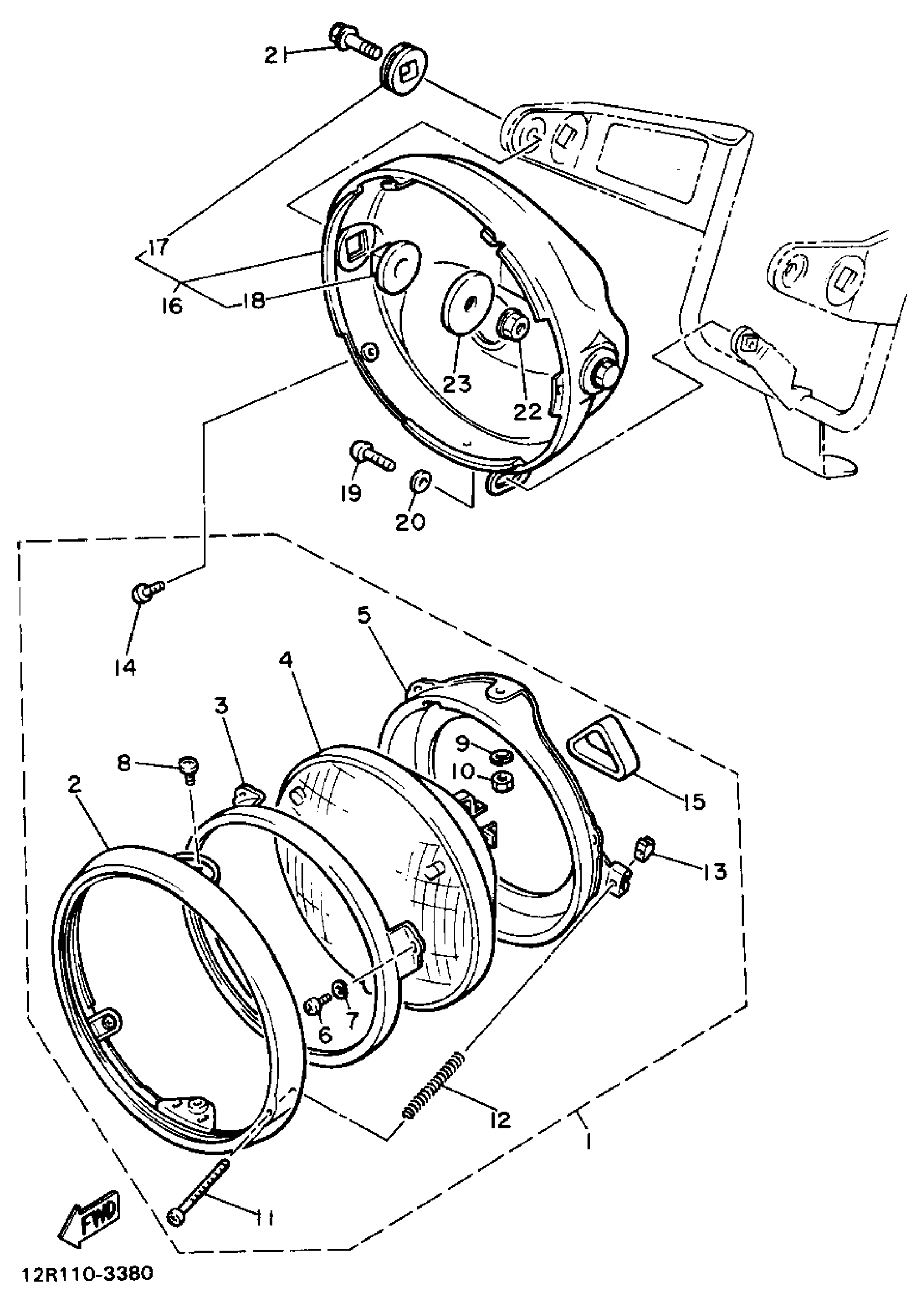

Find the part on the Headlight diagram for your 1982 Yamaha XS400 (XS400J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XS400 (XS400J) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSEMBLY

12R-84310-60-00

1
Out of stock

2

. RIM, HEADLIGHT

12R-84315-00-00

1
Out of stock

3

RING, RETAINING

2F9-84395-00-00

1
Out of stock

4

. LENS ASSEMBLY

341-84320-60-00

1
Out of stock

5

RING, MOUNTING

2F9-84394-00-00

—
Out of stock

6

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

7

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

8

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

9

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

10

NUT(6TA)

95307-04600-00

1

$6.69

In stock

11

SCREW, PANHEAD (4G7)

98580-04055-00

—

$7.02

In stock

12

SPRING, ADJUST

341-84332-60-00

1

$8.54

In stock

13

NUT, ADJUST

198-84334-60-00

1

$6.43

In stock

14

SCREW, PAN

98517-05012-00

1

$3.91

In stock

15

. COVER, SOCKET

341-84397-61-00

1
Out of stock

16

BODY ASSEMBLY

12R-84330-00-00

1
Out of stock

17

DAMPER, HEAD LAMP

584-84345-60-00

—
Out of stock

18

COLLAR 2

584-84338-60-00

—
Out of stock

19

SCREW, PAN

98507-06010-00

—
Out of stock

20

WASHER, PLATE 8221447500

90201-06057-00

—
Out of stock

21

BOLT, SMALL FLANGE

95027-08030-00

—
Out of stock

22

NUT, FLANGE

95704-08500-00

—
Out of stock

23

WASHER

90209-08008-00

—
Out of stock
