1982 Yamaha XS400 (XS400J) Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 1982 Yamaha XS400 (XS400J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

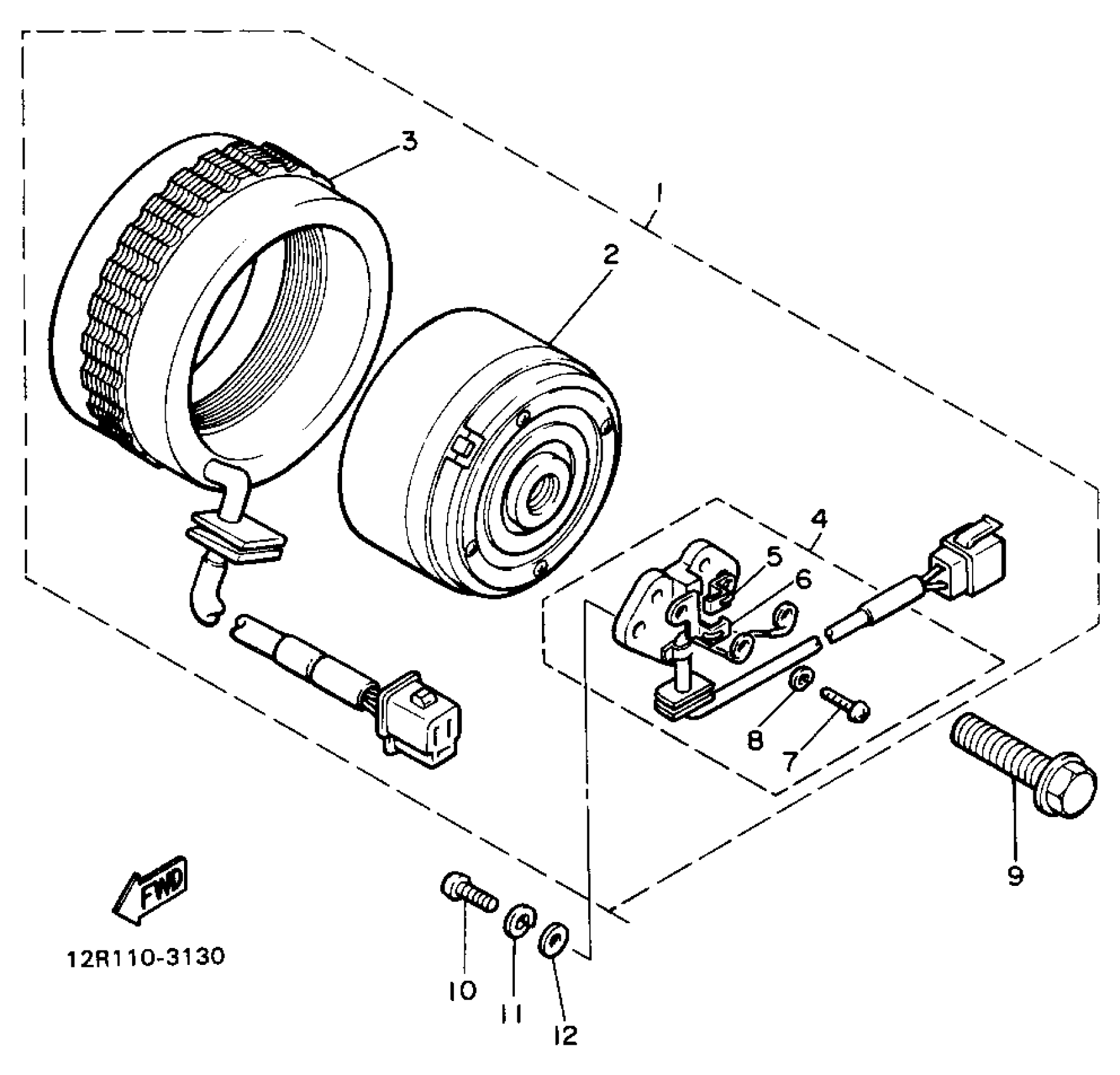

1982 Yamaha XS400 (XS400J) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AC GENERATOR ASSEMBLY

12R-81600-10-00

1
Out of stock

2

. ROTOR ASSEMBLY

2WY-81650-10-00

1
Out of stock

3

. STATOR ASSEMBLY

12R-81610-10-00

1
Out of stock

4

. BRUSH HOLDER ASSEMBLY

46X-81619-10-00

1
Out of stock

5

.. BRUSH 1

46X-81611-10-00

1
Out of stock

6

.. BRUSH 2

4G0-81612-10-00

1
Out of stock

7

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

8

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

9

BOLT, WASHER BASED (4H7)

90105-10152-00

1
Out of stock

10

SCREW, PAN

98507-06014-00

1

$6.18

In stock

11

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

12

WASHER, PLATE (4H7)

90201-061A5-00

1

$5.86

In stock
