1978 Yamaha XS400 (XS400E) Electrical 2 Diagram

← All diagrams

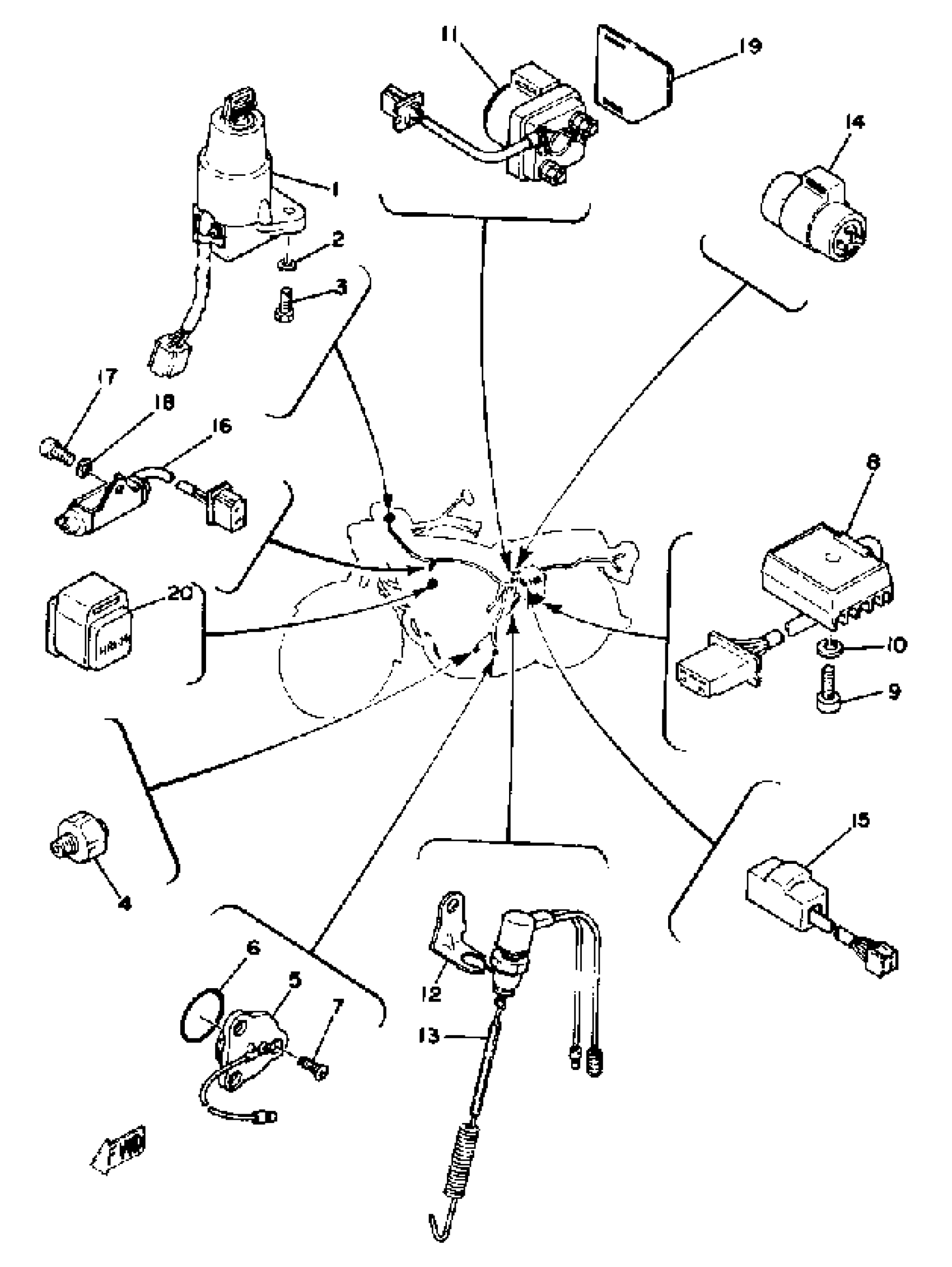

Find the part on the Electrical 2 diagram for your 1978 Yamaha XS400 (XS400E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha XS400 (XS400E) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MAIN SWITCH STEERING LOCK

3JV-82501-00-00

1
Out of stock

2

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

3

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

4

OIL PRESSURE SWITCH ASSEMBLY

341-82504-02-00

1
Out of stock

5

NEUTRAL SWITCH ASSY

1L9-82540-00-00

1
Out of stock

6

O-RING (371)

93210-29196-00

1

$6.45

In stock

7

SCREW, FLAT

98707-05012-00

1
Out of stock

8

RECTIFIER ASSEMBLY

1L9-81970-60-00

1
Out of stock

9

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

10

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

11

STARTER SWITCH ASSEMBLY

1J7-81940-10-00

1
Out of stock

12

STAY, STOP SWITCH

(1L9-82539-01-00)

1
Out of stock

13

STOP SWITCH ASSEMBLY

1L9-82530-02-00

1
Out of stock

14

FLASHER RELAY ASSY

2NV-83350-00-00

1
Out of stock

15

FLASHER CANCELING UNIT

1A0-83395-03-00

1
Out of stock

16

CONDENSER 1

1L9-81625-50-00

1
Out of stock

17

SCREW, PAN

98507-06014-00

—

$6.18

In stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

19

COVER, TERMINAL

(1L9-81916-00-00)

1
Out of stock

20

RELAY ASSEMBLY

360-81950-10-00

1
Out of stock
