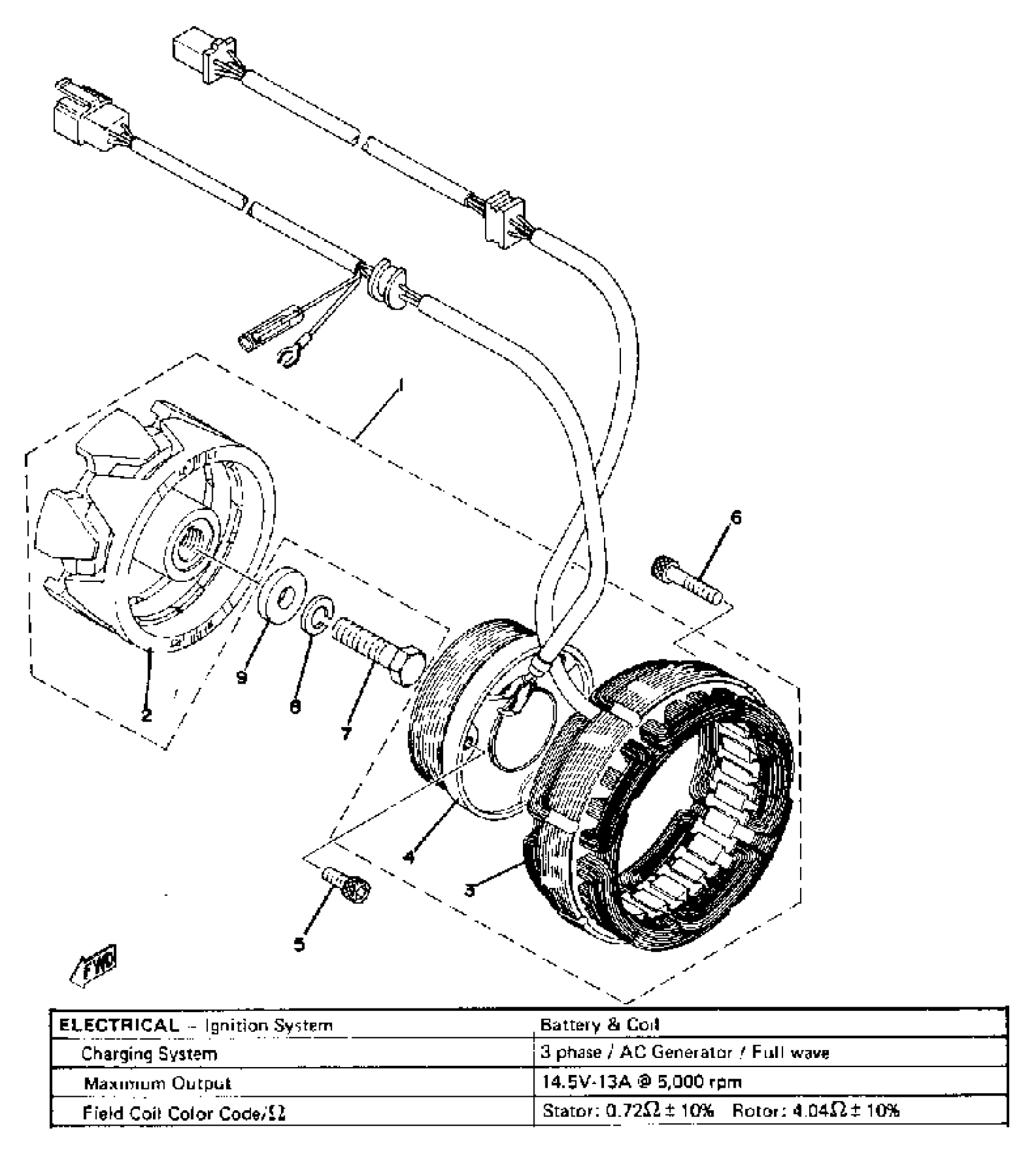

Find the part on the A - C - Generator diagram for your 1978 Yamaha XS400 (XS400E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha XS400 (XS400E) A - C - Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AC GENERATOR ASSEMBLY

(1L9-81600-50-00)

1
Out of stock

2

ROTOR ASSEMBLY

(1L9-81650-50-00)

1
Out of stock

3

. STATOR ASSEMBLY

1L9-81610-50-00

1
Out of stock

4

FIELD COIL ASSEMBLY

(4R4-81660-50-00)

1
Out of stock

5

BOLT,SOCKET

91317-06016-00

1

$1.16

In stock

6

1

$3.82

In stock

7

BOLT

90101-10105-00

1
Out of stock

8

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

9

WASHER, PLATE(52H)

90201-102J5-00

—

$13.94

In stock
