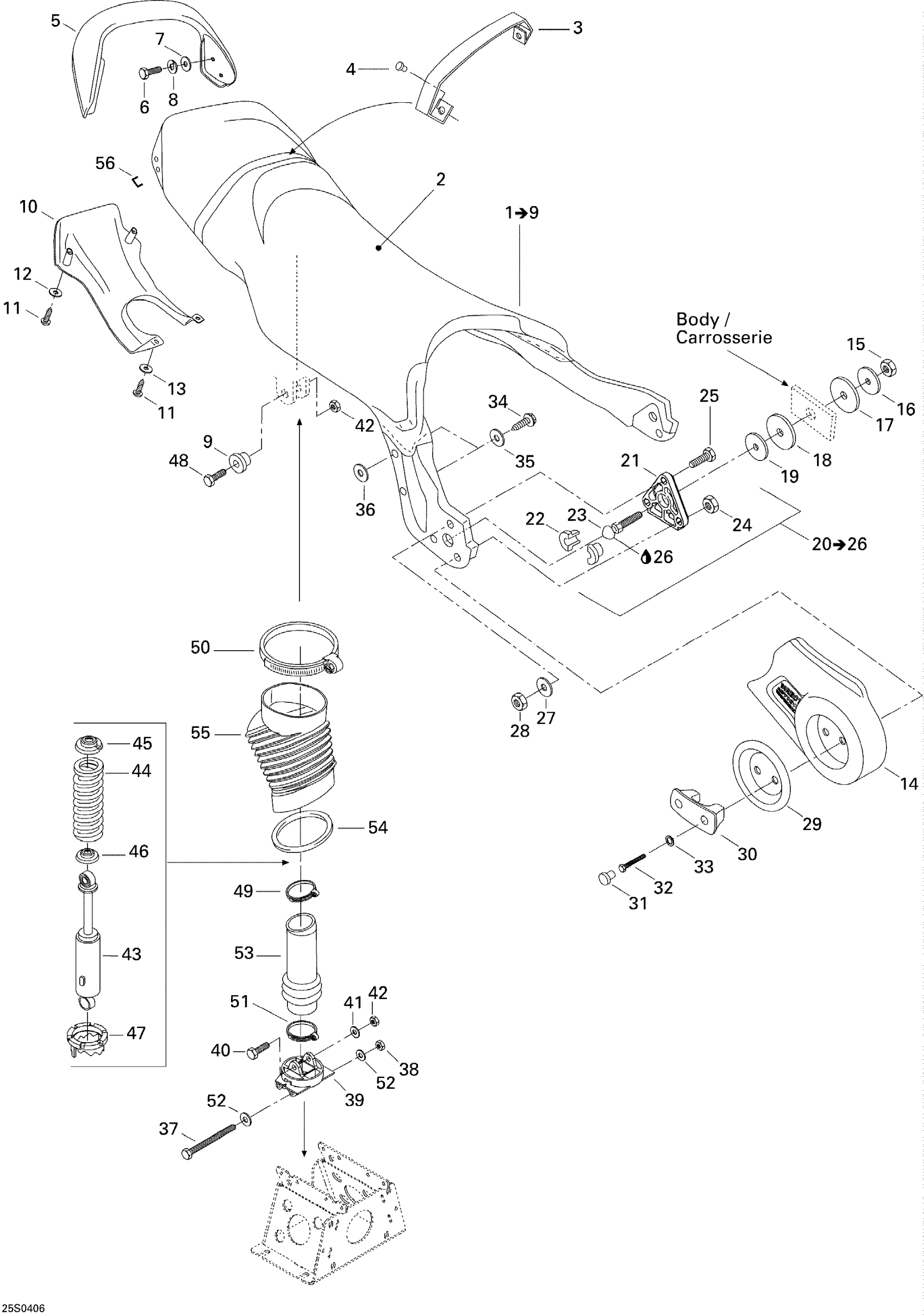

Sea-doo XP DI, 2004 Seat Diagram
#
1
Seat, Silver | Includes 1 to 9
269001139
Unavailable
2
Cover & Foam, Silver
269001140
Unavailable
3
Strap, Silver
269001141
Unavailable
4
Rivet | Model-T3
293150067
Unavailable
5
Grab Handle
269000434
Unavailable
6
Hex. Screw M8 X 25, Scotch Grip
207382560
Unavailable
7
Stainless, Flat Washer 8 mm
234081600
Unavailable
8
Lock Washer 8 mm, Stainless
234181601
Unavailable
9
Spacer 12 mm
269000427
Unavailable
10
REAR BODY COVER - Call your local BRP dealership
269000429
Unavailable
11
HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership
243041660
Unavailable
12
Flat Washer M5, Stainless
234051600
Unavailable
13
Flat Washer 5 mm, Stainless
234052600
Unavailable
14
LH FRAME COVER - Call your local BRP dealership
269000432
Unavailable
14
RH Frame Cover
269000431
Unavailable
15
Hex. Elastic Nut M8
232581600
Unavailable
16
Washer
269000137
Unavailable
17
RUBBER WASHER - Call your local BRP dealership
250200028
Unavailable
18
RUBBER WASHER - Call your local BRP dealership
293830029
Unavailable
19
WASHER - Call your local BRP dealership
211200030
Unavailable
20
SEAT PIVOT - Call your local BRP dealership | Includes 20 to 26
269000448
Unavailable
21
Not Available As Spare Part - Friction Washer
Unavailable
22
Not Available As Spare Part - Friction Washer
Unavailable
23
Not Available As Spare Part - Friction Washer
Unavailable
24
Hex. Elastic Stop Nut M6
232561600
Unavailable
25
Hex. Screw M6 X 30
207063044
Unavailable
26
Synthetic Grease, 400 G
293550010
Unavailable
27
Stainless Flat Washer M6
234061600
Unavailable
28
Hex. Elastic Stop Nut M6
232561600
Unavailable
29
Shell
292000438
Unavailable
30
Seat Bow-Eye
269000430
Unavailable
31
Black, Cap
277000203
Unavailable
32
Hex. Screw M6 X 50
207165060
Unavailable
33
Stainless Flat Washer M6
234061600
Unavailable
34
Hex. Flange Screw K40 X 25
241142560
Unavailable
35
Flat Washer 4 mm, Stainless
234042600
Unavailable
36
Flat Washer 4 mm, Stainless
234042600
Unavailable
37
HEX. SCREW M6 X 120 - Call your local BRP dealership
230062060
Unavailable
38
Hex. Elastic Stop Nut M6
232561600
Unavailable
39
Lower Shock Support
291001198400
Unavailable
40
Hex. Screw M10 X 60
207006060
Unavailable
41
Flat Washer 10 mm, Stainless
234001600
Unavailable
42
HEX. ELASTIC NUT M10 - Call your local BRP dealership
232501600
Unavailable
43
Shock
291001244
Unavailable
44
Spring
291001245
Unavailable
45
Spring Stopper
706200881
Unavailable
46
GUIDE_SPRING - Call your local BRP dealership
503165100
Unavailable
47
ADJUSTER RING - Call your local BRP dealership
291001088
Unavailable
48
HEX. SCREW M10 X 70 - Call your local BRP dealership
207007060
Unavailable
49
TRIDON GEAR CLAMP - Call your local BRP dealership
293650006
Unavailable
50
Tridon Clamp
293650054
Unavailable
51
TRIDON GEAR CLAMP - Call your local BRP dealership
293650006
Unavailable
52
Flat Washer M6, Stainless
234062600
Unavailable
53
Shock Bellow
291001247
Unavailable
54
Retainer Ring
293000012
Unavailable
55
Outer Bellow
291001016
Unavailable
56
Staple
293730005
Unavailable
