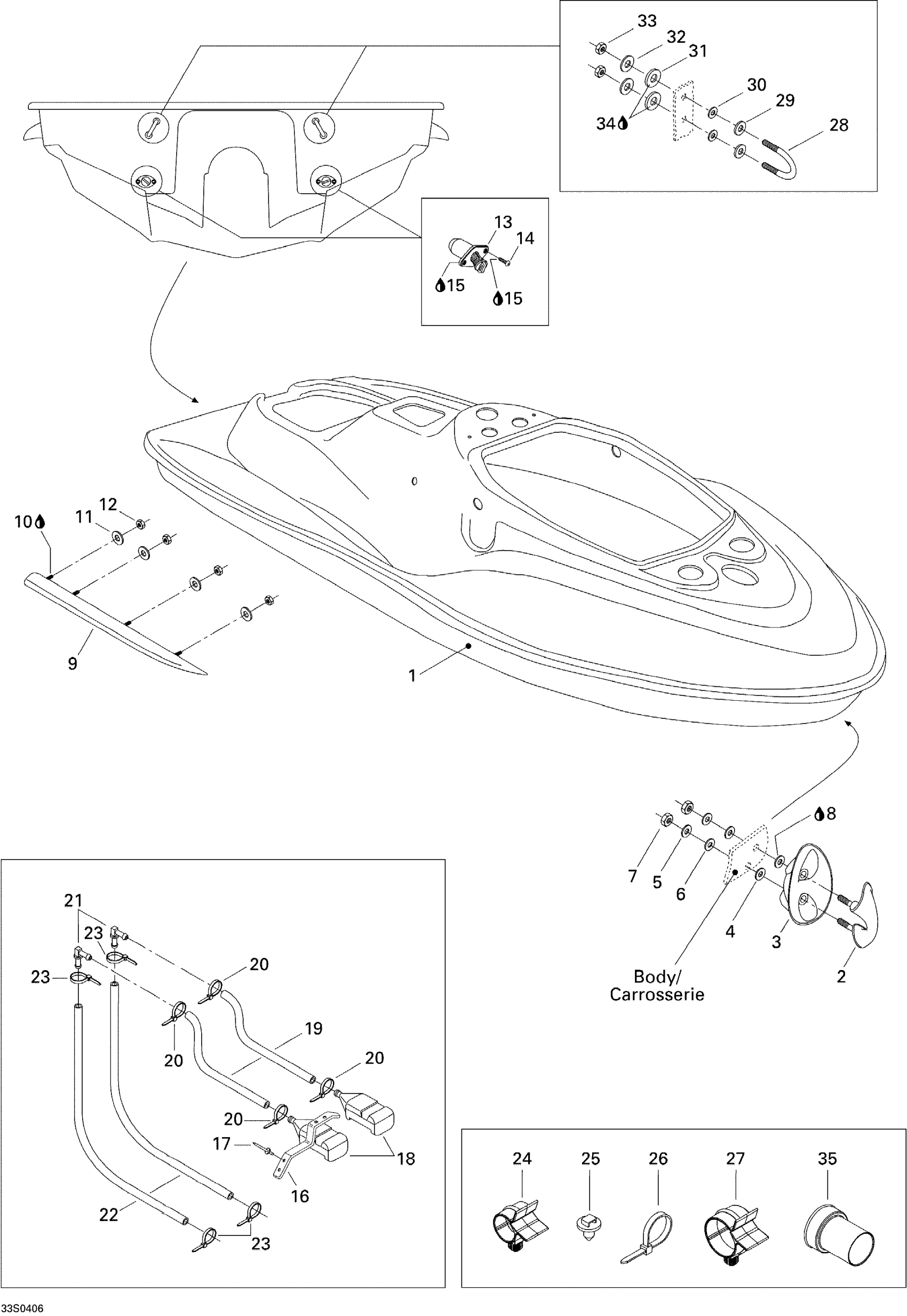

Sea-doo XP DI, 2004 Hull Diagram
#
1
Not Available As Spare Part - Friction Washer
Unavailable
2
Bow-Eye, Viper Red
292000867
Unavailable
3
Shell
292000501
Unavailable
4
Stainless, Flat Washer 8 mm
234081600
Unavailable
5
Flat Washer 8 mm, Stainless
250200175
Unavailable
6
Rubber Washer
293830037
Unavailable
7
Hex. Elastic Nut M8
232581600
Unavailable
8
Silicone Sealant 51388, 300 ml
296000309
Unavailable
9
RH SPONSON - Call your local BRP dealership
292000411
Unavailable
LH SPONSON - Call your local BRP dealership
292000412
Unavailable
10
Silicone Sealant 51388, 300 ml
296000309
Unavailable
11
Flat Washer M6, Stainless
234062600
Unavailable
12
Hex. Elastic Stop Nut M6
232561600
Unavailable
13
Drain Plug
292001252
Unavailable
14
Hex. Screw 10-14 X 7/8”
211000023
Unavailable
15
Silicone Sealant 51388, 300 ml
296000309
Unavailable
16
LH SPRING CLIP - Call your local BRP dealership
292000398
Unavailable
17
Avdel Rivet 3/16"
293150037
Unavailable
18
Bailer Screen
292000688
Unavailable
19
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
Unavailable
20
Tie Wrap 94 mm | 4X4
293750001
Unavailable
21
ELBOW FITTING 90 - Call your local BRP dealership
293710057
Unavailable
22
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
Unavailable
23
Tie Wrap 94 mm | 4X4
293750001
Unavailable
24
Cable Retainer
275500527
Unavailable
25
Mount Dart
293730040
Unavailable
26
Tie-Rap 180 mm
414115200
Unavailable
27
Retainer
275500590
Unavailable
28
U-CLAMP - Call your local BRP dealership
292000011
Unavailable
29
Flat Washer M8.5 x 18
293050001
Unavailable
30
Flat Washer 8 mm, Nylon
234081100
Unavailable
31
Rubber Washer
293830037
Unavailable
32
Flat Washer 8 mm, Stainless
250200175
Unavailable
33
Hex. Elastic Nut M8
232581600
Unavailable
34
Silicone Sealant 51388, 300 ml
296000309
Unavailable
35
HULL INSERT, 33 MM - Call your local BRP dealership
292000075
Unavailable
