1983 Suzuki XN85-D OIL Cooler Diagram

← All diagrams

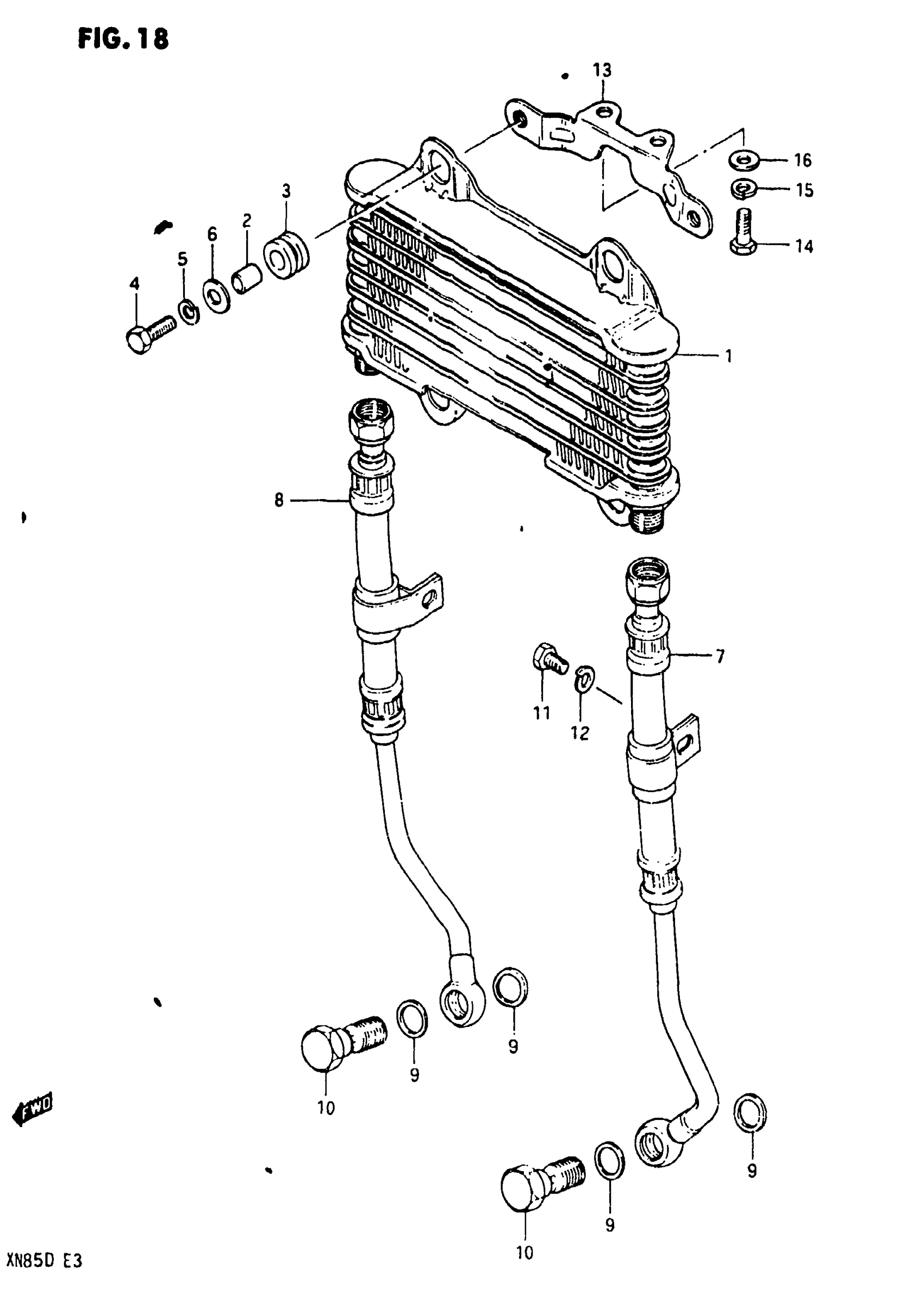

Find the part on the OIL Cooler diagram for your 1983 Suzuki XN85-D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki XN85-D OIL Cooler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COOLER ASSY, OIL

16600-09300

1
Out of stock

2

SPACER (6.5X10X10) This part replaces 09180-06030.

09180-06310

4
Out of stock

3

CUSHION

09320-10015

4
Out of stock

4

4

$2.48

In stock

5

4

$2.28

In stock

6

4

$1.90

In stock

7

HOSE, OIL LH

16460-09301

1
Out of stock

8

HOSE, OIL RH

16470-09301

1
Out of stock

9

WASHER

09168-14011

4

$1.75

In stock

10

UNION BOLT, ENGINE SIDE This part replaces 09360-14002.

09360-14005

2
Out of stock

11

BOLT This part replaces 01107-06108.

01500-06107

2
Out of stock

12

2

$2.28

In stock

13

BRACKET

16620-09300

1
Out of stock

14

2

$2.10

In stock

15

2

$2.28

In stock

16

2

$1.84

In stock
