1983 Suzuki XN85-D Crankcase Cover Diagram

← All diagrams

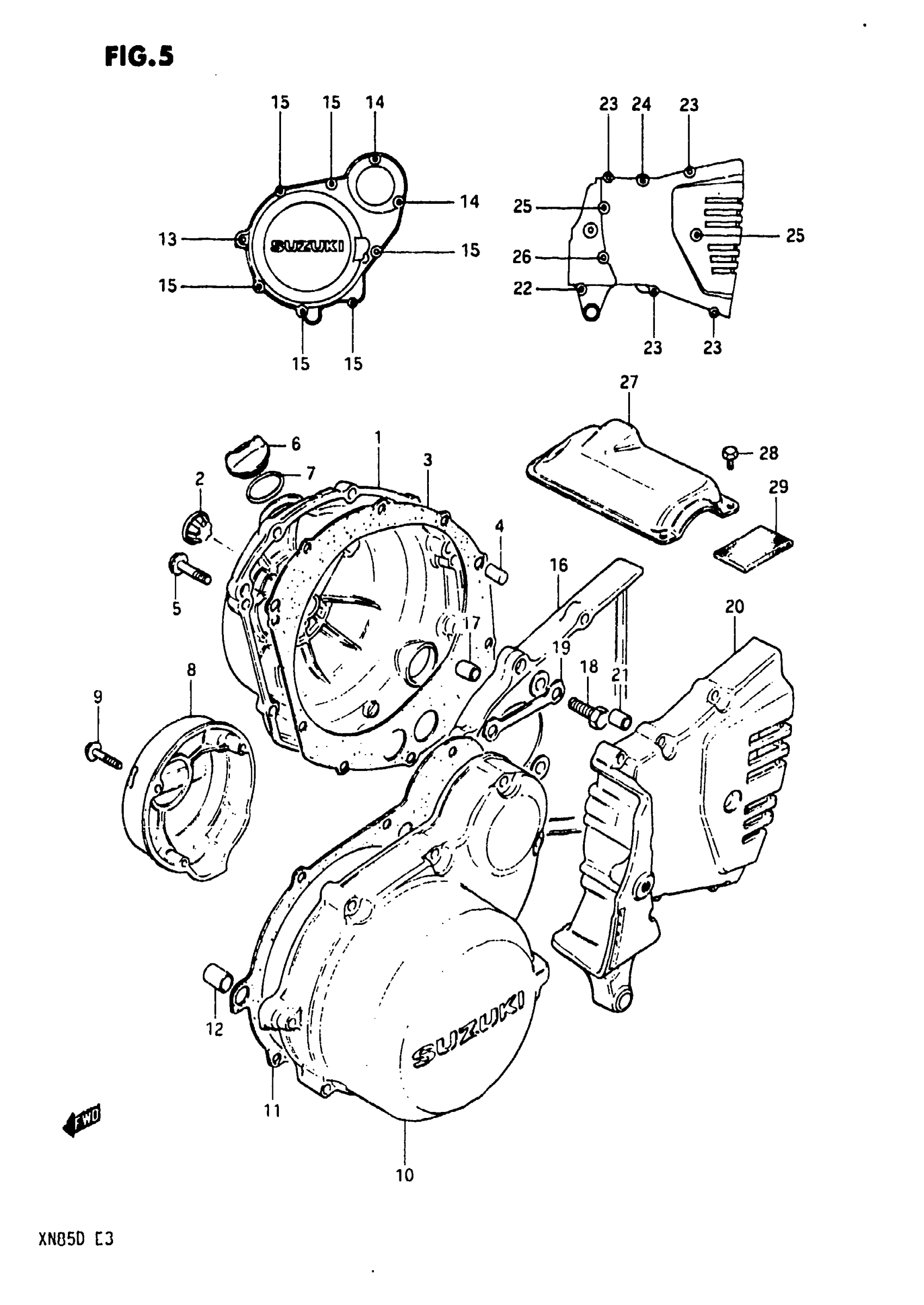

Find the part on the Crankcase Cover diagram for your 1983 Suzuki XN85-D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki XN85-D Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH | Includes Item(s) 2

11340-09302

1
Out of stock

2

LENS, OIL LEVEL

11971-33210

1
Out of stock

3

NO DESCRIPTION AVAILABLE This part replaces 11482-09300.

11482-09301-H17

1
Out of stock

4

PIN

09202-09004

2
Out of stock

5

BOLT This part replaces 01547-06308.

01547-06307

10
Out of stock

6

CAP, OIL FILLER This part replaces 09259-30003.

09200-30810

1
Out of stock

7

O RING (D:3.1,ID:26.4) This part replaces 09280-27002.

09280-26006

1
Out of stock

8

COVER, CONTACT BREAKER

11381-09300

1
Out of stock

9

BOLT This part replaces 01547-05308.

01547-05307

3
Out of stock

10

COVER, GENERATOR

11351-09300

1
Out of stock

11

NO DESCRIPTION AVAILABLE This part replaces 11483-09300.

11483-09301-H17

1
Out of stock

12

PIN This part replaces 09206-13001.

04211-13189

1
Out of stock

13

BOLT This part replaces 01547-06458.

01547-06457

1
Out of stock

14

BOLT This part replaces 01547-06408.

01547-06407

2
Out of stock

15

BOLT This part replaces 01547-06358.

01547-06357

6
Out of stock

16

COVER, ENGINE SPROCKET INNER

11361-09302

1
Out of stock

17

PIN

04211-09129

1
Out of stock

18

BOLT This part replaces 01107-08258.

01500-08257

4
Out of stock

19

WASHER

09169-08033

2
Out of stock

20

COVER, ENGINE SPROCKET OUTER

11370-09302

1
Out of stock

21

PIN

04211-09129

2
Out of stock

22

BOLT This part replaces 01547-06608.

01547-06607

1
Out of stock

23

BOLT This part replaces 01547-06308.

01547-06307

4
Out of stock

24

BOLT This part replaces 01547-06358.

01547-06357

1
Out of stock

25

BOLT This part replaces 01547-06458.

01547-06457

2
Out of stock

26

BOLT This part replaces 01547-06708.

01547-06707

1
Out of stock

27

COVER, STARTER MOTOR

11382-09300

1
Out of stock

28

BOLT This part replaces 01547-05088.

01547-05087

3
Out of stock

29

DAMPER

11362-34200

1
Out of stock
