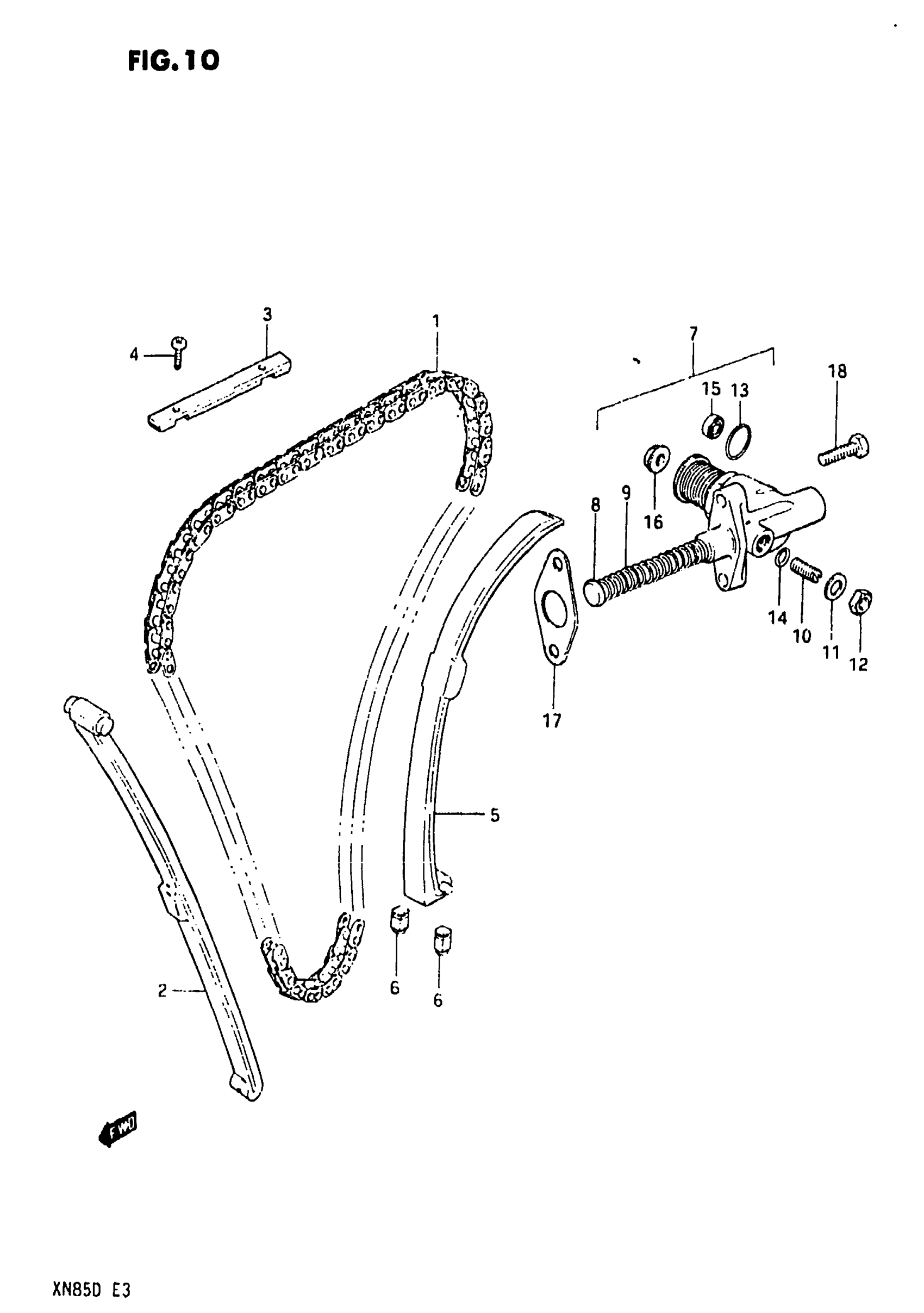

Suzuki XN85-D (1983) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAM SHAFT DRIVE (116L)

12760-45040

$166.47

2

GUIDE, CAM CHAIN NO.1

12771-34200

Unavailable

3

GUIDE, CAM CHAIN This part replaces 12782-49140.

12782-33200

Unavailable

4

SCREW This part replaces 02112-05108.

02112-05107

$1.43

5

TENSIONER, CAM CHAIN

12810-34201

Unavailable

6

CUSHION

12814-44101

$7.45

7

ADJUSTER ASSY,T | Includes Item(s) 8 - 16 This part replaces 12830-09300.

12830-0930V

Unavailable

8

PUSH ROD

12833-47001

Unavailable

9

SPRING

09440-12017

$2.67

10

SCREW

12838-45001

$9.50

11

WASHER This part replaces 08322-11088.

08322-01087

$1.86

12

NUT This part replaces 08310-12088.

08310-00087

$1.83

13

O RING

09280-21013

$2.29

14

.O RING (D:1.9,ID:5.7)

09280-06005

$1.45

15

OIL SEAL

09284-10006

$3.13

16

NUT This part replaces 08316-16068.

08319-31067

$2.01

17

GKT,TENSIONER A This part replaces 12837-47000.

12837-47010

$3.97

18

BOLT, STARTING MOTOR This part replaces 09128-06024.

09103-06212

$2.53
