1983 Suzuki XN85-D Cylinder Head Diagram

← All diagrams

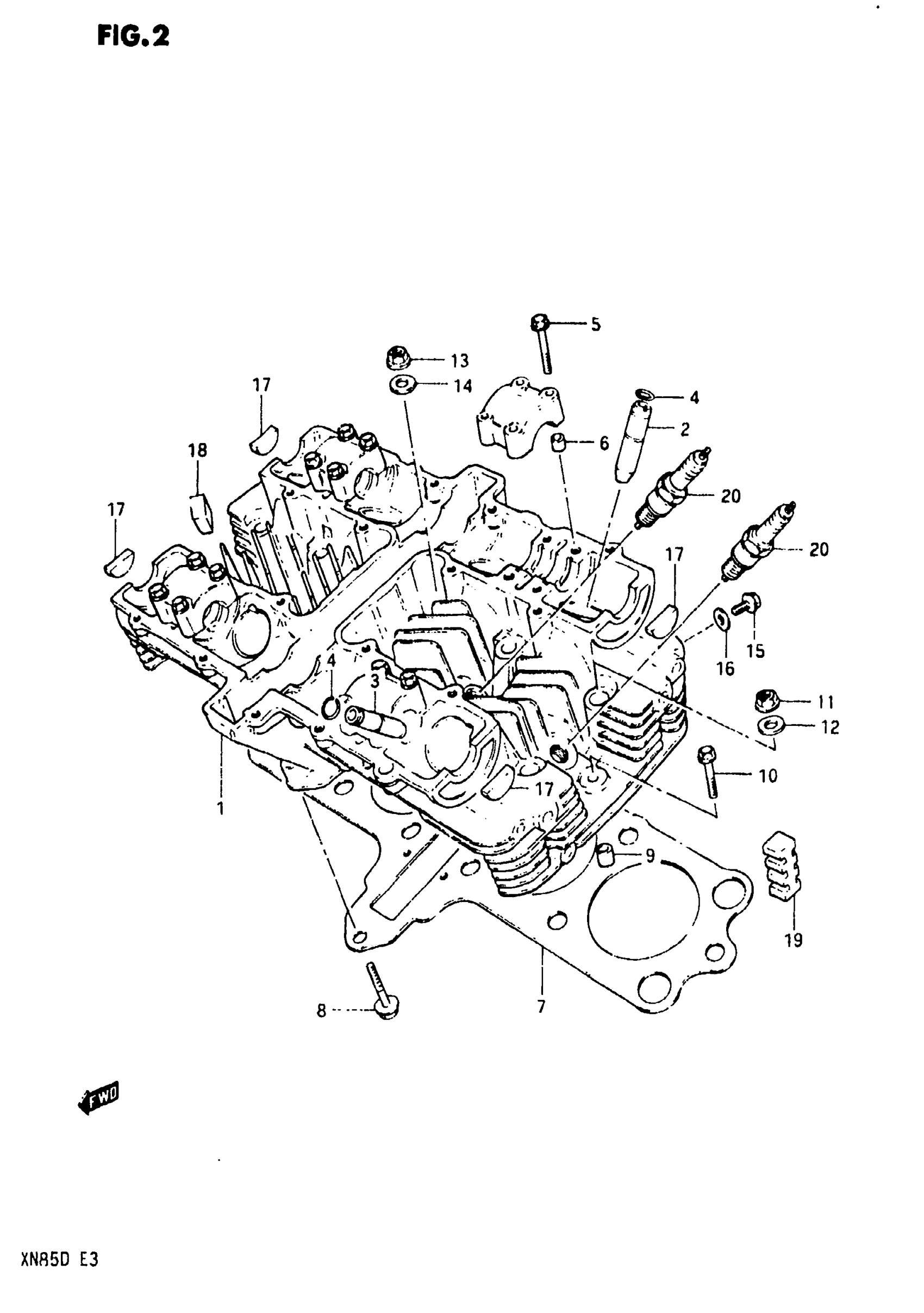

Find the part on the Cylinder Head diagram for your 1983 Suzuki XN85-D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki XN85-D Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER HEAD SET | Includes Item(s) 2 - 6

11100-09304

1
Out of stock

2

GUIDE, INTAKE VALVE

11115-34270

4
Out of stock

3

GUIDE, EXHAUST VALVE

11116-47740

4
Out of stock

4

RING, VALVE GUIDE

09381-10003

8
Out of stock

5

BOLT (6X39)

09103-06026

16
Out of stock

6

PIN

09206-08001

8
Out of stock

7

GASKET

11141-09302

1
Out of stock

8

BOLT This part replaces 01517-06308.

01550-06307

1
Out of stock

9

PIN

04211-11189

2
Out of stock

10

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

2
Out of stock

11

NUT

09159-10026

4
Out of stock

12

GASKET

09168-10030

4
Out of stock

13

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

8
Out of stock

14

WASHER

09160-10039

8
Out of stock

15

BOLT This part replaces 01517-06128.

01550-06127

2
Out of stock

16

GASKET (5.8X13X1.2) This part replaces 09168-06015.

09168-06023

2
Out of stock

17

PLUG, SIDE

09241-23002

4
Out of stock

18

RUBBER PAD (N1)

11151-39300

8
Out of stock

19

RUBBER PAD (N4-3)

11251-34300

2
Out of stock

20

SPARK PLUG (NGK,DR9EA) This part replaces 09482-00184.

09482-00400

4
Out of stock

20

SPARK PLUG (ND, X27ES-U)

09482-00185

4
Out of stock
