1983 Suzuki XN85-D Exhaust Pipe Diagram

← All diagrams

Find the part on the Exhaust Pipe diagram for your 1983 Suzuki XN85-D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

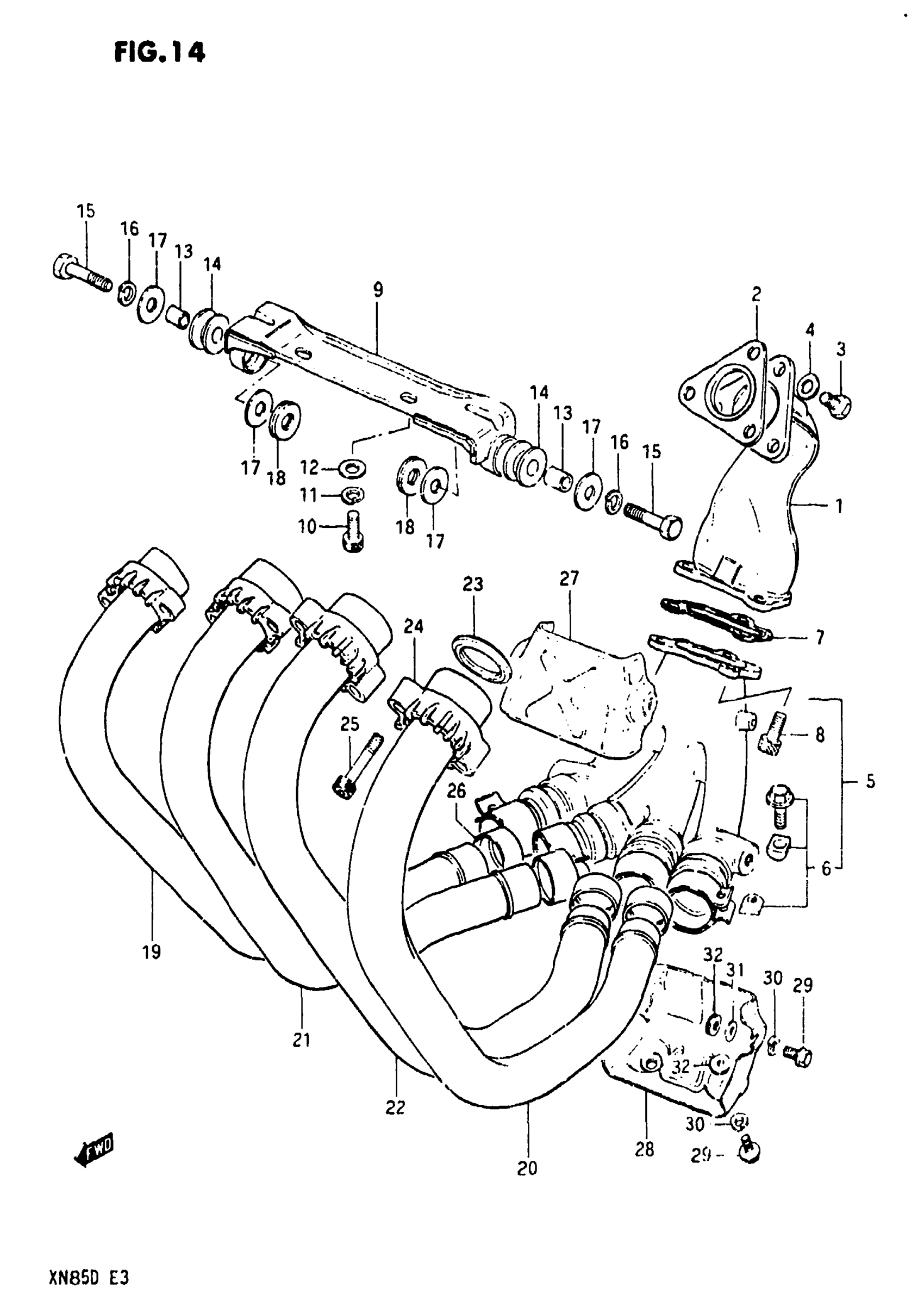

1983 Suzuki XN85-D Exhaust Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 14110-09308.

14110-09309

1
Out of stock

2

GASKET

14192-09302

1
Out of stock

3

BOLT

09100-08205

3
Out of stock

4

WASHER

09160-08073

3
Out of stock

5

MANIFOLD, EXHAUST PIPE | Includes Item(s) 6

14190-09309

1
Out of stock

6

BOLT SET

14456-09300

4
Out of stock

7

GASKET

14191-09302

1
Out of stock

8

BOLT

09106-08022

3
Out of stock

9

BRACKET, EXHAUST SUPPORT

14410-09305

1
Out of stock

10

BOLT

09106-08022

2
Out of stock

11

2

$1.99

In stock

12

WASHER This part replaces 08322-11085.

08322-0108A

2
Out of stock

13

SPACER 8.2X12X1 This part replaces 09180-08032.

09180-08143

2
Out of stock

14

CUSHION

09320-12033

2
Out of stock

15

BOLT This part replaces 01107-08355.

01500-0835B

2
Out of stock

16

2

$1.99

In stock

17

WASHER, EXHAUST SUPPORT This part replaces 09160-08057.

09160-08135

4
Out of stock

18

HEAT SHIELD

09168-08017

2
Out of stock

19

PIPE, EXHAUST RH

14150-09305

1
Out of stock

20

PIPE, EXHAUST LH

14160-09305

1
Out of stock

21

PIPE, EXHAUST MR

14170-09305

1
Out of stock

22

PIPE, EXHAUST ML

14180-09305

1
Out of stock

23

.GASKET,EXHAUST This part replaces 14181-05020.

14181-18C00

4
Out of stock

24

CLAMP

14182-34201

4
Out of stock

25

NO DESCRIPTION AVAILABLE This part replaces 09106-08030.

09106-08066

8
Out of stock

26

CONNECTOR, MUF This part replaces 14773-09300.

14771-13E10

4
Out of stock

27

COVER, UPPER

14791-09300

1
Out of stock

28

COVER, LOWER

14792-09300

1
Out of stock

29

BOLT,6X12 This part replaces 09103-06059.

09103-061V0-XC0

4
Out of stock

30

4

$1.97

In stock

31

.WASHER This part replaces 08322-21064.

08322-0106B

2
Out of stock

32

GASKET

09168-06019

4
Out of stock
