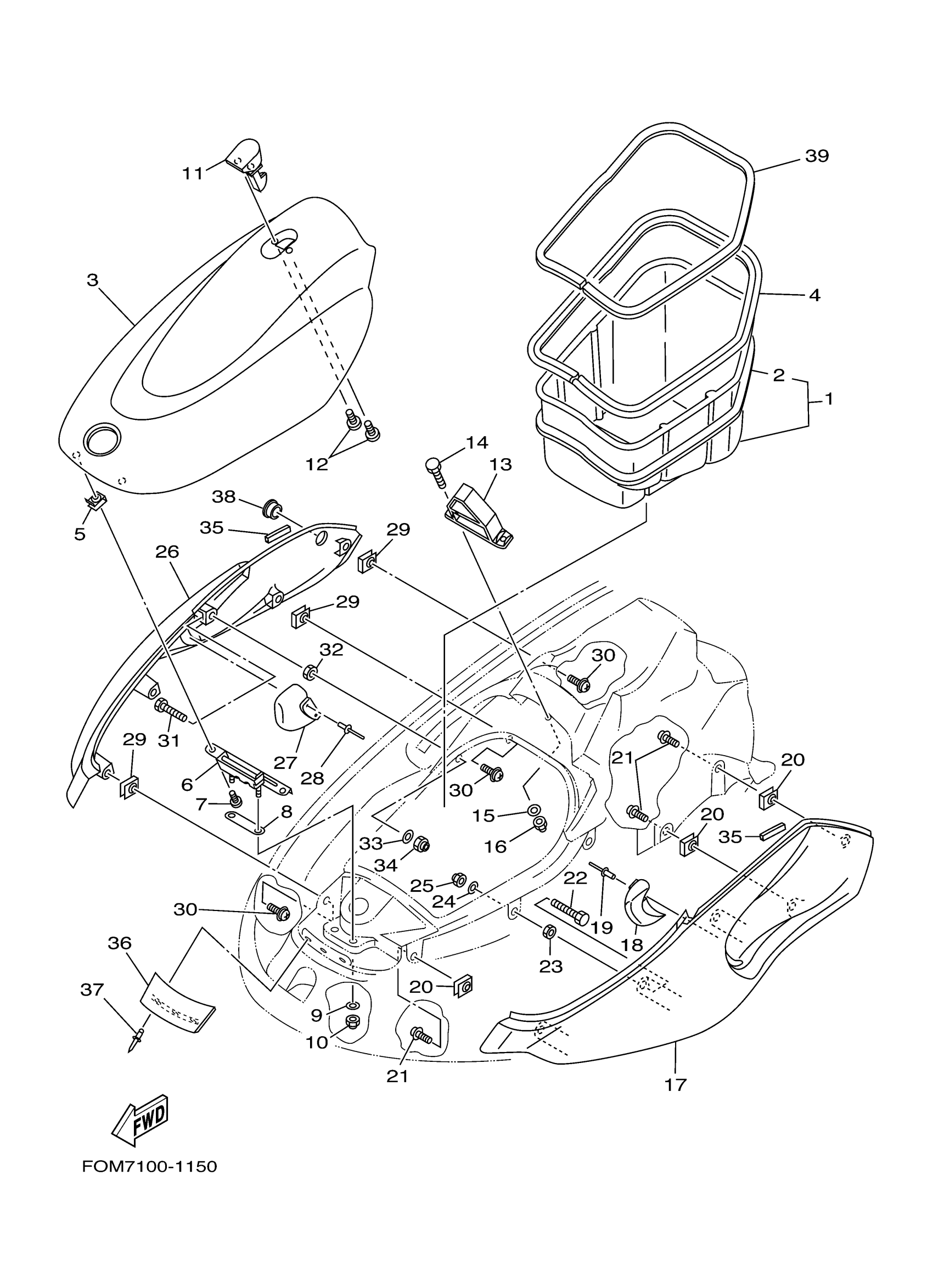

Yamaha XL700A (XL700) F0M9 2002 ENGINE HATCH 2 Diagram

#

Description
Price

1

BOW LOCKER ASSY

GU2-U475A-00-00

Unavailable

2

PACKING 4

GJ3-U266C-31-00

Unavailable

3

LID,ENG. HATCH(HYPER GREEN)

GU2-U517B-29-P0

Unavailable

4

PACKING 3

GU2-U266B-30-00

Unavailable

5

NUT, SPRING(GJ3)

90183-06902-00

$8.53

6

HINGE, LID

GU2-6517D-00-00

$81.80

7

BOLT, WITH WASHER

90119-069UJ-00

$2.80

8

PLATE HINGE LID

GU2-U518E-01-00

Unavailable

9

WASHER

9299R-06200-00

$0.43

10

NUT, NYLON

9572R-06300-00

$2.80

11

LOCK, LID

F1K-6517C-00-00

$74.23

12

SCREW, WITH WASHER

90159-059U2-00

Unavailable

13

HOOK,LID LOCK

GU2-6517F-01-00

Unavailable

14

BOLT

9708R-06020-00

$0.53

15

WASHER

9299R-06200-00

$0.43

16

NUT, NYLON

9572R-06300-00

$2.80

17

COVER,SIDE 1(GREEN)

GU2-U377B-29-P0

Unavailable

18

INNER, COVER SIDE 1

GU2-U377H-01-00

Unavailable

19

RIVET, BLIND

90267-48802-00

$1.98

20

NUT, SPRING(GJ3)

90183-06902-00

$8.53

21

BOLT, WITH WASHER

90119-06830-00

Unavailable

22

BOLT

90101-069U0-00

$1.23

23

NUT

9538R-06700-00

$1.01

24

WASHER

9299R-06200-00

$0.43

25

NUT, NYLON

9572R-06300-00

$2.80

26

COVER,SIDE 2 (GREEN)

GU2-U377C-29-P0

Unavailable

27

INNER, COVER SIDE 2

GU2-U377J-01-00

Unavailable

28

RIVET, BLIND

90267-48802-00

$1.98

29

NUT, SPRING(GJ3)

90183-06902-00

$8.53

30

BOLT, WITH WASHER

90119-06830-00

Unavailable

31

BOLT

90101-069U0-00

$1.23

32

NUT

9538R-06700-00

$1.01

33

WASHER

9299R-06200-00

$0.43

34

NUT, NYLON

9572R-06300-00

$2.80

35

TRIM

GU2-U5162-00-00

Unavailable

36

COVER, FRONT(LIGHT MET.GREEN)

GU2-U513M-29-P0

Unavailable

37

RIVET, BLIND

90267-48802-00

$1.98

38

COVER 2

F0M-U516X-00-00

Unavailable

39

PACKING

GJ3-U2664-02-00

Unavailable
