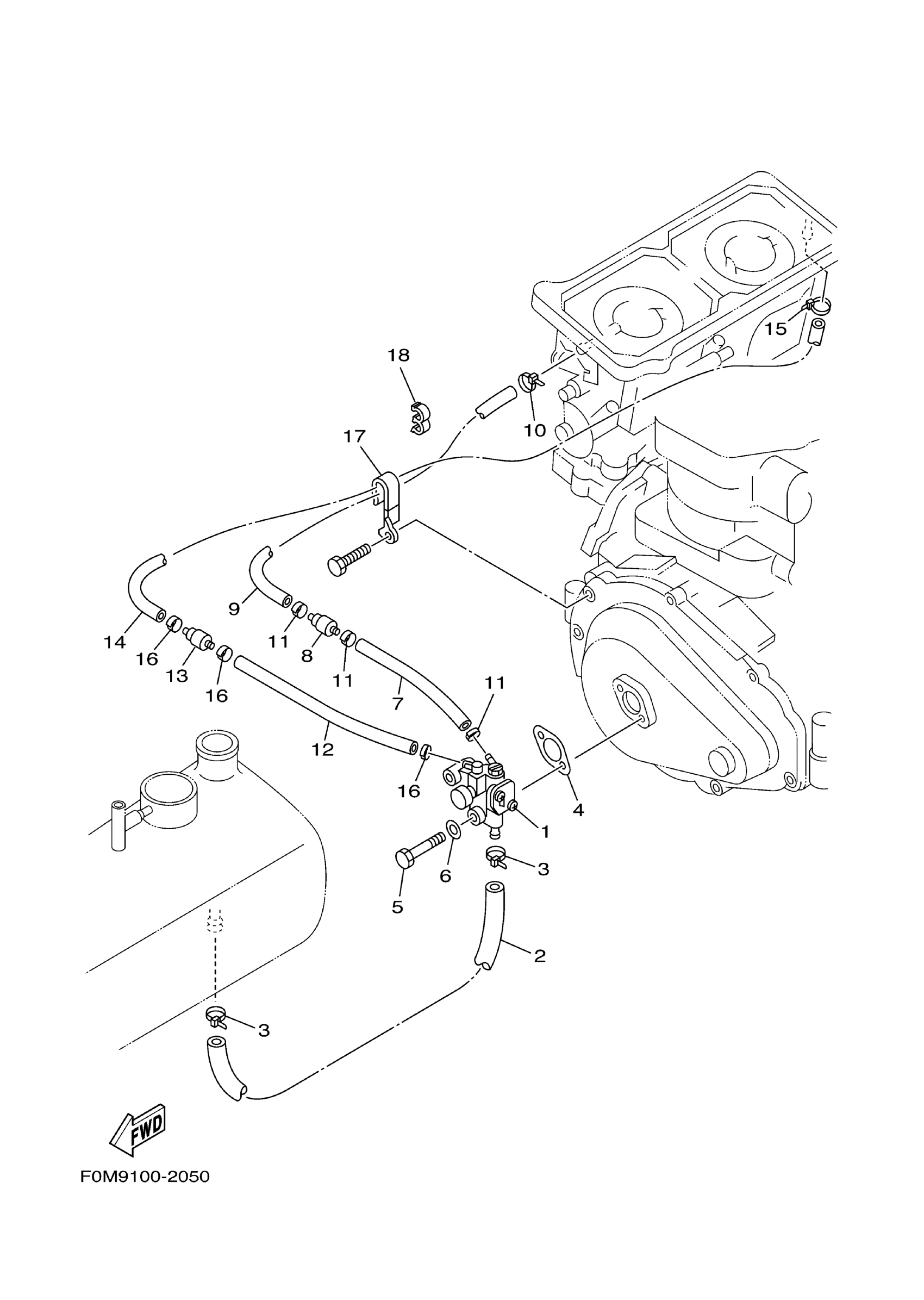

Yamaha XL700A (XL700) F0M9 2002 OIL PUMP Diagram

#

Description
Price

1

OIL INJECTION PUMP ASSY

61X-13200-12-00

$207.45

2

HOSE (L700)

90445-117F2-00

$22.86

3

CLAMP

90465-10098-00

$2.24

4

. GASKET, PUMP CASE

6R8-13116-A0-00

$3.03

5

BOLT(J52)

97080-06035-00

Unavailable

6

WASHER, PLAIN (646)

92990-06600-00

$2.80

7

HOSE (L200)

90445-07MA3-00

$7.16

8

VALVE, CHECK

67X-13183-00-00

$26.10

9

HOSE(62T)

90446-07M48-00

Unavailable

10

CLAMP

90465-10098-00

$2.24

11

CLIP

90468-02001-00

$2.16

12

HOSE (L200)

90445-07MA3-00

$7.16

13

VALVE, CHECK

67X-13183-00-00

$26.10

14

HOSE(62T)

90446-07M48-00

Unavailable

15

CLAMP

90465-10098-00

$2.24

16

CLIP

90468-02001-00

$2.16

17

CLAMP

90465-08M69-00

Unavailable

18

CLAMP(6R8)

90464-10M38-00

Unavailable
