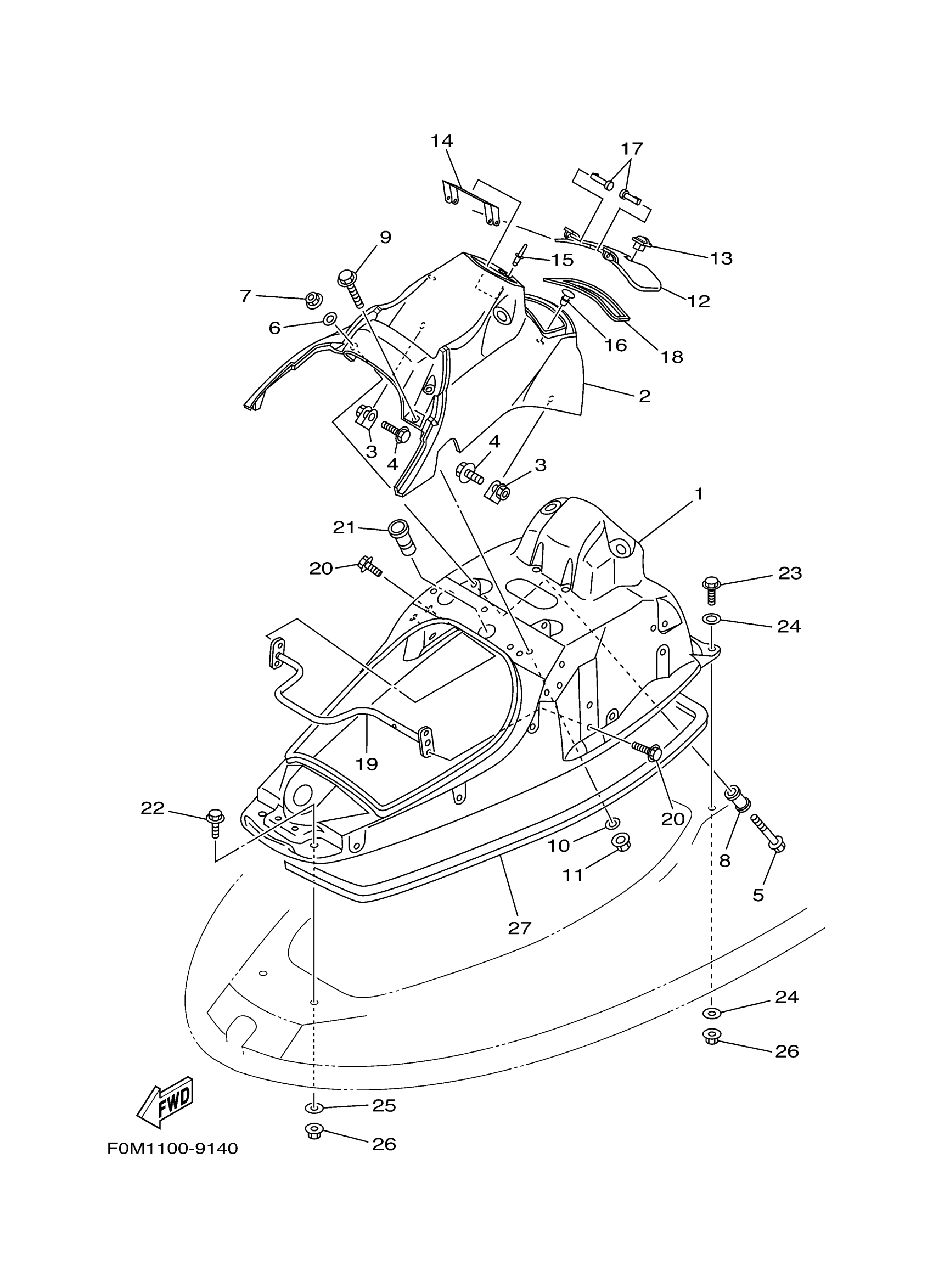

Yamaha XL700A (XL700) F0M9 2002 ENGINE HATCH 1 Diagram

#

Description
Price

1

ENGINE HATCH COMP.

F0M-U516A-00-00

Unavailable

2

COVER ENG. HATCH(CYAN GREEN)

F0M-U516N-19-P0

Unavailable

3

NUT, SPRING(GJ3)

90183-06902-00

$8.53

4

BOLT, WITH WASHER

90119-06830-00

Unavailable

5

BOLT, WITH WASHER

90119-06808-00

$2.16

6

WASHER

9299R-06200-00

$0.43

7

NUT, NYLON

9572R-06300-00

$2.80

8

COLLAR

90387-06922-00

Unavailable

9

BOLT, WITH WASHER

90119-06803-00

$3.52

10

WASHER

9299R-06200-00

$0.43

11

NUT, NYLON

9572R-06300-00

$2.80

12

LID HATCH(CYAN GREEN)

GU2-U517H-29-P0

Unavailable

13

LOCK

GU2-62875-02-00

$36.31

14

HINGE, HATCH

GU2-U517G-00-00

Unavailable

15

RIVET, BLIND

90267-40937-00

$2.07

16

. PLUG

90605-502U2-00

$2.42

17

PIN, HINGE

GU2-6517R-00-00

Unavailable

18

PACKING CASE

GU2-U519D-00-00

Unavailable

19

BEAM, ENGINE HATCH

GU2-6516L-00-00

$199.98

20

BOLT, WITH WASHER

90119-06830-00

Unavailable

21

GROMMET

GU2-6822E-01-00

$24.98

22

BOLT, WITH WASHER

90119-089U9-00

Unavailable

23

BOLT, WITH WASHER

90119-08829-00

$3.88

24

WASHER, PLATE

90201-099U1-00

$2.16

25

WASHER (FJ0)

90201-08929-00

Unavailable

26

NUT, NYLON (6J8)

95780-08300-00

$10.55

27

PACKING 1

GJ3-U2663-01-00

Unavailable
