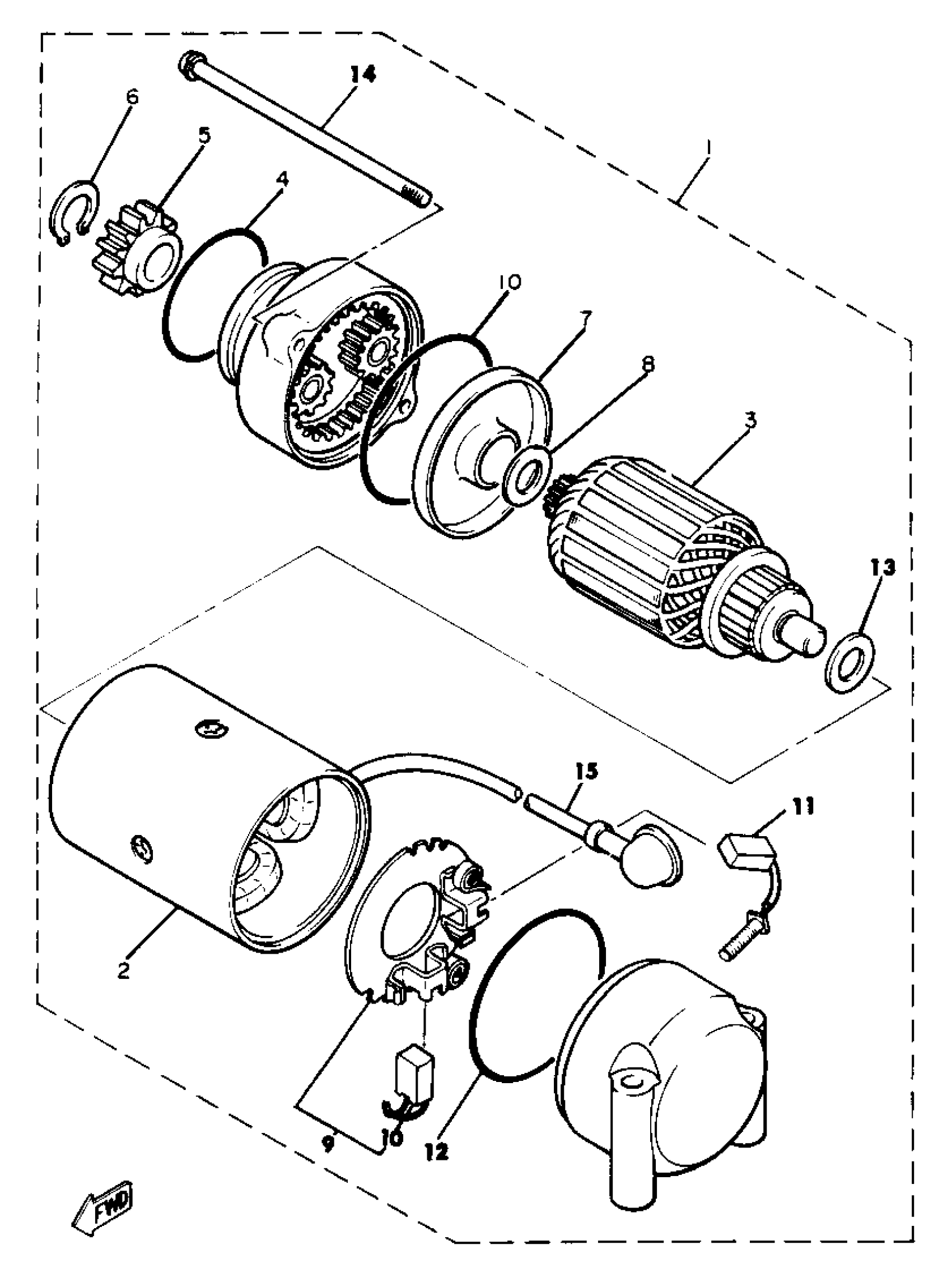

Yamaha XJ650LH (XJ650L) 1981 STARTING MOTOR Diagram

#

Description
Price

1

STARTING MOTOR UNIT

4BB-81890-00-00

$681.04

2

. STATOR ASSEMBLY

4H7-81810-01-00

Unavailable

3

ARMATURE ASSY

4H7-81850-00-00

$312.97

4

O-RING

4H7-81847-01-00

Unavailable

5

. GEAR, STARTING MOTOR

4H7-15511-01-00

Unavailable

6

. CIRCLIP

4H7-81819-00-00

Unavailable

7

PLATE

(4H7-81845-00-00)

Unavailable

8

WASHER 1

4H7-81843-50-00

$3.63

9

BRUSH HOLDER ASSY

4H7-81840-01-00

$74.31

10

BRUSH, STARTER

4H7-81811-00-00

$10.88

11

BRUSH SUB-ASSY, STARTOR

2JN-81818-50-00

$23.12

12

O-RING

4H7-81844-00-00

Unavailable

13

WASHER 2

(4H7-81824-00-00)

Unavailable

14

BOLT

4H7-81826-01-00

Unavailable

15

. WIRE, STARTER

4H7-81815-00-00

Unavailable
