1981 Yamaha XJ650L (XJ650LH) Flasher Light Diagram

← All diagrams

Find the part on the Flasher Light diagram for your 1981 Yamaha XJ650L (XJ650LH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

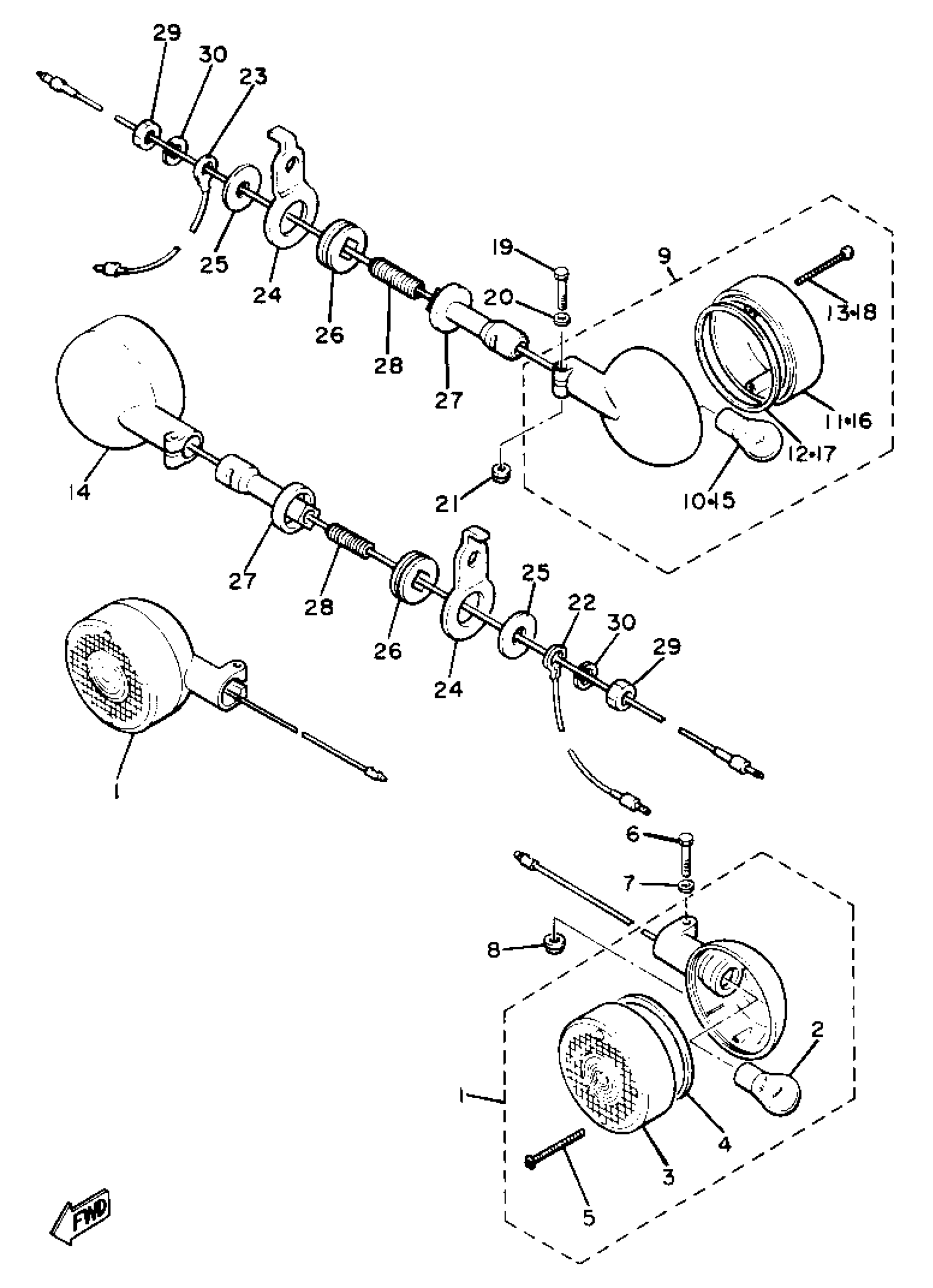

1981 Yamaha XJ650L (XJ650LH) Flasher Light Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR FLASHER LIGHT ASSY 1

4W5-83330-K0-00

—

$70.68

In stock

2

. BULB (12V-32CP)

256-83311-70-XX

1
Out of stock

3

LENS, FLASHER

4H7-83312-00-00

—

$11.47

In stock

4

GASKET, FLASHER LENS

1D6-83313-00-00

1

$6.38

In stock

5

SCREW, PAN HEAD

98502-03530-00

1

$2.48

In stock

6

BOLT, HEXAGON

97017-06030-00

1

$3.00

In stock

7

WASHER(6TA)

92907-06600-00

1

$0.78

In stock

8

NUT, FLANGE(4MV)

95707-06500-00

1

$0.78

In stock

9

REAR FLASHER LIGHT ASSY 1

4W5-83330-K0-00

—

$70.68

In stock

10

. BULB (12V-32CP)

256-83311-70-XX

1
Out of stock

11

LENS, FLASHER

4H7-83312-00-00

—

$11.47

In stock

12

GASKET, FLASHER LENS

1D6-83313-00-00

1

$6.38

In stock

13

SCREW, PAN HEAD

98502-03530-00

1

$2.48

In stock

14

REAR FLASHER LIGHT ASSY 1

4W5-83330-K0-00

—

$70.68

In stock

15

. BULB (12V-32CP)

256-83311-70-XX

1
Out of stock

16

LENS, FLASHER

4H7-83312-00-00

—

$11.47

In stock

17

GASKET, FLASHER LENS

1D6-83313-00-00

1

$6.38

In stock

18

SCREW, PAN HEAD

98502-03530-00

1

$2.48

In stock

19

BOLT, HEXAGON

97017-06030-00

1

$3.00

In stock

20

WASHER(6TA)

92907-06600-00

1

$0.78

In stock

21

NUT, FLANGE(4MV)

95707-06500-00

1

$0.78

In stock

22

WIRE, EARTH LEAD 2

3FU-83364-00-00

—

$10.09

In stock

23

WIRE, EARTH LEAD 2

3FU-83364-00-00

—

$10.09

In stock

24

STAY, FLASHER 1

4W5-83318-00-00

1
Out of stock

25

WASHER, PLATE

(90201-104A3-00)

1
Out of stock

26

DAMPER, FLASHER (371)

341-83321-01-00

—
Out of stock

27

STAY, FLASHER 2

4W5-83328-00-00

1
Out of stock

28

BLT, FLSHR STY FTNG

2H7-83325-00-00

1
Out of stock

29

NUT(6TD)

95337-10600-00

—

$6.98

In stock

30

WASHER(6TA)

92907-10100-00

—

$6.18

In stock
