1981 Yamaha XJ650L (XJ650LH) Speedometer Tachometer Diagram

← All diagrams

Find the part on the Speedometer Tachometer diagram for your 1981 Yamaha XJ650L (XJ650LH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

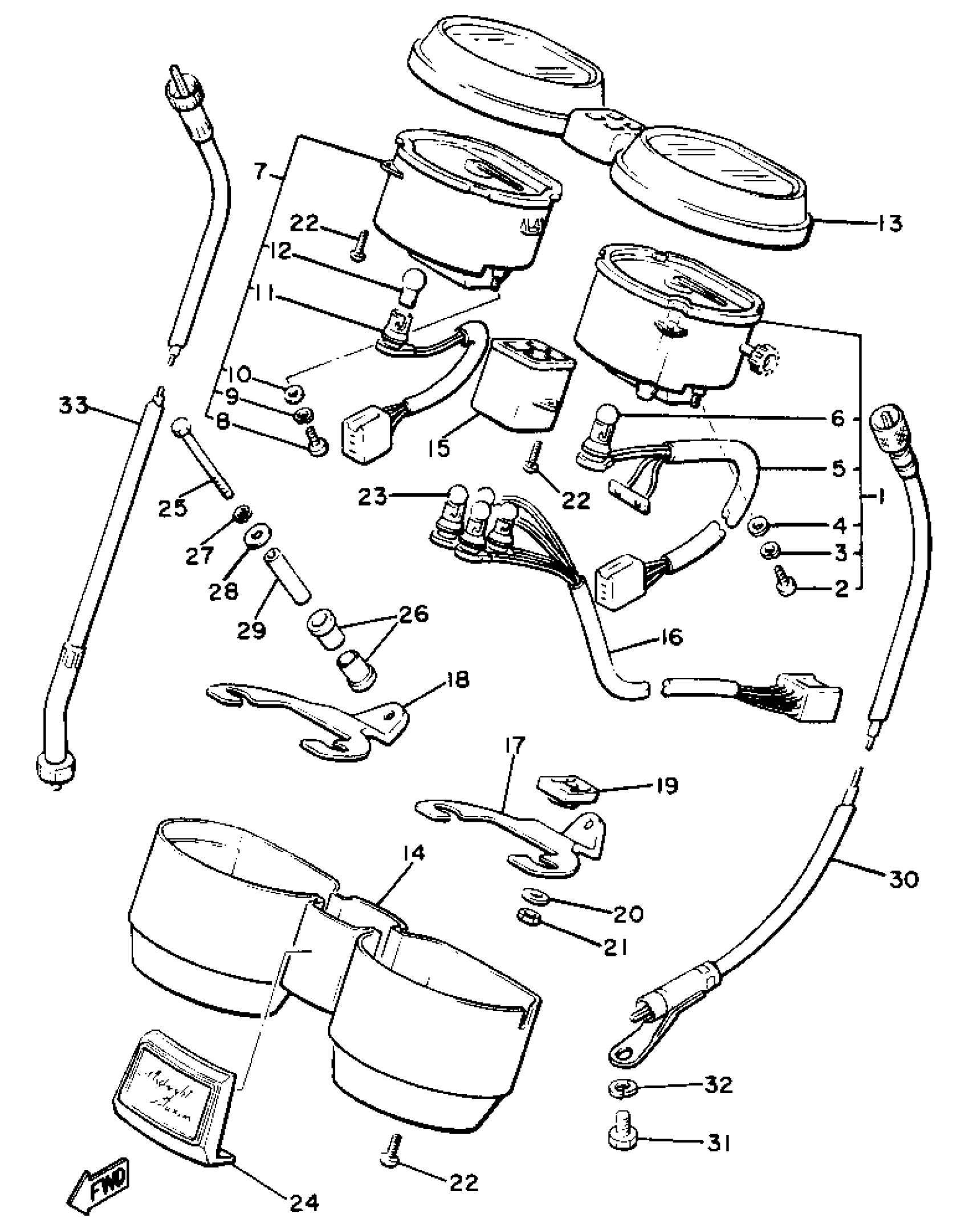

1981 Yamaha XJ650L (XJ650LH) Speedometer Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

5K5-83570-A0-00

1
Out of stock

2

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

3

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

4

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

5

. SOCKET CORD ASSY

10M-83520-20-00

1
Out of stock

6

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

7

TACHOMETER ASSEMBLY

5K5-83540-00-00

1
Out of stock

8

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

9

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

10

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

11

SOCKET CORD ASSEMBLY

(4H7-83520-00-00)

1
Out of stock

12

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

13

COVER, METER

4H7-83559-A0-00

1
Out of stock

14

COVER, METER 2

4W5-83579-00-00

1
Out of stock

15

BODY, PILOT LIGHT

4H7-83587-00-00

1
Out of stock

16

SOCKET CORD ASSEMBLY

5K5-83509-00-00

1
Out of stock

17

BRACKET, METER

4H7-83519-00-00

1
Out of stock

18

BRACKET, TACHOMETER

4H7-83545-00-00

1
Out of stock

19

DAMPER

4H7-83523-00-00

1
Out of stock

20

WASHER PLATE 803835240000

90201-05032-00

—

$6.71

In stock

21

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

22

SCREW, TAPPING

4H7-83616-00-00

—

$2.49

In stock

23

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

24

EMBLEM 7

4W5-21787-00-00

1
Out of stock

25

BOLT, HEXAGON

97017-06045-00

—
Out of stock

26

DAMPER, METER BRACKET

584-83541-00-00

—
Out of stock

27

WASHER, SPRING

92907-06100-00

—
Out of stock

28

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

29

COLLAR (877)

90387-06249-00

—
Out of stock

30

SPEEDOMETER CABLE

5K5-83550-00-00

1
Out of stock

31

SCREW, HEXAGON

90153-06004-00

1
Out of stock

32

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

33

TACHOMETER CABLE

4H7-83560-00-00

1
Out of stock
