1981 Yamaha XJ650 (XJ650H) Starting Motor Diagram

← All diagrams

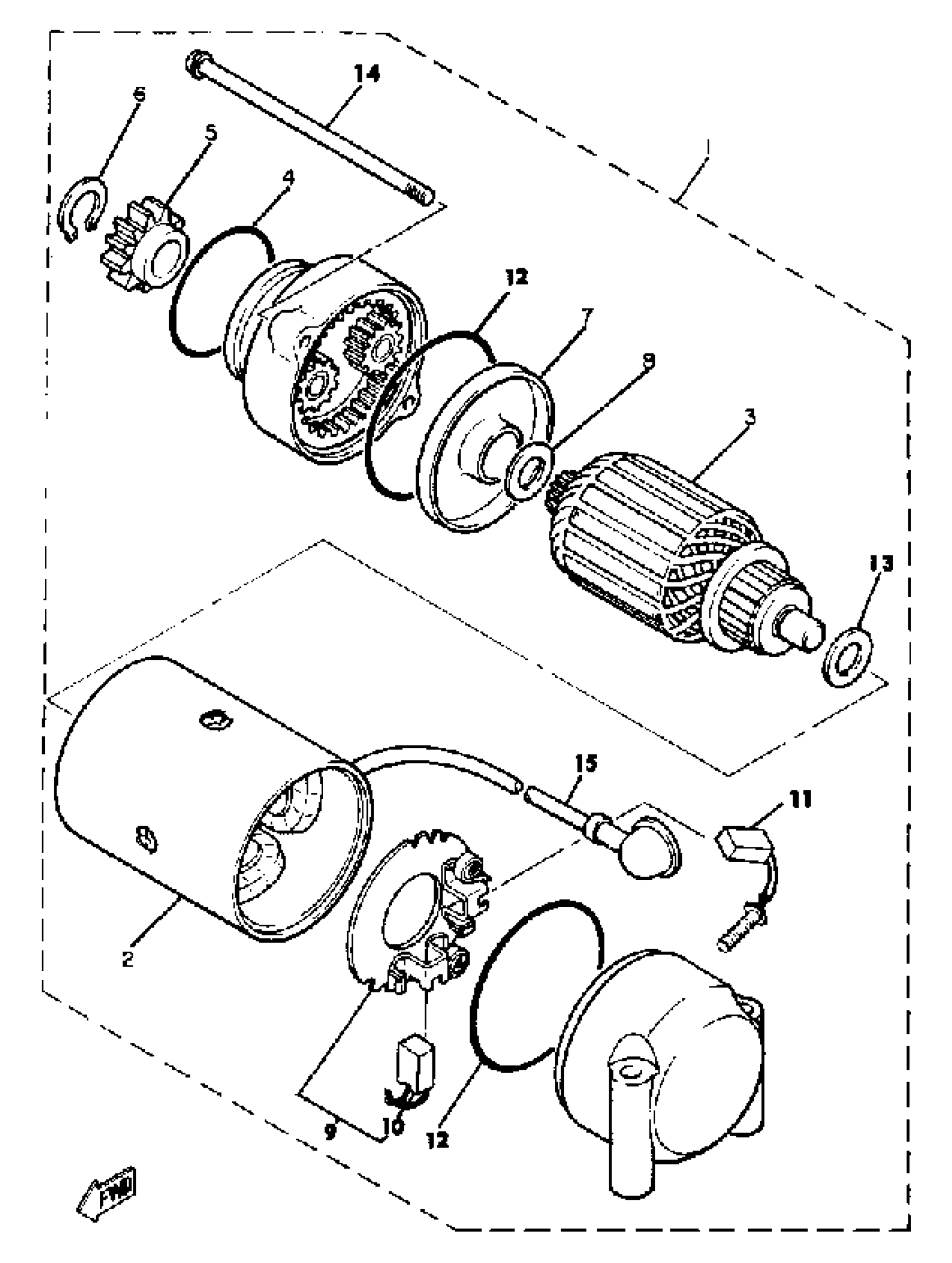

Find the part on the Starting Motor diagram for your 1981 Yamaha XJ650 (XJ650H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XJ650 (XJ650H) Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTING MOTOR UNIT

4BB-81890-00-00

1

$702.00

In stock

2

. STATOR ASSEMBLY

4H7-81810-01-00

1
Out of stock

3

ARMATURE ASSY

4H7-81850-00-00

1
Out of stock

4

O-RING

4H7-81847-01-00

—
Out of stock

5

. GEAR, STARTING MOTOR

4H7-15511-01-00

1
Out of stock

6

. CIRCLIP

4H7-81819-00-00

1
Out of stock

7

PLATE

(4H7-81845-00-00)

1
Out of stock

8

WASHER 1

4H7-81843-50-00

1

$3.74

In stock

9

BRUSH HOLDER ASSY

4H7-81840-01-00

1
Out of stock

10

BRUSH, STARTER

4H7-81811-00-00

1

$11.22

In stock

11

BRUSH SUB-ASSY, STARTOR

2JN-81818-50-00

1

$23.83

In stock

12

O-RING

4H7-81844-00-00

—

$21.05

In stock

13

WASHER 2

(4H7-81824-00-00)

1
Out of stock

14

BOLT

4H7-81826-01-00

—

$11.00

In stock

15

. WIRE, STARTER

4H7-81815-00-00

1
Out of stock
