1981 Yamaha XJ650 (XJ650H) Speedometer Tachometer Diagram

← All diagrams

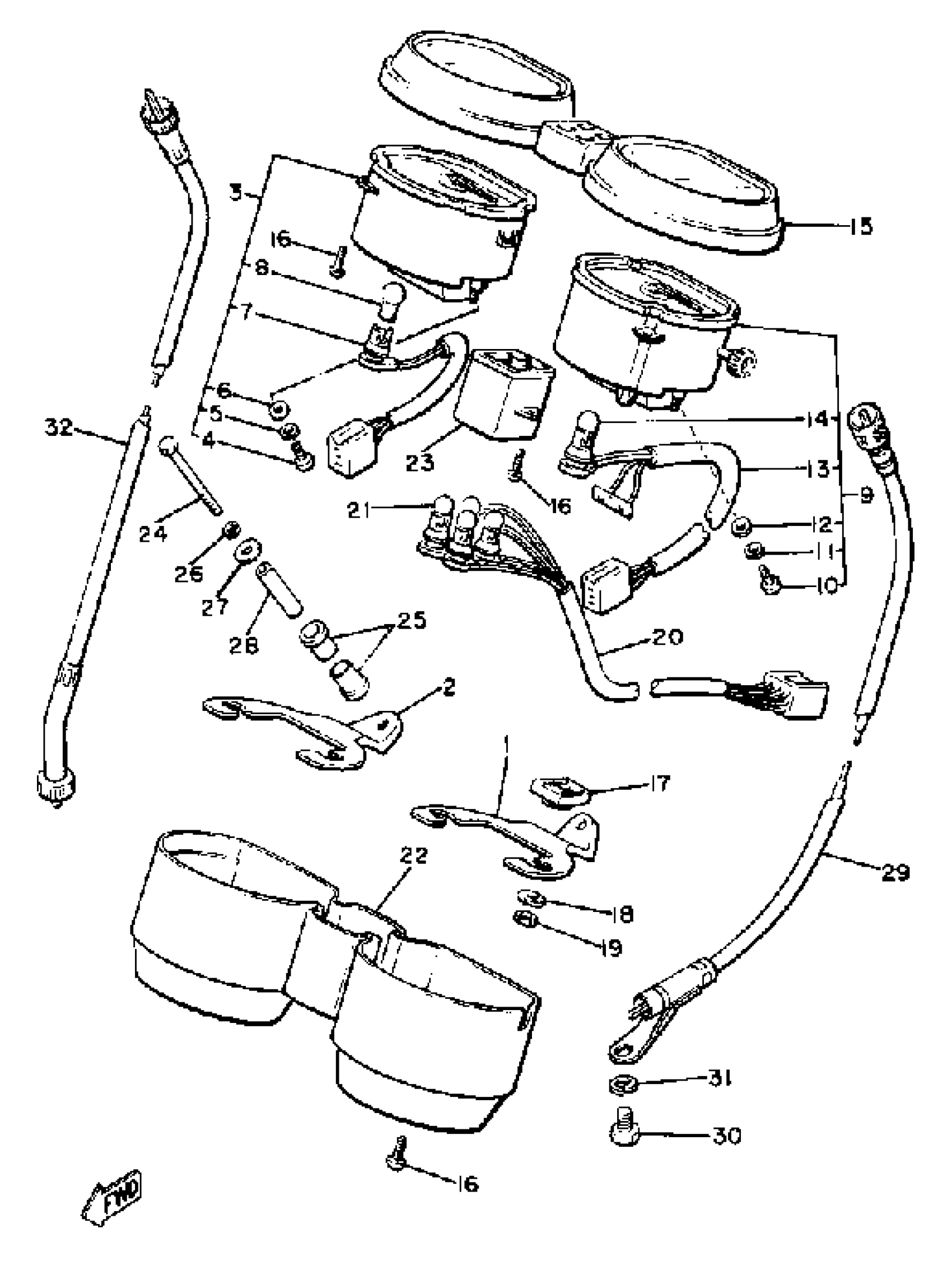

Find the part on the Speedometer Tachometer diagram for your 1981 Yamaha XJ650 (XJ650H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XJ650 (XJ650H) Speedometer Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, METER

4H7-83519-00-00

1
Out of stock

2

BRACKET, TACHOMETER

4H7-83545-00-00

1
Out of stock

3

TACHOMETER ASSEMBLY

5K5-83540-00-00

1
Out of stock

4

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

5

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

6

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

7

SOCKET CORD ASSEMBLY

(4H7-83520-00-00)

1
Out of stock

8

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

9

SPEEDOMETER ASSEMBLY

5K5-83570-A0-00

1
Out of stock

10

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

11

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

12

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

13

. SOCKET CORD ASSY

10M-83520-20-00

1
Out of stock

14

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

15

COVER, METER

4H7-83559-A0-00

1
Out of stock

16

SCREW, TAPPING

4H7-83616-00-00

—

$2.49

In stock

17

DAMPER

4H7-83523-00-00

1
Out of stock

18

WASHER PLATE 803835240000

90201-05032-00

—

$6.71

In stock

19

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

20

SOCKET CORD ASSEMBLY

5K5-83509-00-00

1
Out of stock

21

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

22

COVER, METER 2

4H7-83579-00-00

1
Out of stock

23

BODY, PILOT LIGHT

4H7-83587-00-00

1
Out of stock

24

BOLT, HEXAGON

97017-06045-00

—
Out of stock

25

DAMPER, METER BRACKET

584-83541-00-00

—
Out of stock

26

WASHER, SPRING

92907-06100-00

—
Out of stock

27

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

28

COLLAR (877)

90387-06249-00

—
Out of stock

29

SPEEDOMETER CABLE

5K5-83550-00-00

1
Out of stock

30

SCREW, HEXAGON

90153-06004-00

1
Out of stock

31

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

32

TACHOMETER CABLE

4H7-83560-00-00

1
Out of stock
