1981 Yamaha XJ650 (XJ650H) Handle Switch Lever Diagram

← All diagrams

Find the part on the Handle Switch Lever diagram for your 1981 Yamaha XJ650 (XJ650H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

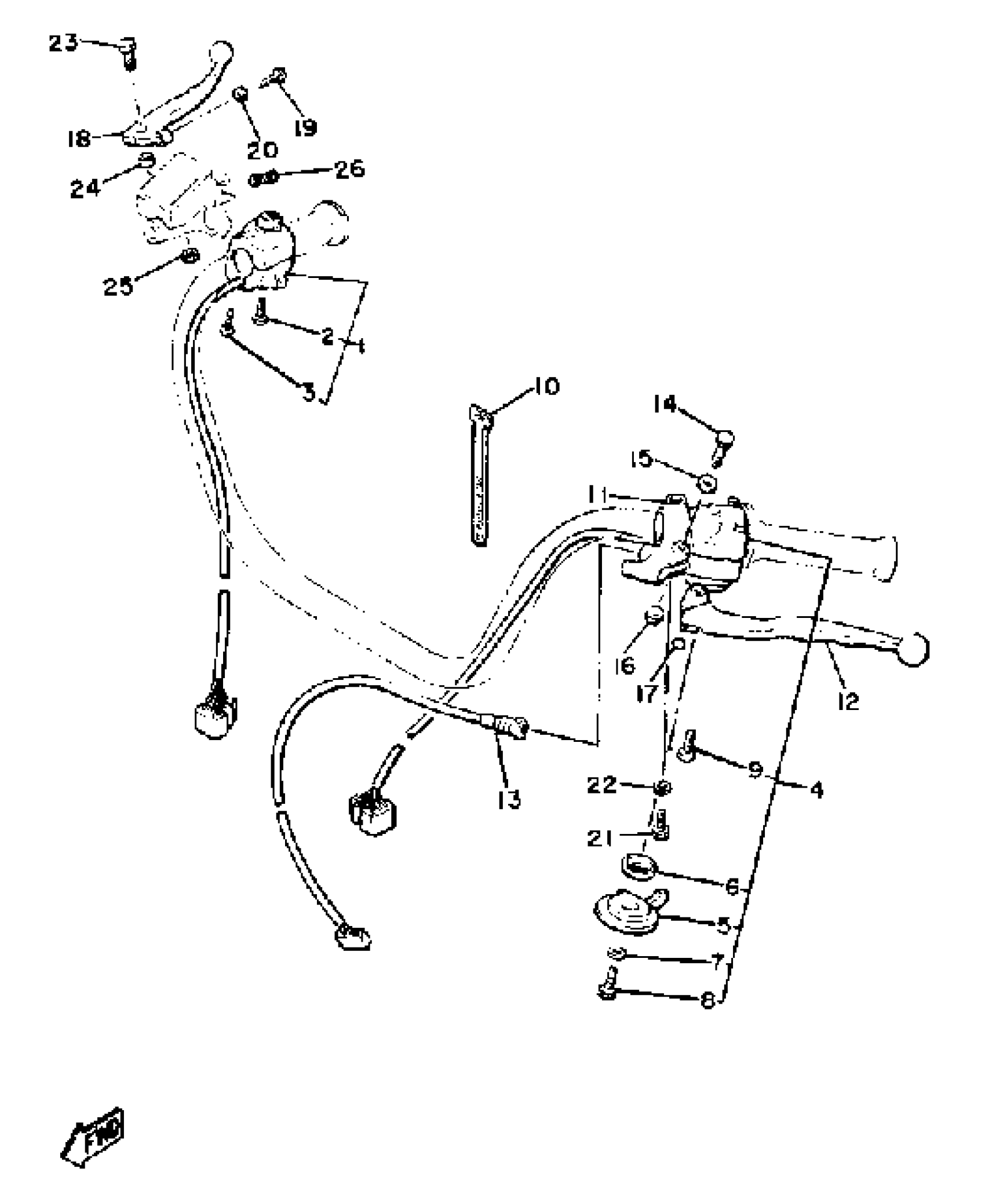

1981 Yamaha XJ650 (XJ650H) Handle Switch Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWITCH, HANDLE 2

2H7-83975-09-00

1
Out of stock

2

SCREW, PAN HEAD

98517-05030-00

1

$7.92

In stock

3

SCREW, PAN

98507-05040-00

1

$6.68

In stock

4

SWITCH, HANDLE 3

4H7-83973-00-00

1
Out of stock

5

. LEVER, STARTER

4H7-83941-00-00

1
Out of stock

6

WASHER (357)

90209-10131-00

1

$7.94

In stock

7

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

8

BOLT (11T)

90101-06576-00

1

$6.46

In stock

9

SCREW, PAN HEAD

98517-05030-00

1

$7.92

In stock

10

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

11

HOLDER, LEVER 1

4H7-82911-00-00

1
Out of stock

12

UNAVAILABLE IN PRICE BOOK

2H0-83912-00-00

1
Out of stock

13

SWITCH

3Y6-82917-00-00

1
Out of stock

14

BOLT(1FG)

90109-06798-00

1
Out of stock

15

WASHER, PLATE 1562722600

90201-08083-00

1
Out of stock

16

NUT, SELF-LOCKING

95617-06100-00

—

$2.32

In stock

17

O-RING (2H7)

93210-11368-00

—

$4.80

In stock

18

LEVER (R.H)

2H7-83922-20-00

—

$35.25

In stock

19

SCREW (2L0)

90149-06131-00

—

$6.17

In stock

20

NUT HEXAGON 306839270000

90170-06010-00

—

$6.17

In stock

21

BOLT, HEXAGON

97007-06022-00

—
Out of stock

22

WASHER, SPRING

92907-06100-00

—
Out of stock

23

BOLT (4L0)

90109-06577-00

—

$5.38

In stock

24

BUSH, SPEC''L NYLON

90386-08094-00

1
Out of stock

25

NUT, SELF-LOCKING

95617-06100-00

—

$2.32

In stock

26

SPRING, COMPRESSION (2H7)

90501-10510-00

—
Out of stock
