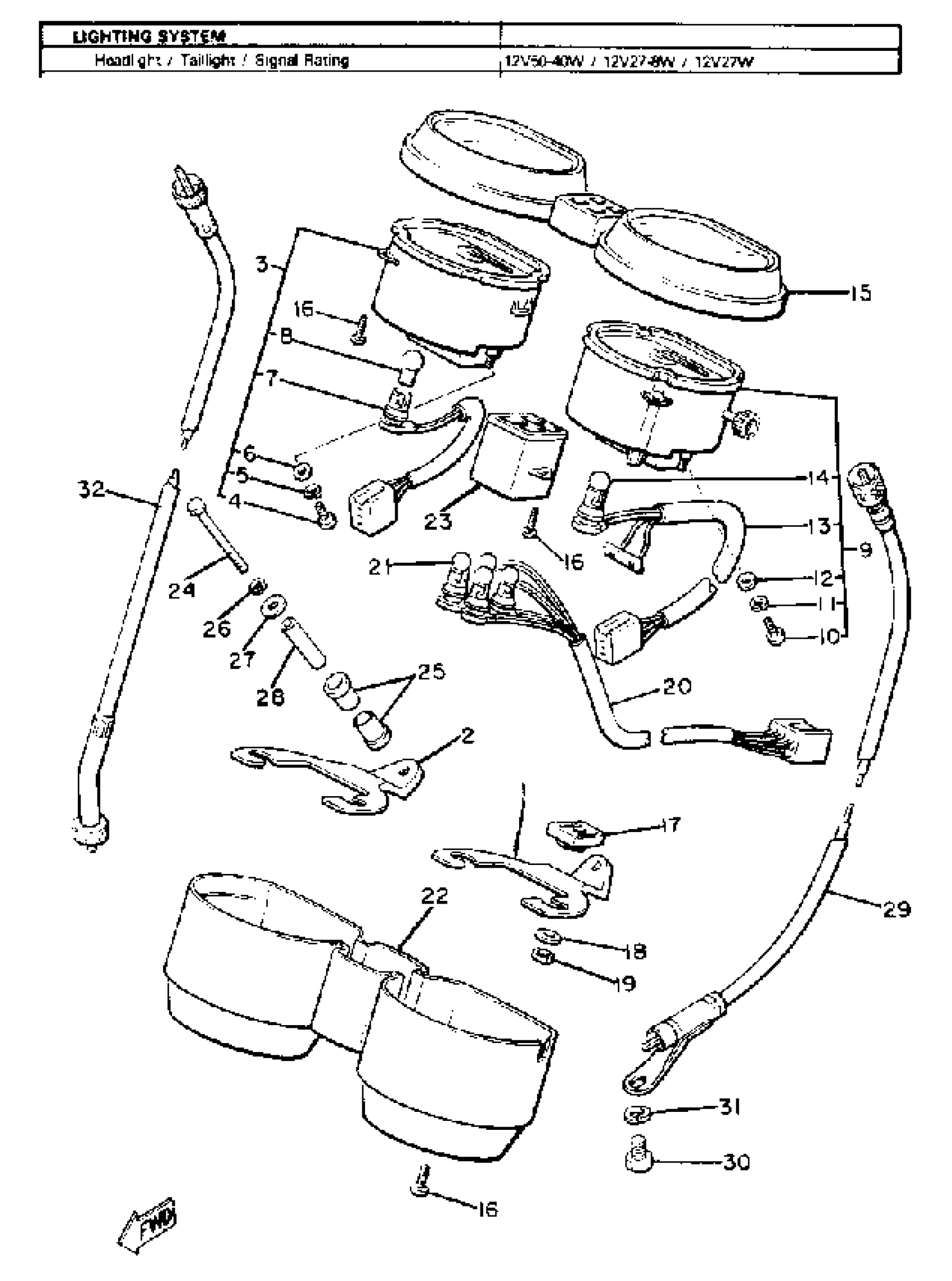

Yamaha XJ650G (XJ650) 1980 SPEEDOMETER TACHOMETER Diagram

#

Description
Price

1

BRACKET, METER

4H7-83519-00-00

Unavailable

2

BRACKET, TACHOMETER

4H7-83545-00-00

Unavailable

3

TACHOMETER ASSEMBLY

5K5-83540-00-00

Unavailable

4

SCREW, PAN HEAD (713)

98580-04008-00

$4.24

5

YBS67-4 WASHER, SPRING

92990-04100-00

$0.58

6

WASHER, PLAIN (646)

92990-04600-00

$0.91

7

SOCKET CORD ASSEMBLY

(4H7-83520-00-00)

Unavailable

8

BULB (12V-3.4W)

123-83516-21-00

$3.52

9

SPEEDOMETER ASSEMBLY

5K5-83570-A0-00

Unavailable

10

SCREW, PAN HEAD (713)

98580-04008-00

$4.24

11

YBS67-4 WASHER, SPRING

92990-04100-00

$0.58

12

WASHER, PLAIN (646)

92990-04600-00

$0.91

13

. SOCKET CORD ASSY

10M-83520-20-00

Unavailable

14

BULB (12V-3.4W)

123-83516-21-00

$3.52

15

COVER, METER

4H7-83559-A0-00

Unavailable

16

SCREW, TAPPING

4H7-83616-00-00

Unavailable

17

DAMPER

4H7-83523-00-00

Unavailable

18

WASHER PLATE 803835240000

90201-05032-00

Unavailable

19

NUT, HEXAGON (663)

95380-05600-00

Unavailable

20

SOCKET CORD ASSEMBLY

5K5-83509-00-00

Unavailable

21

BULB (12V-3.4W)

123-83516-21-00

$3.52

22

COVER, METER 2

4H7-83579-00-00

Unavailable

23

BODY, PILOT LIGHT

4H7-83587-00-00

Unavailable

24

BOLT, HEXAGON

97017-06045-00

Unavailable

25

DAMPER, METER BRACKET

584-83541-00-00

Unavailable

26

WASHER, SPRING

92907-06100-00

Unavailable

27

WASHER, PLATE

90201-06380-00

Unavailable

28

COLLAR (877)

90387-06249-00

Unavailable

29

SPEEDOMETER CABLE

5K5-83550-00-00

Unavailable

30

SCREW, HEXAGON

90153-06004-00

Unavailable

31

WASHER, SPRING

92995-06100-00

$2.95

32

TACHOMETER CABLE

4H7-83560-00-00

Unavailable
