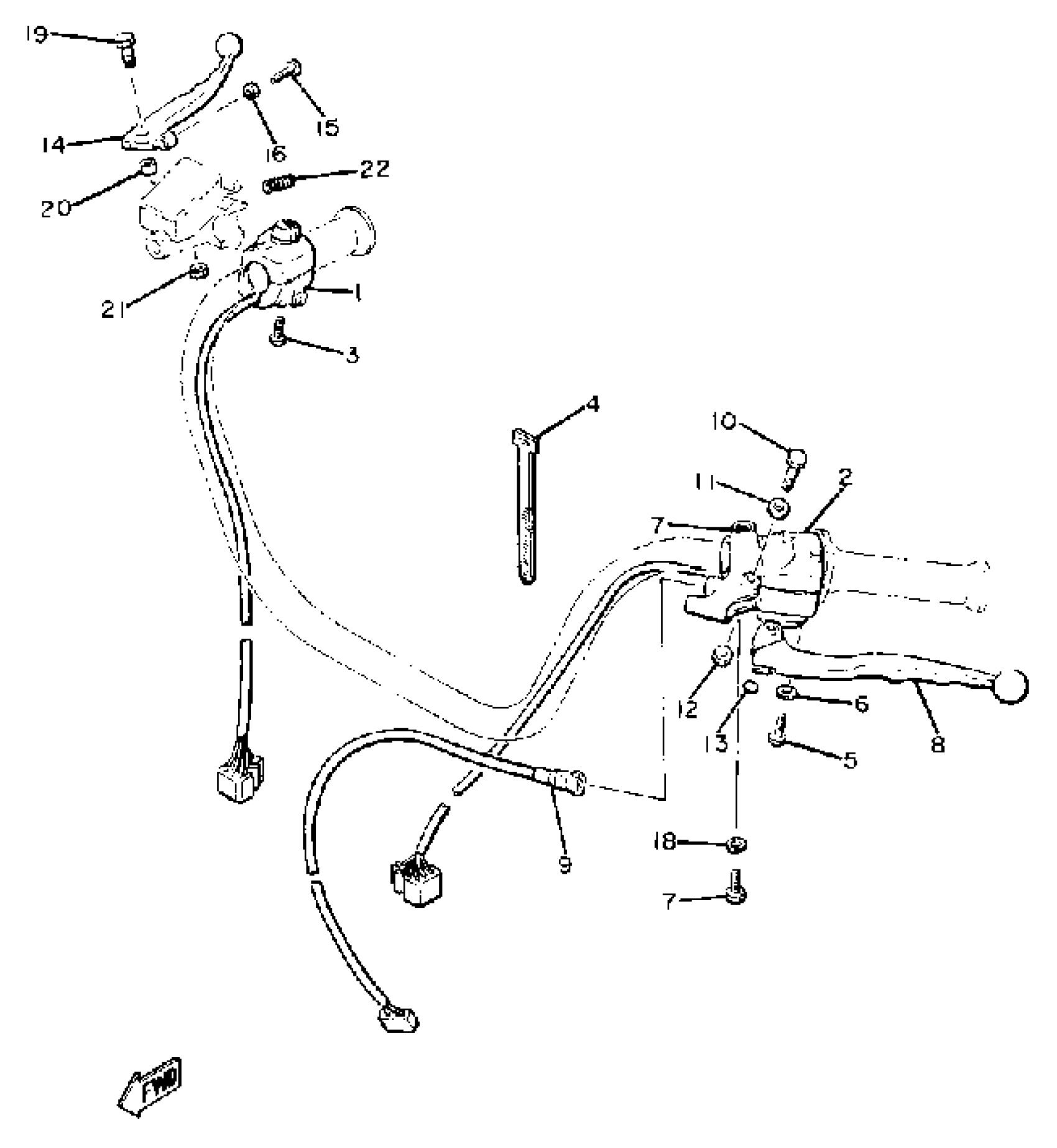

Yamaha XJ650G (XJ650) 1980 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

SWITCH, HANDLE 2

2H7-83975-09-00

Unavailable

2

SWITCH, HANDLE 3

4H7-83973-00-00

Unavailable

3

SCREW, PAN HEAD

98517-05030-00

$7.40

4

BAND, SWITCH CORD

437-83936-01-00

$4.56

5

SCREW, PANHEAD (97701-50515-00)

90149-059U1-00

Unavailable

6

WASHER, PLAIN (646)

92990-05600-00

Unavailable

7

HOLDER, LEVER 1

4H7-82911-00-00

Unavailable

8

LEVER L

2H0-83912-31-00

$25.00

9

SWITCH

3Y6-82917-00-00

Unavailable

10

BOLT(1FG)

90109-06798-00

$5.84

11

WASHER, PLATE 1562722600

90201-08083-00

$5.86

12

NUT, SELF-LOCKING

95617-06100-00

$2.17

13

O-RING (2H7)

93210-11368-00

$4.48

14

LEVER (R.H)

2H7-83922-20-00

$34.71

15

SCREW (2L0)

90149-06131-00

$5.75

16

NUT HEXAGON 306839270000

90170-06010-00

Unavailable

17

BOLT, HEXAGON

97007-06022-00

Unavailable

18

WASHER, SPRING

92907-06100-00

Unavailable

19

BOLT (4L0)

90109-06577-00

Unavailable

20

BUSH, SPEC''L NYLON

90386-08094-00

Unavailable

21

NUT, SELF-LOCKING

95617-06100-00

$2.17

22

SPRING, COMPRESSION (2H7)

90501-10510-00

Unavailable
