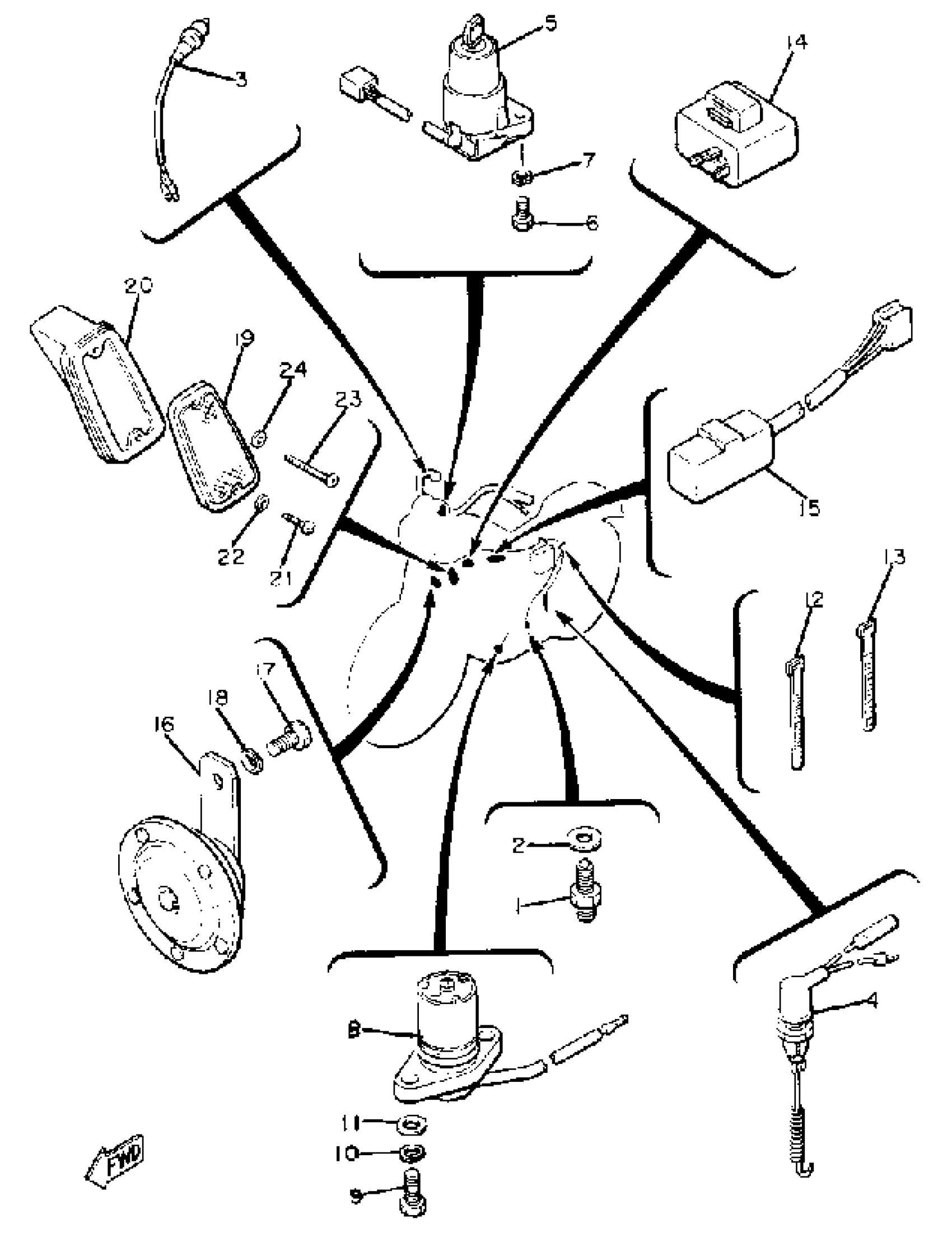

Find the part on the Electrical 2 diagram for your 1980 Yamaha XJ650 (XJ650G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha XJ650 (XJ650G) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NEUTRAL SWITCH ASSY

4GY-82540-10-00

1
Out of stock

2

GASKET (5R6)

90430-10171-00

1

$3.17

In stock

3

FRONT STOP SWITCH ASSY

26H-83980-00-00

1
Out of stock

4

STOP SWITCH ASSEMBLY (1E9-82530-00-00)

1E9-82530-02-00

1
Out of stock

5

MAIN SWITCH STEERING LOCK

3JV-82501-00-00

1
Out of stock

6

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

7

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

8

OIL LEVEL GAUGE ASSY

4H7-85720-02-00

—
Out of stock

9

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

10

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

11

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

12

BAND, SWITCH CORD

437-83936-11-00

1

$3.20

In stock

13

BAND, SWITCH CORD

25G-83936-01-00

1

$4.12

In stock

14

FLASHER RELAY ASSEMBLY

4H7-83350-70-00

1
Out of stock

15

FLASHER CANCELING UNIT

1A0-83395-03-00

1
Out of stock

16

HORN

1J7-83371-22-00

1
Out of stock

17

BOLT, HEXAGON

97017-08016-00

—
Out of stock

18

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

19

FRONT REFLECTOR ASSEMBLY

3G1-85110-00-00

1
Out of stock

20

BASE, REFLECTOR

(4H7-85127-00-00)

1
Out of stock

21

SCREW, PAN HEAD

98507-04018-00

—
Out of stock

22

WASHER, PLAIN (646)

92990-04600-00

—

$0.92

In stock

23

SCREW, PAN HEAD

98580-04540-00

—
Out of stock

24

WASHER, PLAIN (646)

92990-04600-00

—

$0.92

In stock
