1980 Yamaha XJ650 (XJ650G) Ac Generator Diagram

← All diagrams

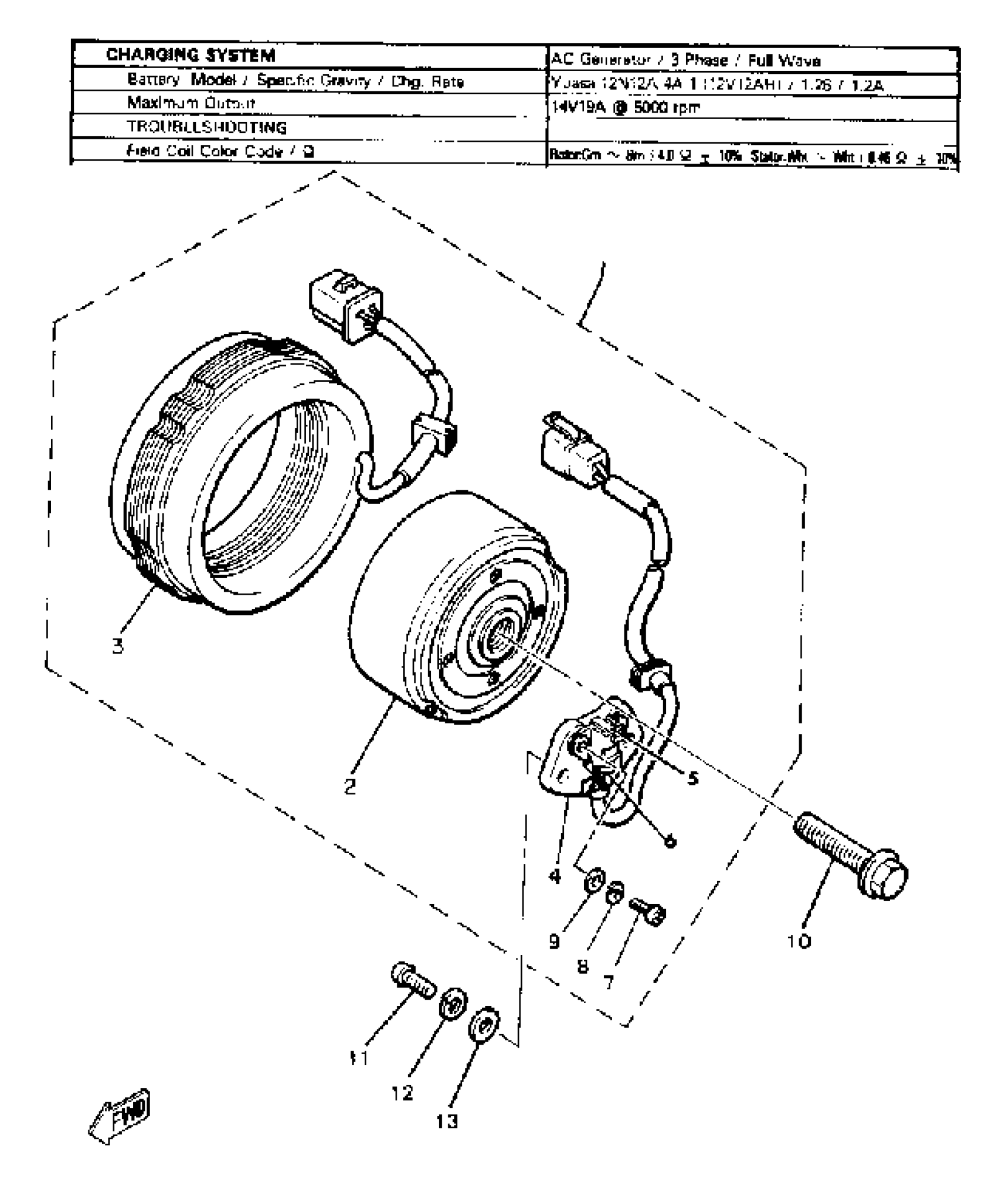

Find the part on the Ac Generator diagram for your 1980 Yamaha XJ650 (XJ650G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha XJ650 (XJ650G) Ac Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AC GENERATOR ASSEMBLY

(4H7-81600-10-00)

1
Out of stock

2

. ROTOR ASSEMBLY

4H7-81650-10-00

1
Out of stock

3

. STATOR ASSEMBLY

4H7-81610-10-00

1
Out of stock

4

. BRUSH HOLDER ASSEMBLY

4H7-81619-10-00

1
Out of stock

5

.. BRUSH 1

46X-81611-10-00

1
Out of stock

6

.. BRUSH 2

4G0-81612-10-00

1
Out of stock

7

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

8

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

9

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

10

BOLT, WASHER BASED (4H7)

90105-10152-00

1
Out of stock

11

SCREW, PAN

98507-06014-00

1

$6.18

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock
