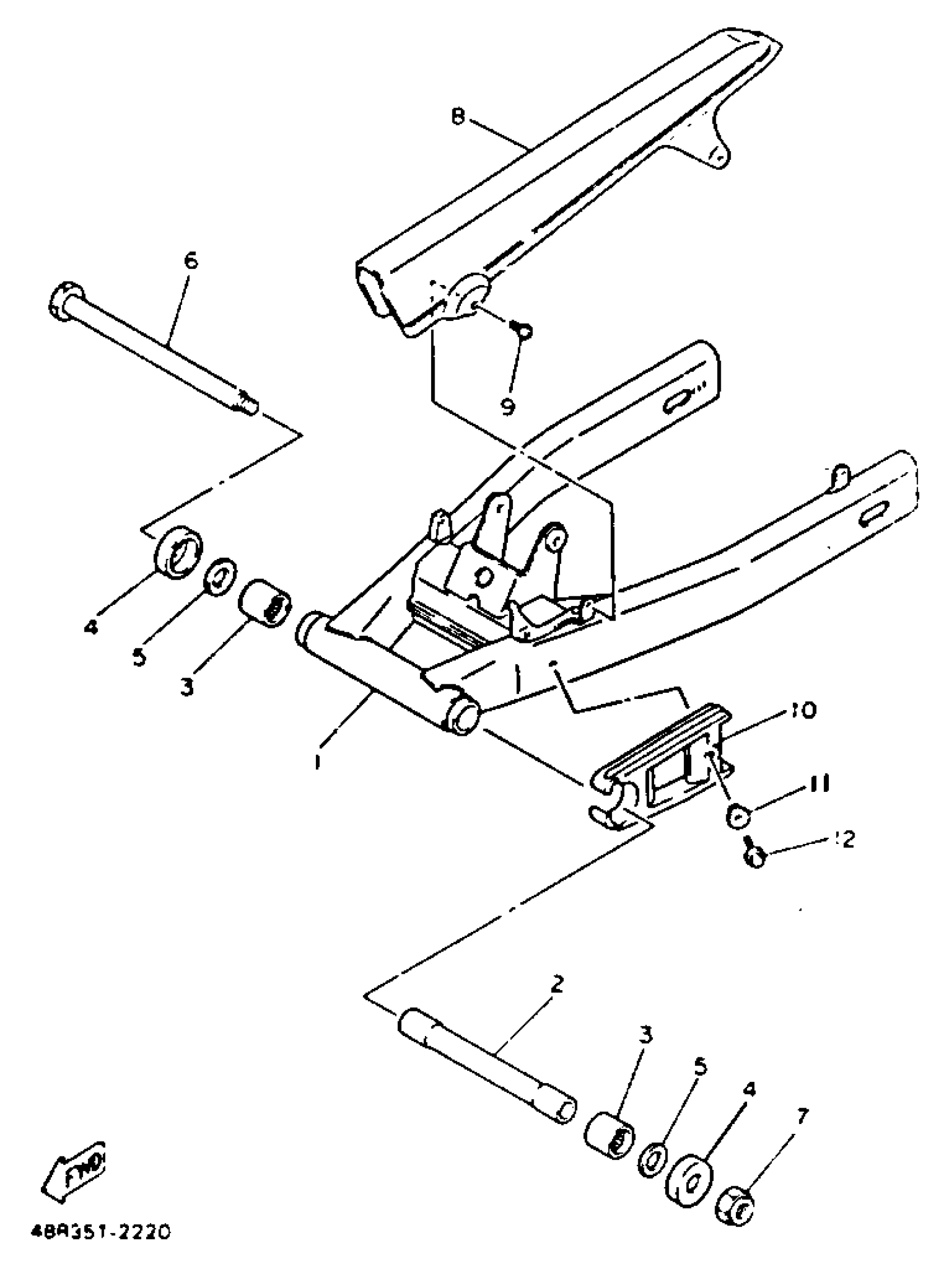

Yamaha XJ600SDC (SECA II CA) 1992 SWING ARM Diagram

#

Description
Price

1

REAR ARM

4BR-22110-01-WL

Unavailable

2

BUSH

33M-22184-00-00

Unavailable

3

BEARING (4X7)

93320-32403-00

$38.58

4

COVER, THRUST 2

4X7-22129-00-00

$18.61

5

WASHER, PLATE(48H)

90201-161J3-00

Unavailable

6

SHAFT, PIVOT

3LN-22141-60-00

Unavailable

7

NUT, SELF-LOCKING (1J7)

90185-14070-00

$10.29

8

CASE, CHAIN

1KT-22311-00-00

Unavailable

9

SCREW, W/WASHER (4L0)

90159-06060-00

$5.87

10

SEAL, GUARD

3YX-22151-00-00

Unavailable

11

COLLAR(4BP)

90387-083Y8-00

$5.24

12

BOLT, FLANGE

95817-06016-00

$1.49
