1992 Yamaha Seca II CA (XJ600SDC) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1992 Yamaha Seca II CA (XJ600SDC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

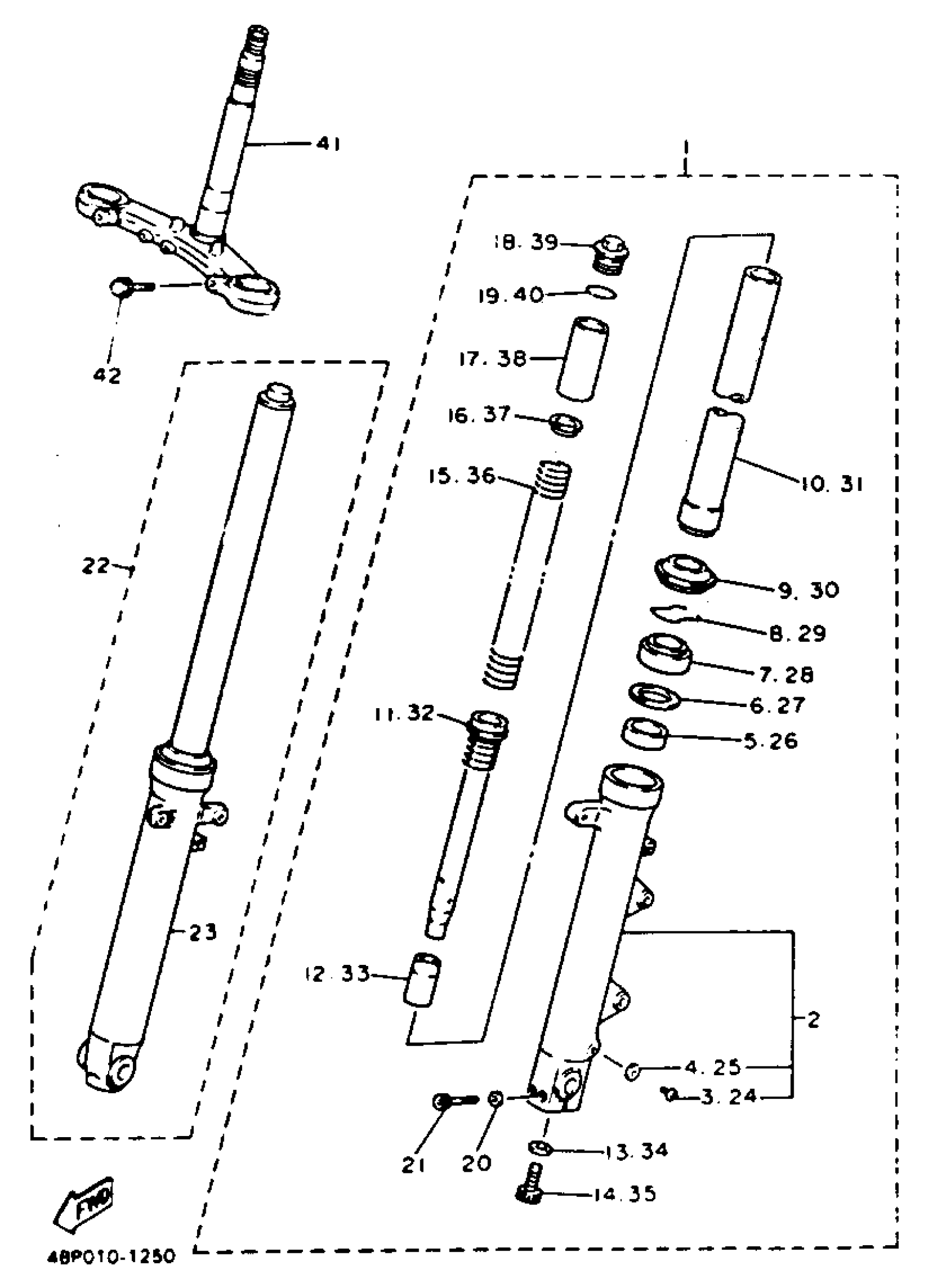

1992 Yamaha Seca II CA (XJ600SDC) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSY (L

4BR-23102-03-00

1
Out of stock

2

. TUBE, OUTER (LEFT)

4BP-23126-00-00

1
Out of stock

3

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

4

GASKET, DRAIN PLUG

122-23129-00-00

1

$6.37

In stock

5

METAL, SLIDE 1

2YK-23125-00-00

1
Out of stock

6

WASHER

4V2-23146-L0-00

1
Out of stock

7

OIL SEAL

3EN-23145-00-00

1

$22.96

In stock

8

RING, SNAP

3R4-23153-00-00

1

$7.51

In stock

9

SEAL, DUST

3EN-23144-01-00

1

$22.42

In stock

10

INNER TUBE COMP.1

3YX-23110-01-00

—

$268.86

In stock

11

. CYLINDER COMP, FRONT FORK

4BR-23170-00-00

1
Out of stock

12

SPINDLE, TAPER

2YK-23173-00-00

—
Out of stock

13

GASKET

509-23158-L0-00

1

$14.34

In stock

14

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

1

$7.65

In stock

15

. SPRING, FRONT FORK

4BP-23141-00-00

1
Out of stock

16

. SEAT, SPRING UPPER

1FK-23142-00-00

1
Out of stock

17

. SPACER

26H-23118-00-00

1
Out of stock

18

. BOLT, CAP

3EN-23111-00-00

1
Out of stock

19

O-RING

1W4-23114-L0-00

—

$7.45

In stock

20

WASHER PLATE 141181390000

90201-08085-00

—

$6.38

In stock

21

BOLT, SOCKET

91314-08035-00

—
Out of stock

21

BOLT, SOCKET

91314-08035-00

—
Out of stock

22

FRONT FORK ASY RH

4BR-23103-03-00

1
Out of stock

23

. TUBE, OUTER (RIGHT)

4BP-23136-00-00

1
Out of stock

24

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

25

GASKET, DRAIN PLUG

122-23129-00-00

1

$6.37

In stock

26

METAL, SLIDE 1

2YK-23125-00-00

1
Out of stock

27

WASHER

4V2-23146-L0-00

1
Out of stock

28

OIL SEAL

3EN-23145-00-00

1

$22.96

In stock

29

RING, SNAP

3R4-23153-00-00

1

$7.51

In stock

30

SEAL, DUST

3EN-23144-01-00

1

$22.42

In stock

31

INNER TUBE COMP.1

3YX-23110-01-00

—

$268.86

In stock

32

. CYLINDER COMP, FRONT FORK

4BR-23170-00-00

1
Out of stock

33

SPINDLE, TAPER

2YK-23173-00-00

—
Out of stock

34

GASKET

509-23158-L0-00

1

$14.34

In stock

35

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

1

$7.65

In stock

36

. SPRING, FRONT FORK

4BP-23141-00-00

1
Out of stock

37

. SEAT, SPRING UPPER

1FK-23142-00-00

1
Out of stock

38

. SPACER

26H-23118-00-00

1
Out of stock

39

. BOLT, CAP

3EN-23111-00-00

1
Out of stock

40

O-RING

1W4-23114-L0-00

—

$7.45

In stock

41

UNDER BRACKET COMP.

4BP-23340-10-00

1
Out of stock

42

BOLT 2

2NX-23356-00-00

—
Out of stock
