1992 Yamaha Seca Ii CA (XJ600SDC) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1992 Yamaha Seca Ii CA (XJ600SDC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

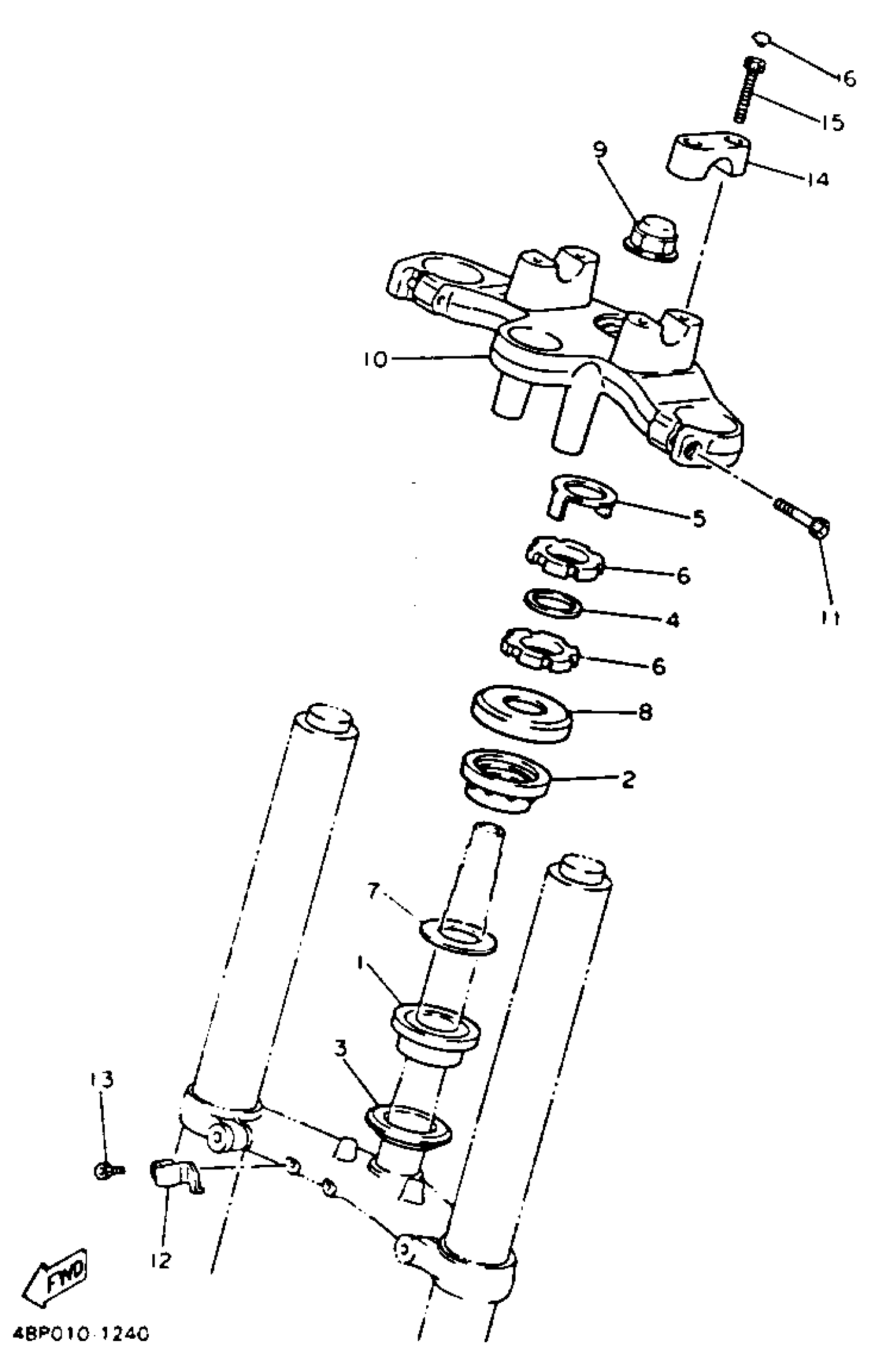

1992 Yamaha Seca Ii CA (XJ600SDC) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BEARING(3FV)

93399-99931-00

1

$49.35

In stock

2

BEARING(3FV)

93399-99932-00

1

$55.01

In stock

3

SEAL, STEERING

3FV-23462-00-00

1

$21.37

In stock

4

WASHER, PLATE(3FV)

90202-24190-00

1
Out of stock

5

WASHER, SPECIAL

26H-23418-01-00

1

$12.68

In stock

6

NUT

90179-25004-00

1

$20.78

In stock

7

WASHER, PLATE (26H)

90202-26142-00

1

$8.06

In stock

8

COVER, BALL RACE 2

1W1-23416-00-00

—

$25.83

In stock

9

NUT, CROWN(4FM)

90176-22081-00

1
Out of stock

10

CROWN, HANDLE

4BP-23435-01-00

1
Out of stock

11

BOLT,SOCKET

91314-08030-00

1

$2.29

In stock

12

HOLDER, BRAKE HOSE

4BP-25886-00-00

1
Out of stock

13

BOLT,SOCKET

91317-06016-00

1

$1.16

In stock

14

HOLDER, HANDLE UPPER

4H7-23441-01-P0

1
Out of stock

15

BOLT,SOCKET

91314-08030-00

1

$2.29

In stock

16

CAP, BOLT (371,447)

341-23469-00-00

—

$8.55

In stock
