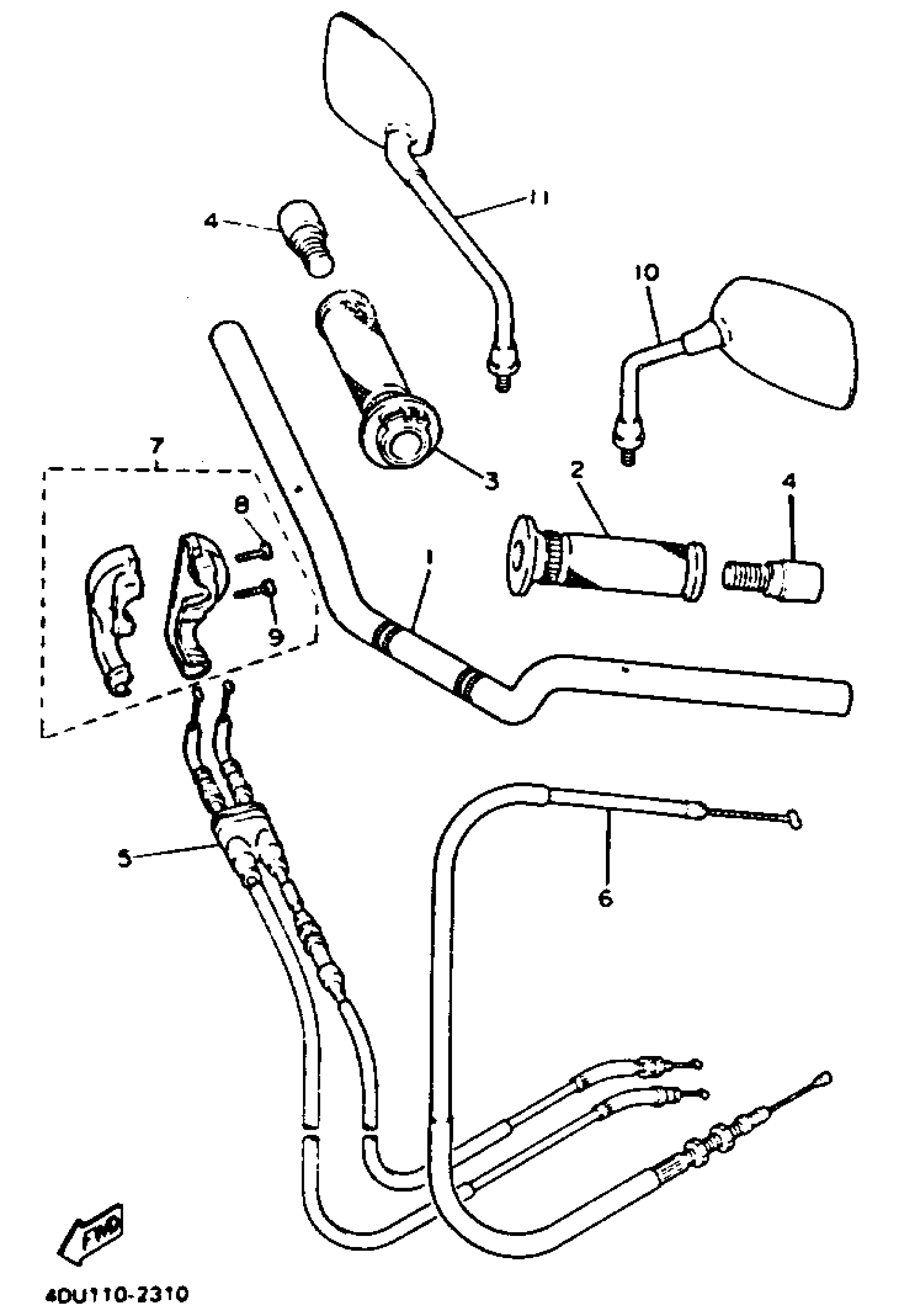

Yamaha XJ600SDC (SECA II CA) 1992 HANDLEBAR CABLE Diagram

#

Description

Price

1

HANDLEBAR

4BP-26111-01-00

Unavailable

2

GRIP (L.H)

31A-26241-00-00

$33.35

3

GRIP ASSY

36Y-26240-00-00

Unavailable

4

END, GRIP

51J-26246-01-00

$66.72

5

THROTTLE CABLE ASSEMBLY

4DU-26302-00-00

Unavailable

6

CABLE, CLUTCH

4BP-26335-00-00

Unavailable

7

CABLE CONNECTOR CAP ASSEMBLY

4BP-26270-00-00

Unavailable

8

SCREW, PAN HEAD

98517-05020-00

$1.49

9

SCREW, PAN HEAD(4MY)

98507-05025-00

$5.88

10

REAR VIEW MIRROR ASSY(LEFT)

4BR-26280-00-00

Unavailable

11

REAR VIEW MIRROR ASSY(RIGHT)

4BR-26290-00-00

Unavailable
