1981 Yamaha XJ550R (XJ550RH) Headlight Diagram

← All diagrams

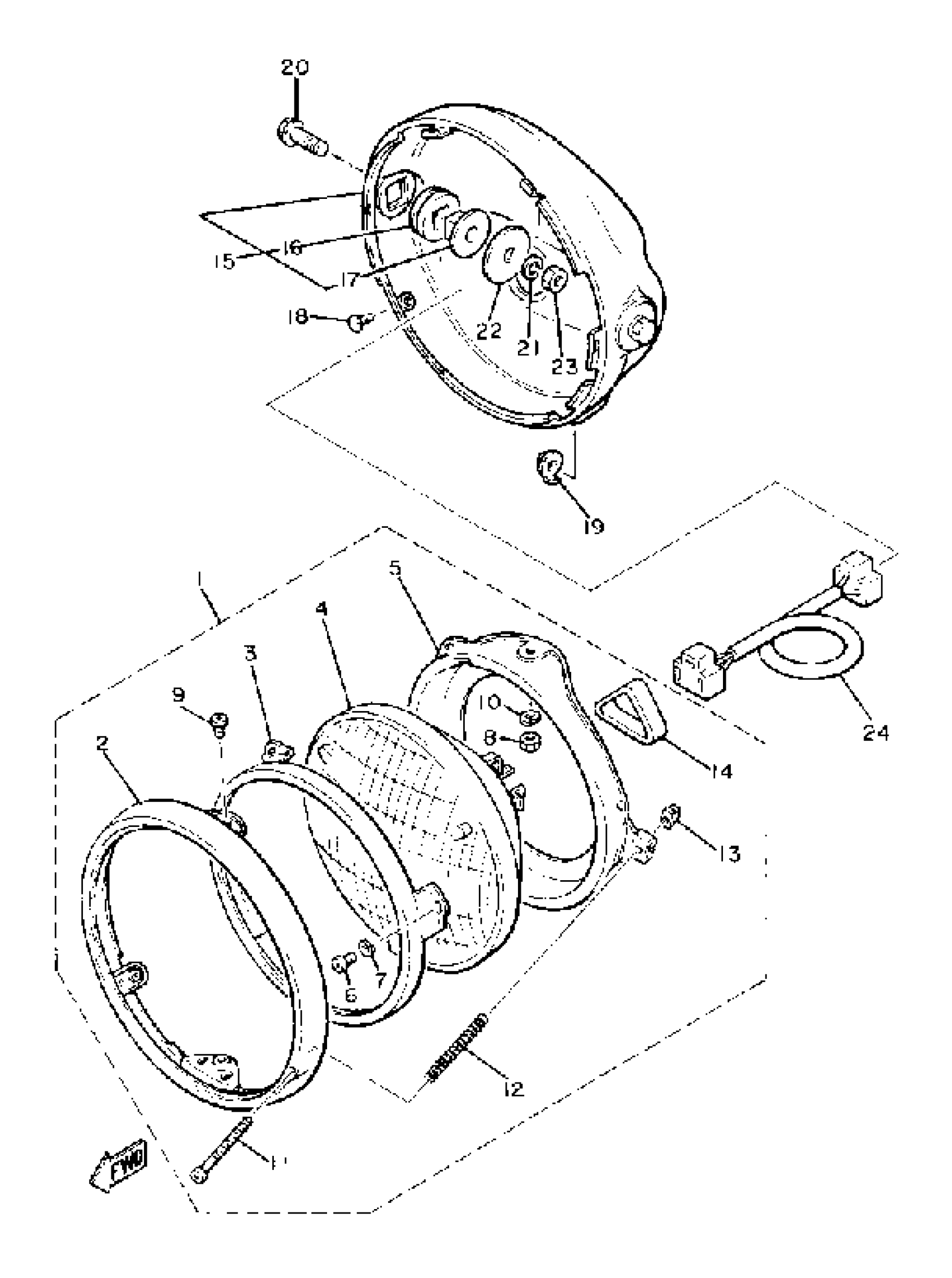

Find the part on the Headlight diagram for your 1981 Yamaha XJ550R (XJ550RH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XJ550R (XJ550RH) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSEMBLY

2J2-84310-60-00

1
Out of stock

2

RIM, HEAD LAMP

341-84315-40-00

1
Out of stock

3

RING, RETAINING

2F9-84395-00-00

1
Out of stock

4

. LENS ASSEMBLY

341-84320-60-00

1
Out of stock

5

RING, MOUNTING

2F9-84394-00-00

—
Out of stock

6

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

7

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

8

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

9

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

10

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

11

SCREW, PANHEAD (4G7)

98580-04055-00

—

$7.02

In stock

12

SPRING, ADJUST

341-84332-60-00

1

$8.54

In stock

13

NUT, ADJUST

198-84334-60-00

1

$6.43

In stock

14

. COVER, SOCKET

341-84397-61-00

1
Out of stock

15

BODY ASSEMBLY

4G0-84330-00-93

1
Out of stock

16

DAMPER, HEAD LAMP

584-84345-60-00

—
Out of stock

17

COLLAR 2

584-84338-60-00

—
Out of stock

18

SCREW, OVAL HEAD (1A0)

90152-05005-00

—

$2.82

In stock

19

WASHER, SPECIAL

4K0-84327-00-00

1
Out of stock

20

BOLT, SMALL FLANGE

95027-08030-00

—
Out of stock

21

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

22

WASHER

90209-08008-00

—
Out of stock

23

NUT(6L2)

95333-08600-00

—

$3.20

In stock

24

CORD, HEADLIGHT

2H7-84359-00-00

1
Out of stock
